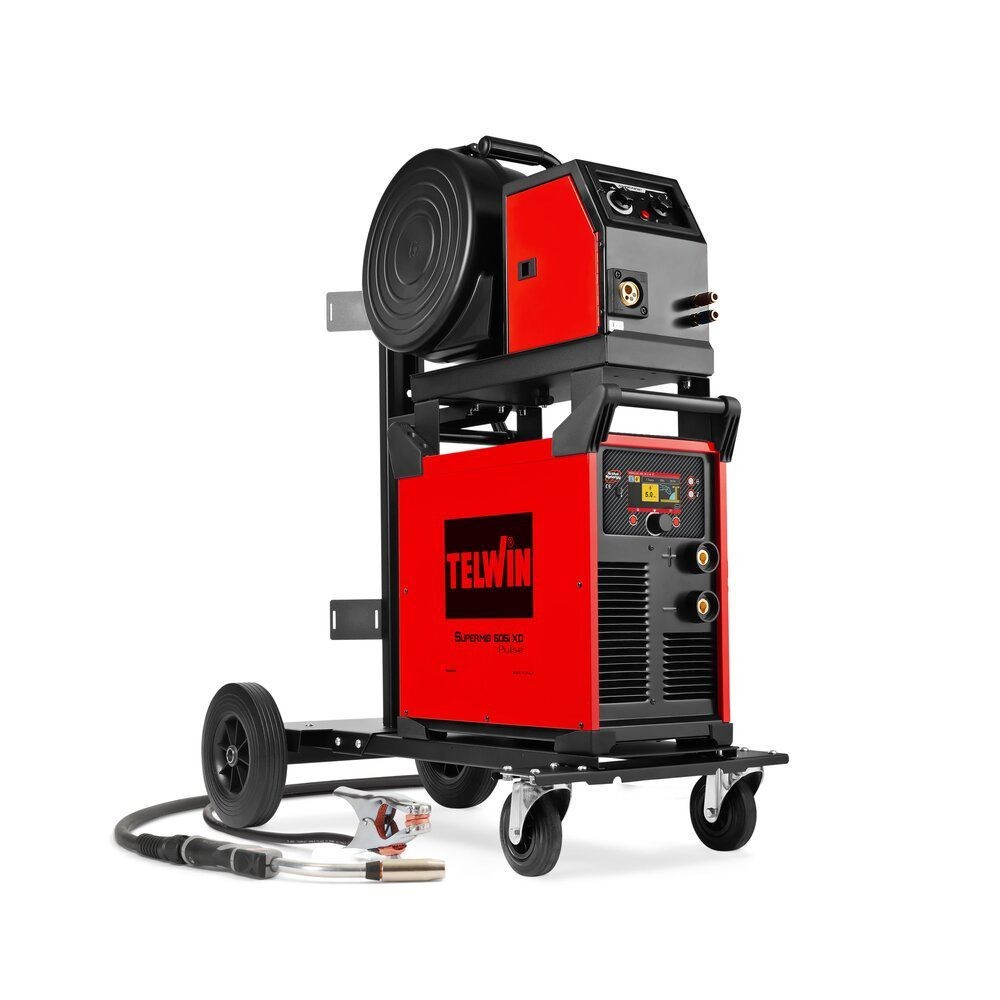

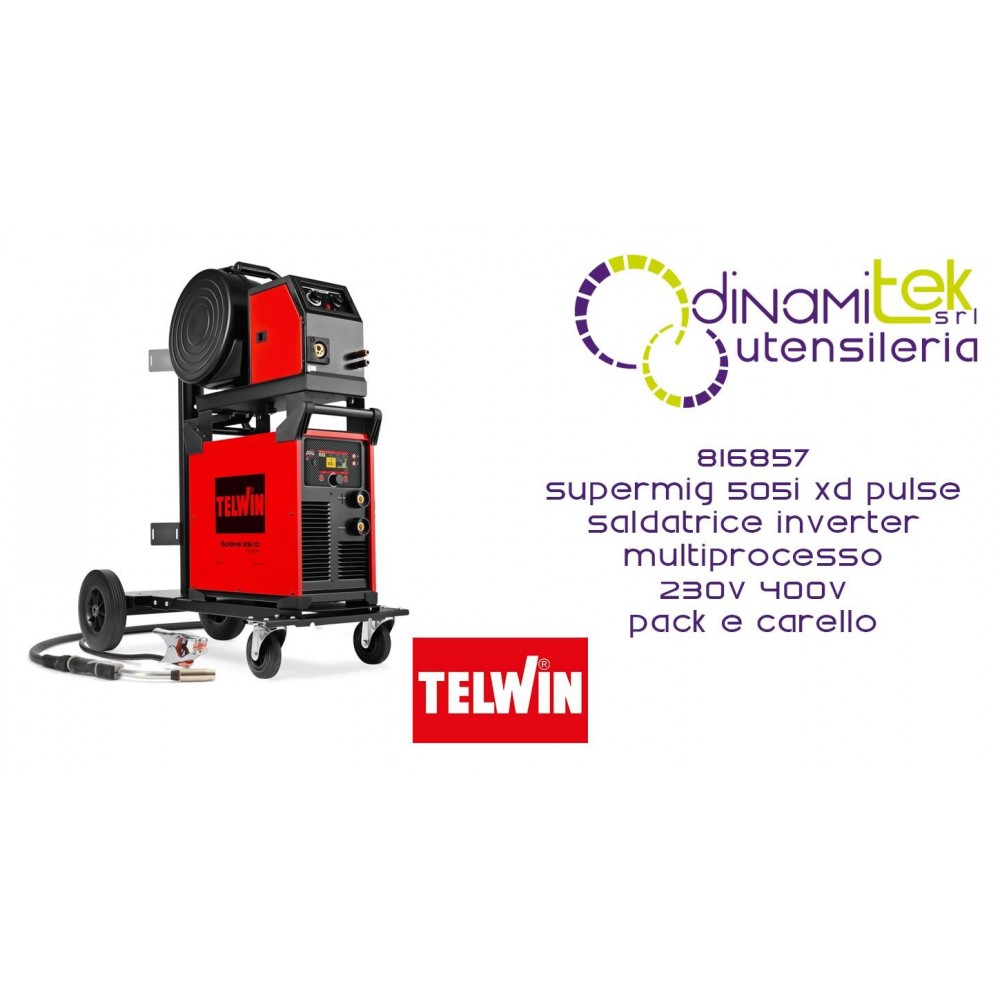

816857 SUPERMIG 505I XD PULSE MULTIPROCESS INVERTER WELDING MACHINE 230V 400V PACK AND TROLLEY TELWIN

WAVE OS industrial intelligence meets maximum professional mobility! The Telwin Supermig 505i XD Pulse Pack + Cart (code 816857) is the 400A multi-process inverter welding system designed to operate at the highest levels in every corner of the workshop. Thanks to XD (eXtra Duty) technology for intense duty cycles and the WAVE OS operating system, you will have total control over MIG-MAG, MMA and TIG DC-Lift processes, with the possibility of tracking every operation via USB. This complete configuration includes the external 4-roll wire feed unit and the robust Federal cart , ensuring unprecedented operational flexibility on aluminum, stainless steel and high-strength steels.

Shipping cost: €50.00 for
4722,55 €
Tax included

3.870,95 € Tax excluded

Quantity
Available product, order it now.

Telwin Supermig 505i XD Pulse: The Integrated System for Industry 4.0

The Model 816857 is more than just a soldering iron; it's an advanced, mobile workstation that redefines industrial productivity standards. The system is built to withstand shock and dust, incorporating a dedicated ventilation tunnel that protects sensitive electronic components for longer life.

Wave OS Evolution and Pulsed Welding

  • WAVE OS Operating System: Offers an intuitive color TFT graphic interface with EASY (quick setup) and EXPERT modes (customization of 18 advanced parameters such as ramps, pre/post gas and start/end currents).
  • Pulsed and POP (Pulse on Pulse): Ideal technologies for aluminum and stainless steel that reduce heat input and projections, guaranteeing aesthetic results comparable to TIG with wire speed.
  • USB Traceability: Allows you to export and analyze welding data for quality control and job reporting.

Pack + Cart Configuration: Maximum Operation

  • External Wire Feeder TS 555: The 4-roller unit ensures constant wire feed and allows for remote operation from the generator thanks to the 4-metre cable bundle.
  • Advanced Thermal Control (ATC): Telwin technology specifically for welding ultra-thin sheet metal (0.5-0.8 mm), which prevents thermal deformations of the material.
  • Federal Mobility: The included Federal cart allows for easy movement of the power source, wire feeder, and gas cylinder, making the system perfect for heavy-duty carpentry.

Main Technical Specifications

  • Product code: 816857.
  • Power supply: Three-phase 230 / 400 V.
  • Current regulation range: 20 - 400 A (at 400V).
  • Maximum current (EN 60974-1): 400 @ 60% A.
  • Ø MMA electrodes: from 1.6 to 8 mm.
  • Dimensions and Weight: 100 x 50 x 110 cm | 74.90 kg.
  • Degree of protection: IP23.

System Composition

The kit comes ready to use with:

  • Supermig 505i XD Pulse generator (code 816917).
  • Wire feed unit TS 555 with connection cables (code 806176).
  • 4 meter MT40S MIG-MAG torch (code 802743).
  • Federal trolley (code 803091).
  • Ground cable and clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
