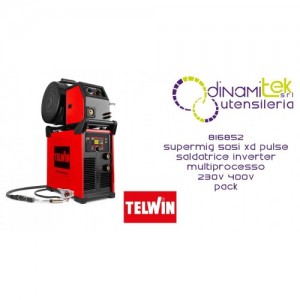

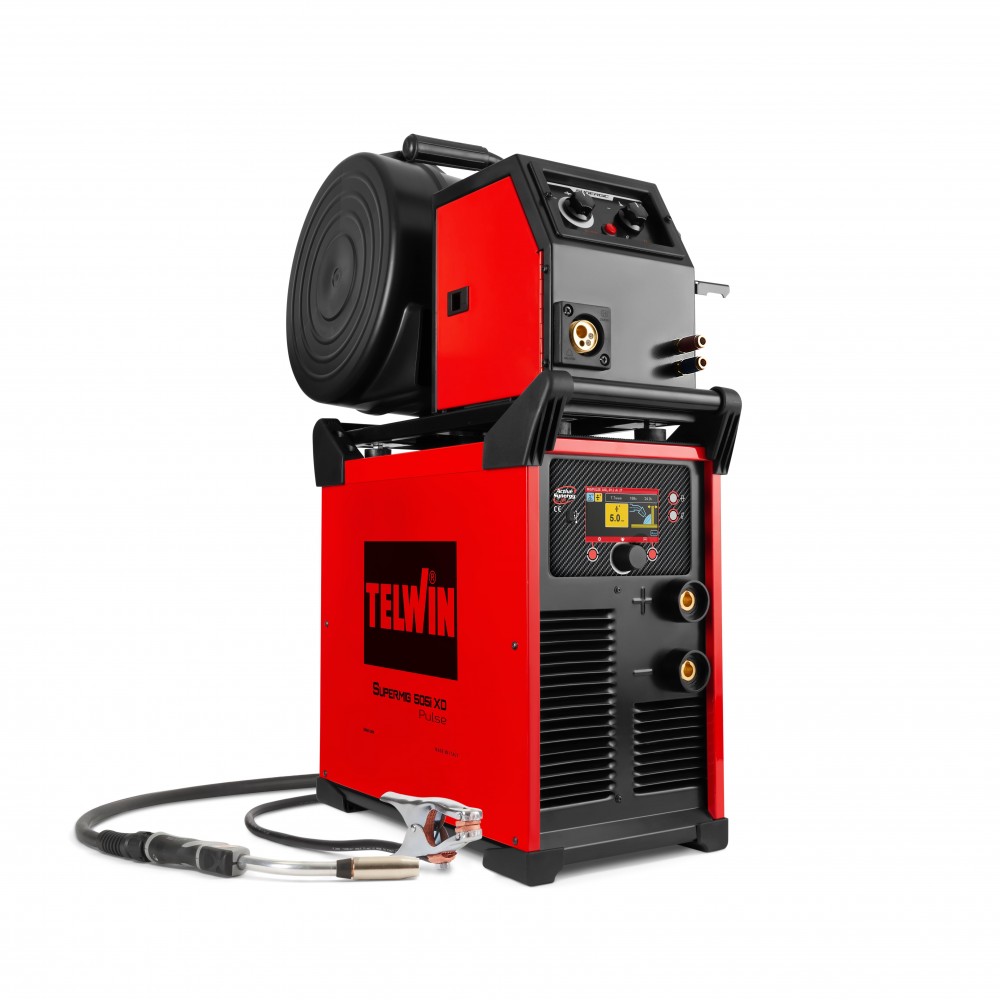

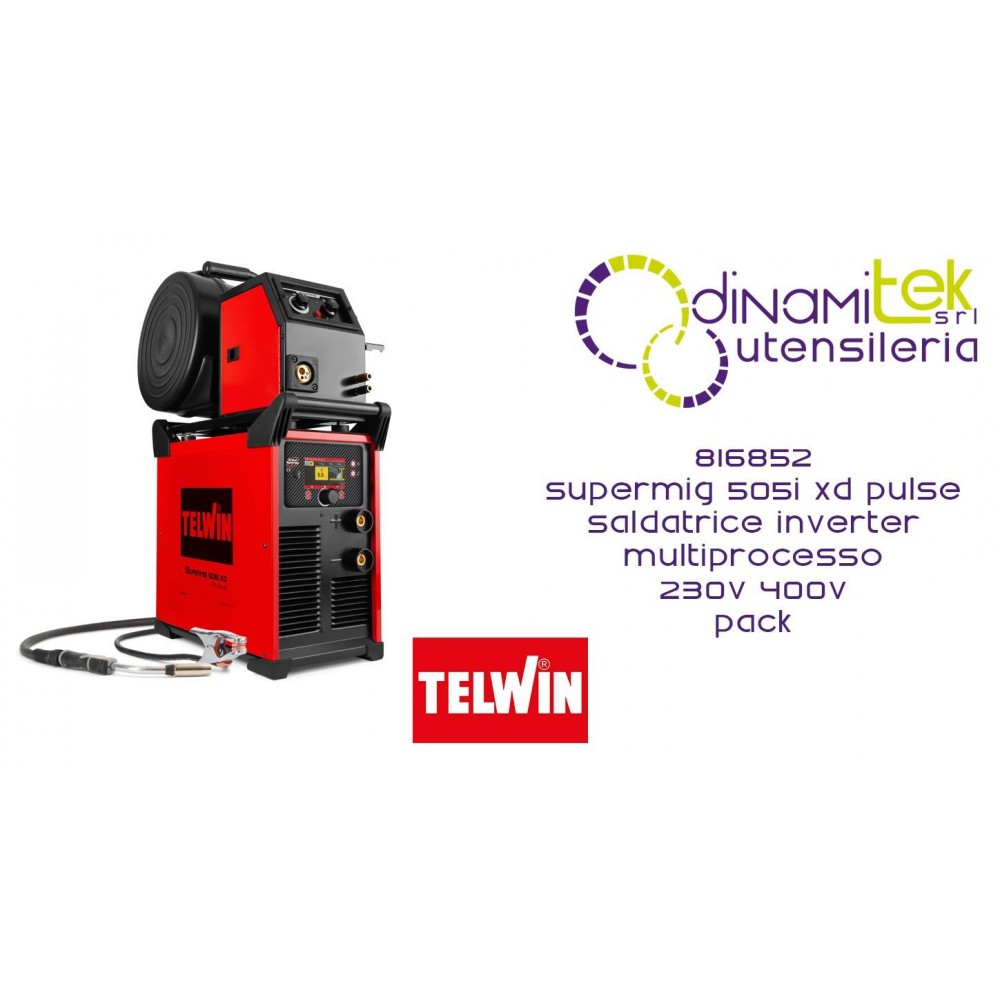

TELWIN 816852 SUPERMIG 505i XD PULSE SALDATRICE INVERTER MULTIPROCESSO 230V 400V PACK Dinamitek 1
  • TELWIN 816852 SUPERMIG 505i XD PULSE SALDATRICE INVERTER MULTIPROCESSO 230V 400V PACK Dinamitek 1
  • TELWIN 816852 SUPERMIG 505i XD PULSE SALDATRICE INVERTER MULTIPROCESSO 230V 400V PACK Dinamitek 2

816852 SUPERMIG 505I XD PULSE MULTIPROCESS INVERTER WELDING MACHINE 230V 400V PACK TELWIN

Industrial intelligence meets pulsed power in a complete "eXtra Duty" system! The Telwin Supermig 505i XD Pulse Pack (code 816852) is the 400A inverter welding station designed for the toughest challenges of Industry 4.0. Thanks to the WAVE OS operating system and the external 4-roller wire feed unit, it offers total and customizable control over each process (MIG-MAG, MMA, TIG DC-Lift). Featuring XD (eXtra Duty) technology for extreme duty cycles and the Pulsed/POP mode for impeccable aesthetic results on aluminum and stainless steel, it is the definitive solution for heavy carpentry that requires precision, data traceability and absolute robustness.

Shipping cost: €50.00 for
4347,86 €
Tax included

3.563,82 € Tax excluded

Quantity
Available product, order it now.

Telwin Supermig 505i XD Pulse Pack: Power, Intelligence, and Traceability

The Supermig 505i XD Pulse Pack system is not just a power source, but an advanced multi-process welding ecosystem. The Pack configuration includes an external wire feeder that allows for easy operation even remotely from the power source, while maintaining superior arc stability thanks to the 4 feed rollers.

WAVE OS System: Custom and Analyzable Welding

  • Advanced Control: The WAVE OS interface offers EASY (quick synergic setup) and EXPERT modes (total customization of 18 advanced parameters such as start/end currents, ramps and pre/post gas).
  • Quality Traceability: Through the USB port it is possible to record, analyse and export welding data, essential for industrial quality control.
  • Pulsed and POP (Pulse on Pulse): Technologies designed to reduce heat input and projections, ensuring clean beads and high penetration on sensitive materials.

"eXtra Duty" Reliability and ATC Technology

  • XD (eXtra Duty): Version certified for a high duty cycle , designed to withstand continuous and heavy-duty operations in hostile environments.
  • Advanced Thermal Control (ATC): Proprietary technology that facilitates the welding of ultra-thin sheet metal (0.5-0.8 mm), preventing thermal deformations.
  • Ventilation Tunnel: The structure is designed with a dedicated tunnel that isolates sensitive electronic components from dust and conductive metallic dirt.

Main Technical Specifications

  • Product code: 816852.
  • Power supply: Three-phase 230 / 400 V.
  • Current regulation range: 20 - 400 A.
  • Maximum current (EN 60974-1): 400 @ 60% A.
  • Wire diameter: Steel (0.6-1.6 mm), Stainless steel (0.8-1.6 mm), Aluminium (0.8-1.6 mm).
  • Dimensions and Weight: 54.6 x 27.4 x 86 cm | 51.69 kg.
  • Degree of protection: IP23.

Composition of the PACK

The machine is supplied complete with all the components necessary for immediate operation:

  • Supermig 505i XD Pulse generator (code 816917).
  • External wire feed unit TS 555 with 4 rollers and 4 meter cable bundle (code 806176).
  • 4 meter MT40S MIG-MAG torch (code 802743).
  • Ground cable and clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
