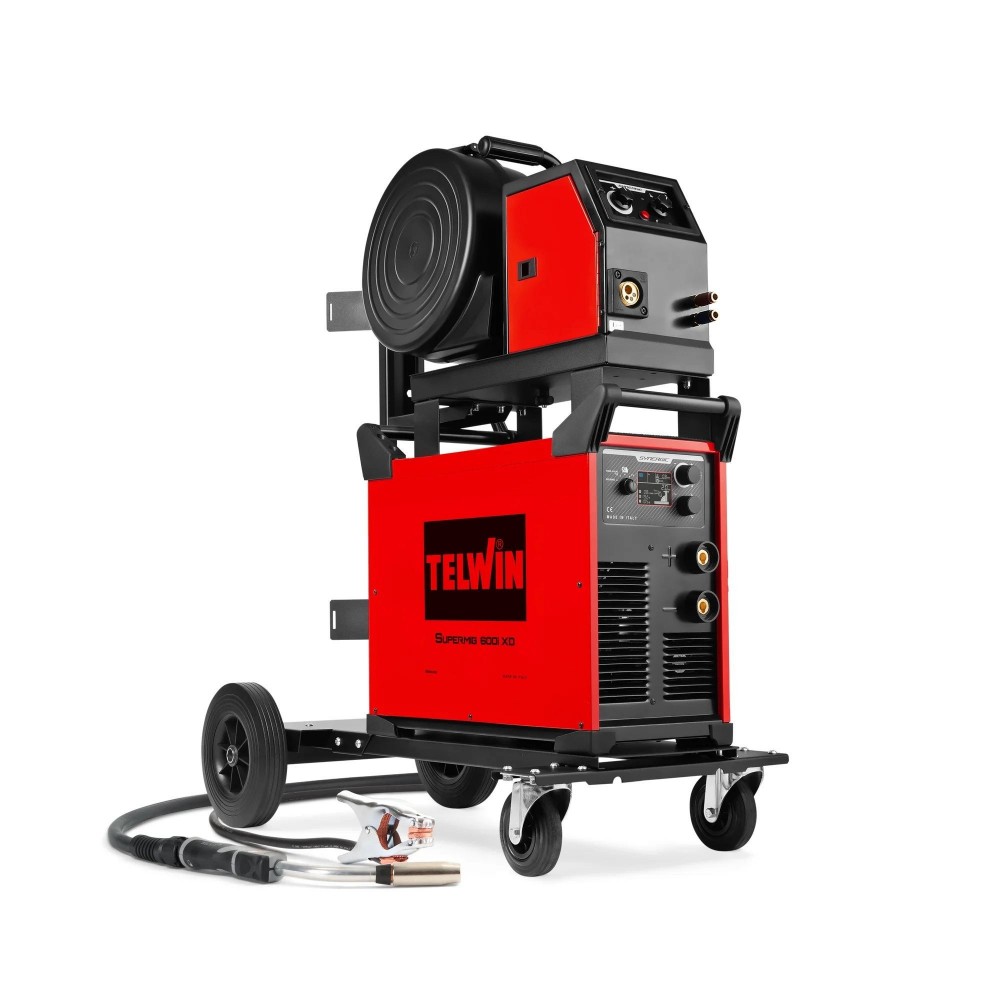

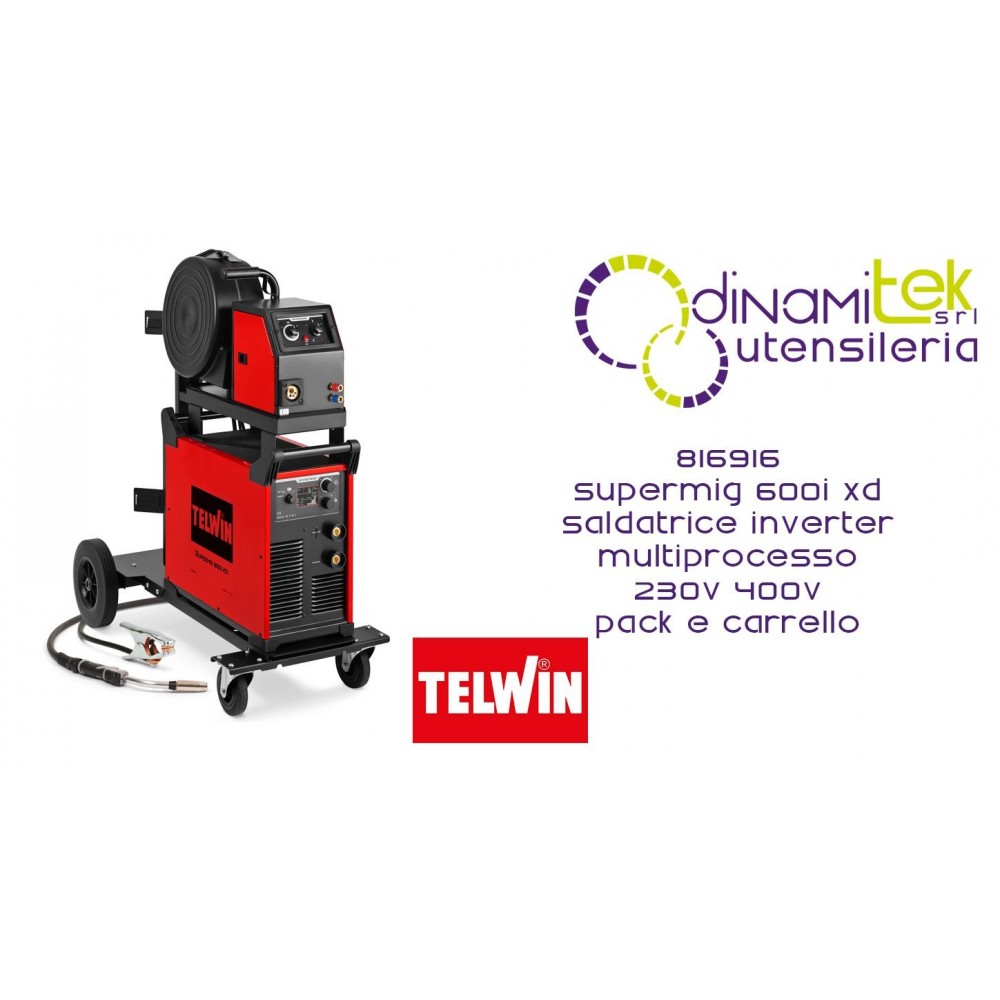

816916 SUPERMIG 600I XD MULTIPROCESS INVERTER WELDING MACHINE 230V 400V PACK AND TROLLEY TELWIN
The "Multiprocess Superhero" in its most complete and mobile version! The Telwin Supermig 600i XD PACK + TROLLEY (code 816916) is the ultimate 500A three-phase (230V/400V) inverter welding station for heavy carpentry and industry. Thanks to XD (eXtra Duty) technology, it guarantees an extremely high duty cycle for continuous, non-stop work [1, 4]. This "all-inclusive" package combines the precision of the OneTouch LCD system with the power of a 4-roller wire feed unit and the convenience of the Federal trolley , allowing you to manage MIG-MAG, pulsed MMA, TIG DC-Lift and professional gouging wherever you need to intervene.
Telwin Supermig 600i XD PACK + TROLLEY: Total Power and Industrial Mobility
The Supermig 600i XD in the Pack + Cart configuration is a microprocessor-based inverter system that offers absolute versatility on steel, stainless steel, aluminum, and high-strength steels. It is designed to withstand the most hostile environments thanks to the dedicated tunnel ventilation system, which isolates the electronic components from dust and dirt.
OneTouch Technology and ATC Control
- OneTouch Adjustment: Drastically simplifies operation: simply set the material thickness and the machine manages the arc in real time by automatically loading one of the 40 preset synergic curves .
- ATC (Advanced Thermal Control) Technology: Ideal for welding thin surfaces, it reduces heat input and minimizes material deformations thanks to advanced arc control.
- External Wire Feeder TS 550: Equipped with a 4-roller system and 4-meter cable bundle, it allows for smooth wire feeding and remote control of the generator.
Advanced Features for the Professional
- MMA Pulse and Gouging: Supports pulsed MMA welding to reduce spatter and improve the weld seam. Includes professional gouging function with carbon electrodes.
- Safety and Protection: Integrates VRD device for safety in humid environments and multiple protections against overvoltage (+15%), undervoltage (-25%) and overcurrent.
- Federal Cart: Designed specifically to accommodate the generator and cylinder, ensuring stability and ease of movement around the shop or job site.
Main Technical Specifications
- Product code: 816916.
- Power supply: Three-phase 230 / 400 V.
- Maximum current (EN 60974-1): 500 @ 60% A.
- Current regulation range: 20 - 600 A.
- Ø Usable MMA electrodes: from 1.6 to 8 mm.
- Dimensions and Weight: 100 x 50 x 110 cm | 82 kg.
- Degree of protection: IP23.
System Composition
The set comes complete with:
- Supermig 600i XD generator (code 816913).
- Wire feed unit TS 550 with connection cables (code 806172).
- 4 meter MT40S MIG-MAG torch (code 802743).
- Federal trolley (code 803091).
- Ground cable and clamp.
TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963
Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.
The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.
The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.
Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.
Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
816916
