TELWIN 816914 SUPERMIG 600i XD SALDATRICE INVERTER MULTIPROCESSO 230V 400V PACK Dinamitek 1

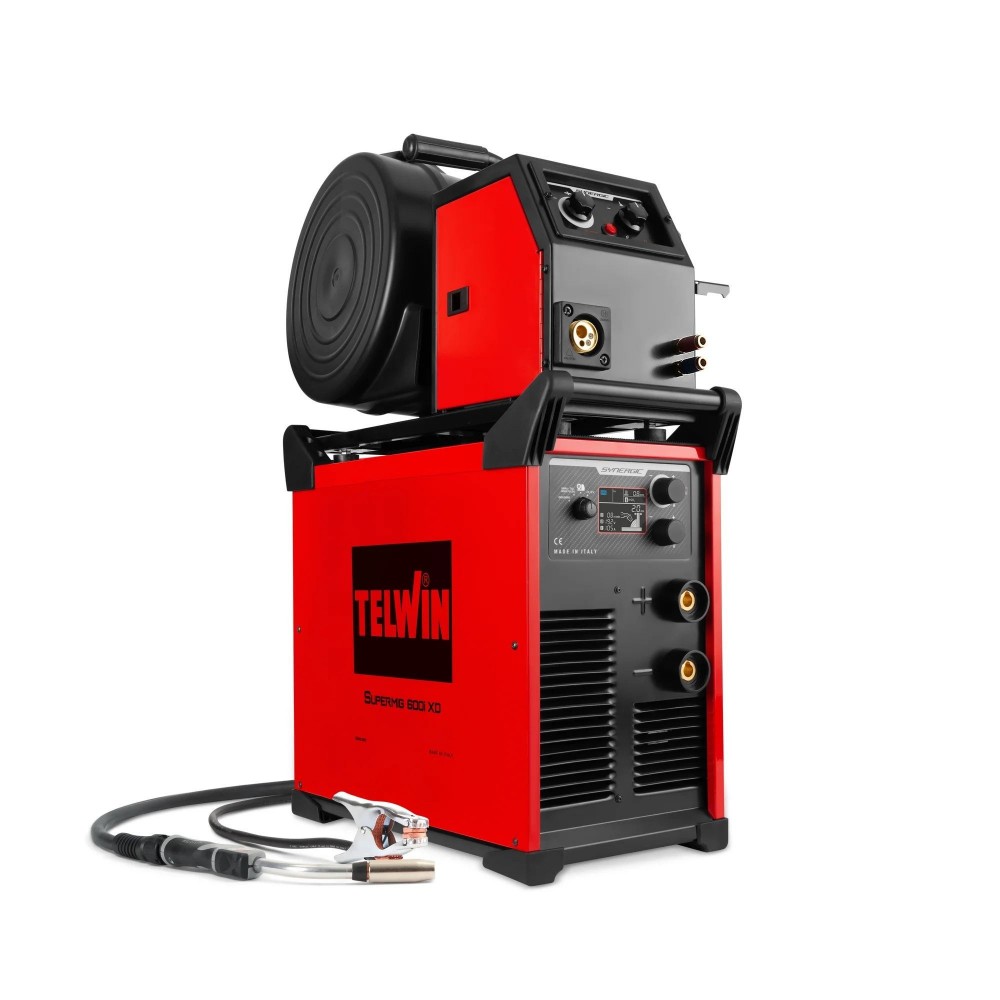

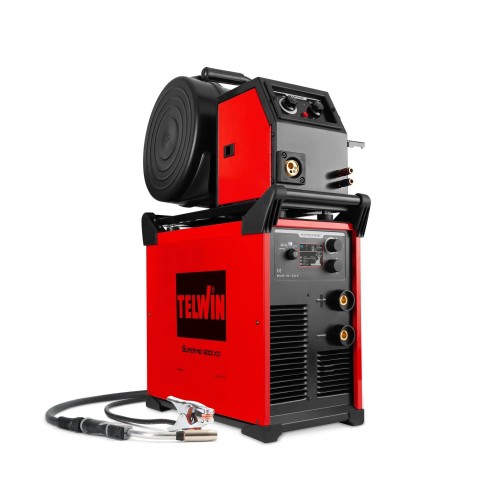

816914 SUPERMIG 600I XD MULTIPROCESS INVERTER WELDING MACHINE 230V 400V PACK TELWIN

The "Multiprocess Superhero" in its most complete and powerful configuration! The Telwin Supermig 600i XD PACK (code 816914) is the ultimate three-phase inverter welding station (230V/400V), designed for heavy carpentry and the most demanding industrial applications. Thanks to XD (eXtra Duty) technology, it offers an extremely high duty cycle for continuous work without interruptions. In this PACK version, the 500A power is combined with an external 4-roller wire feed unit and maximum operational flexibility: MIG-MAG, MMA (also pulsed), TIG DC-Lift and professional gouging, all in a single robust and dust-resistant system thanks to the dedicated ventilation tunnel.

Shipping cost: €50.00 for

4781,79 €

Tax included

3.919,50 € Tax excluded

Quantity

Available product, order it now.

Description
Product Details

Telwin Supermig 600i XD PACK: Industrial Excellence and Total Versatility

The Supermig 600i XD PACK is a multi-process microprocessor inverter system designed for those who refuse to compromise between power and precision. The system operates effectively on materials such as steel, stainless steel, high-strength steels, and aluminum, ensuring high-quality results even in the most hostile work environments.

XD Technology and OneTouch Control

eXtra Duty (XD): Designed to withstand intense and continuous workloads, ensuring superior reliability in industrial applications.
OneTouch Synergic Adjustment: Drastically simplifies setup. Simply set the material thickness and the machine automatically loads one of 40 preset synergic curves , managing the arc in real time.
Advanced Thermal Control (ATC): Telwin technology that facilitates welding on thin surfaces, reducing material deformations thanks to millimetric control of the heat input.

Multiprocessing Power and Advanced Features

External Wire Feed Unit: The system includes the 4-roller TS 550 wire feeder, ideal for ensuring smooth wire feeding even with long torches or when working far from the generator.
MMA Pulse and Gouging: The pulsed mode in MMA reduces spatter and improves arc control with basic electrodes [7]. The gouging function with carbon electrodes allows for rapid metal removal.
Built-in Safety: Equipped with VRD device for safe working in humid environments and complete protections against overvoltage, undervoltage and overcurrent.

Main Technical Specifications

Product code: 816914.
Power supply: Three-phase 230 / 400 V.
Maximum current (EN 60974-1): 500 @ 60% A.
Current regulation range: 20 - 600 A.
Ø MMA electrodes: from 1.6 to 8 mm.
Dimensions and Weight: 63 x 27.4 x 86 cm | 59 kg.
Degree of protection: IP23.

Equipment Included in the PACK

The system comes ready to use with:

MIG-MAG torch MT40S (4 meters).
External wire feed unit TS 550 with connection cables (70mm² - 4m).
Ground cable and clamp.

A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.

Reference 816914
