Metrological Precision and Robustness borletti

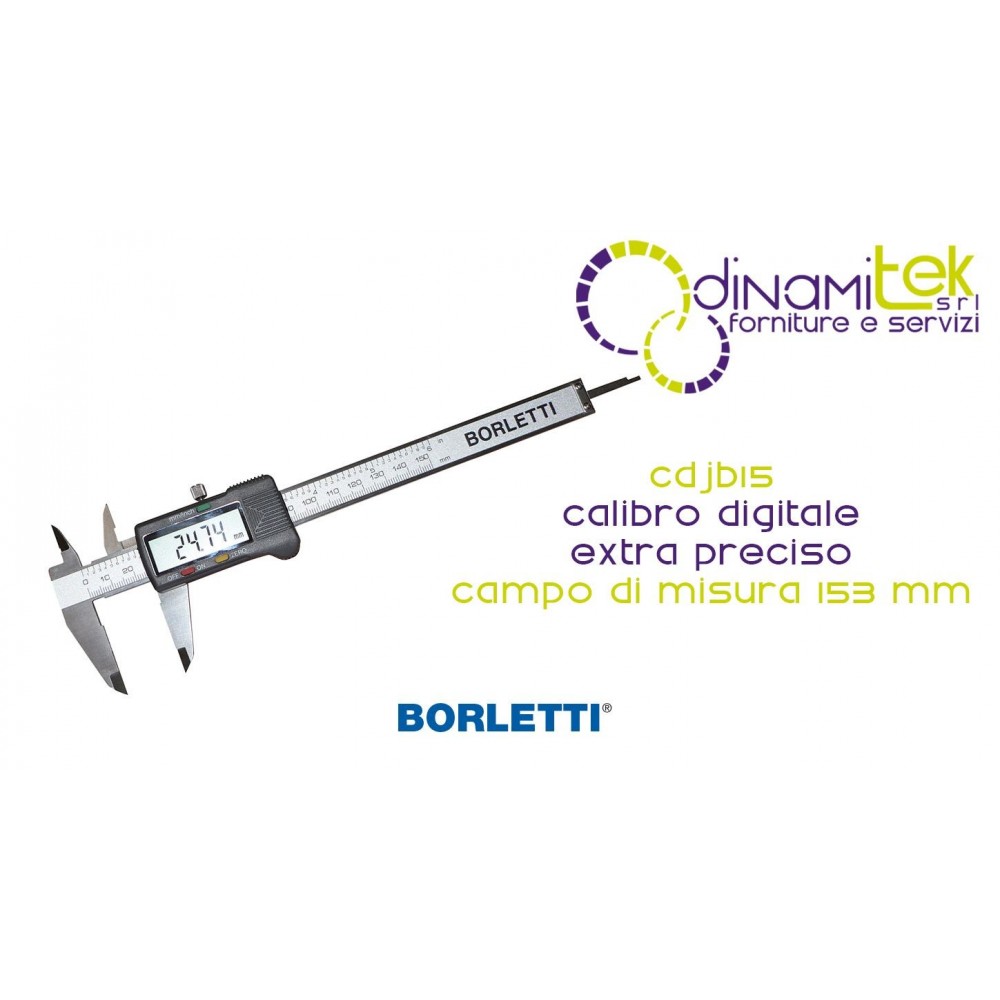

The CDJB15 (BORCDJB15) is part of the "Extra Precise" line of calipers designed for the mechanical engineering industry and precision workshops. The combination of high-quality materials such as stainless steel and advanced electronics allows for consistent and repeatable results at every stage of quality control.
Technological Advantages and Features
- Instant Readability: The large LCD display dramatically reduces human reading error, allowing you to instantly view data with 12mm digits.
- Smooth Mechanics: Designed for a sliding speed greater than 1 m/sec , the instrument offers a constant, friction-free slide movement thanks to the integrated adjustment roller.
- Total Control: The system allows zeroing in any position and instant conversion between millimeters and inches (mm/inch).
- Vernier Stability: Equipped with an upper screw locking system, it allows you to fix the detected measurement for quick comparison between pieces.
- Monoblock Construction: The hardened stainless steel structure guarantees corrosion resistance and a long operating life, maintaining precision over time.
Areas of Application
Essential in machine shops, testing laboratories, and assembly areas where centesimal tolerance is essential. The jaw configuration allows for maximum versatility in external, internal, and depth measurements.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | CDJB15 (BORCDJB15) |
| Measuring Field | 153 mm |
| Resolution | 0.01 mm |
| Precision | 0.03 mm |
| Total size | 235 mm |
| External Nose Length | 40 mm |
| Internal Nose Length | 16 mm |
| Diet | SR44 Battery - 1x1.5V |
| Reference Regulations | DIN 862 |
| Material | Stainless steel |
Included: Protective case and user manual.
