Superior Capacity and Precision Mechanics

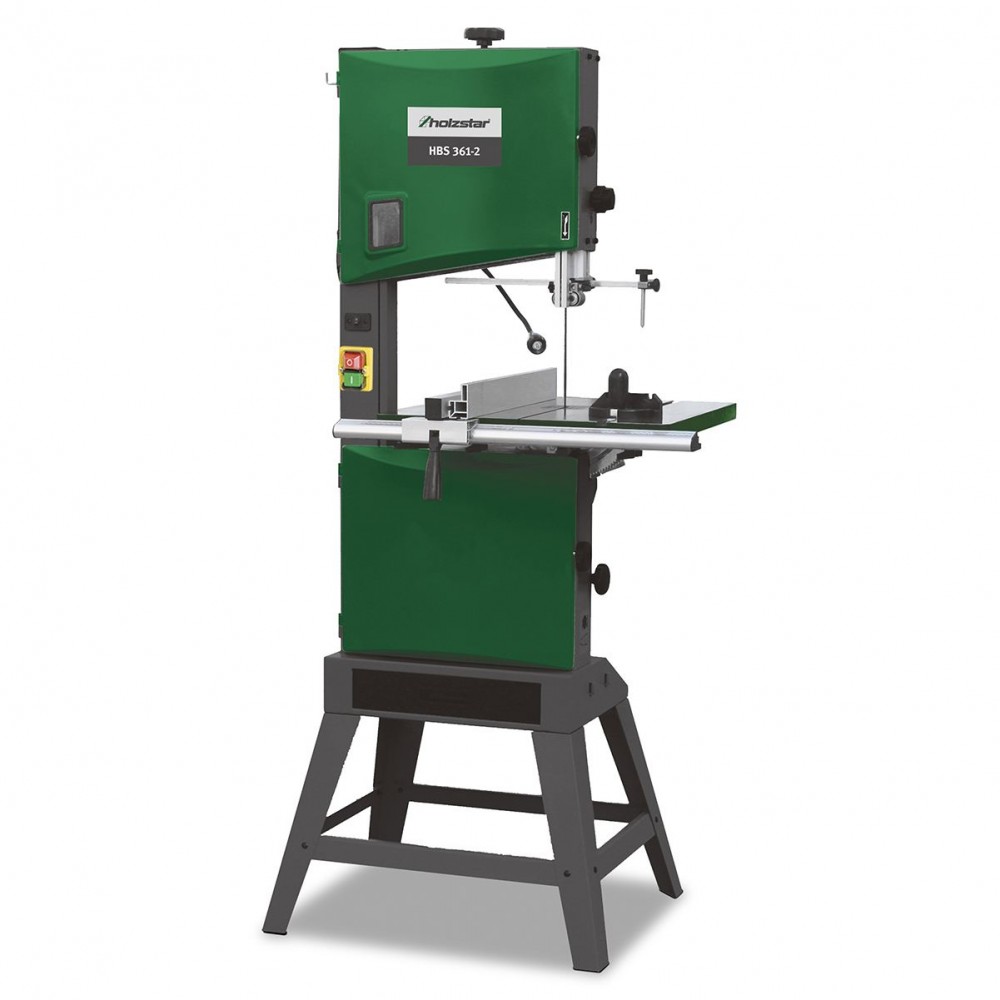

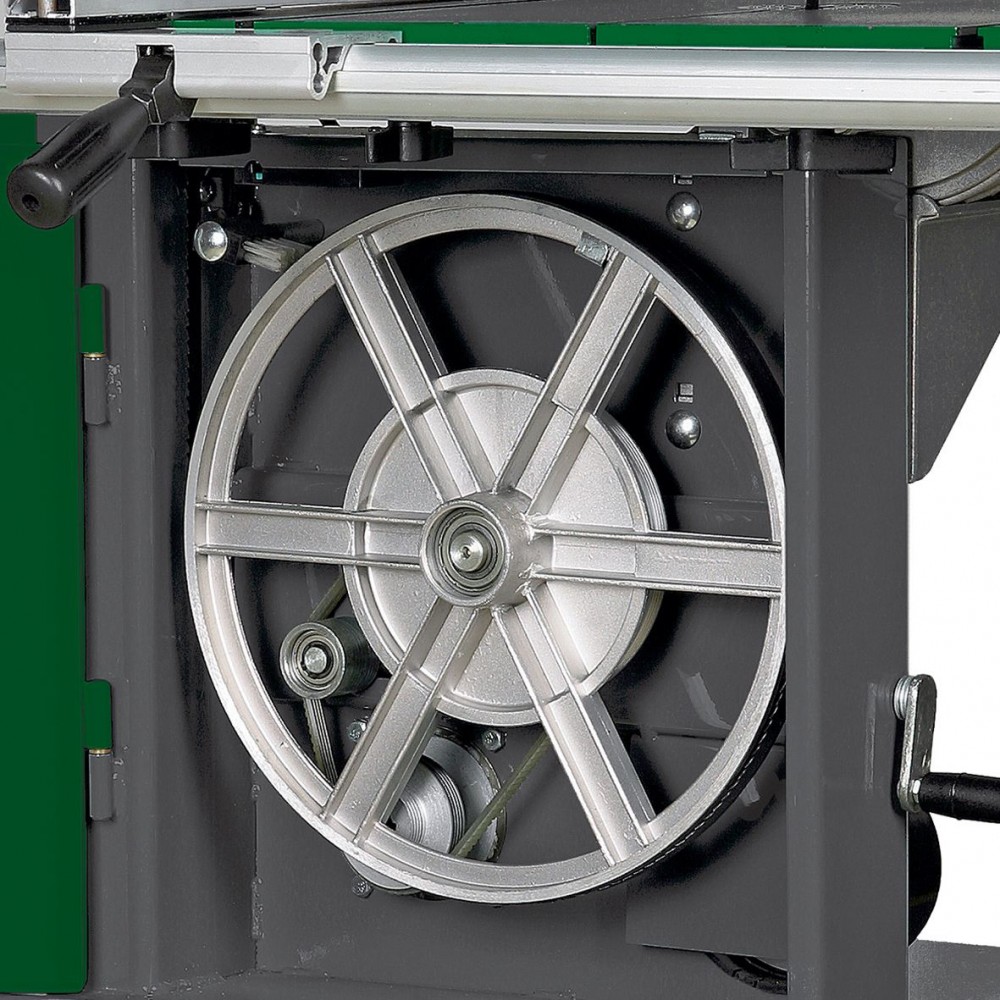

Item 590 2436 (HOL5902436) is an excellent solution for the craftsman who needs to handle large pieces without sacrificing cutting precision. The wood-fired HBS series stands out for the reliability of its components, such as the die-cast aluminum flywheels with a special coating to optimize belt drive.
Technical Features and Safety

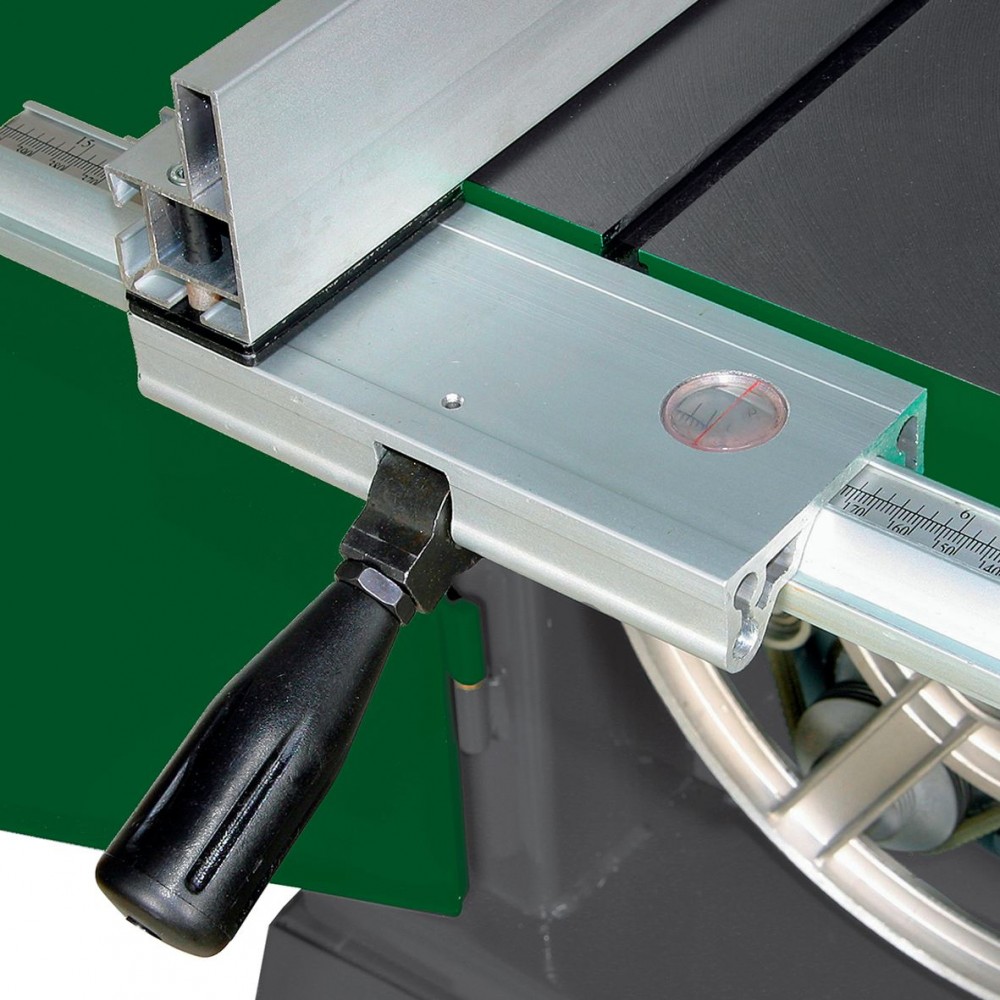

- Cutting Control: The aluminum longitudinal stop is equipped with a quick-locking system and an integrated magnifying glass on the millimeter scale, allowing for millimeter-accurate and repeatable adjustments.
- Operational Flexibility: Thanks to the two adjustable speeds (370/800 m/min), the operator can adapt the blade action to the hardness of the material, reducing overheating and improving the surface finish.
- Built-in Safety: The machine includes a safety switch that automatically stops the motor when the door is opened, ensuring maximum protection during blade changes or maintenance.
- Work Area Illumination: A practical standard LED light constantly illuminates the cutting line, ensuring optimal visibility even in dimly lit environments.
- Stability and Support: Comes complete with a solid stand that raises the machine to an ergonomic and safe working height.
Areas of Application
Ideal for advanced carpentry and restoration workshops performing longitudinal, curved, and angled cuts. The combination of a 225 mm cutting height and a generously sized table allows for easy processing of even thick logs or boards.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 590 2436 (HOL5902436) |
| Ø Flywheel | 356 mm |
| Max cutting height 90° / 45° | 225 mm / 145 mm |
| Max cutting width with guide | 255 mm |
| Max cutting width without guide | 340 mm |
| Blade speed | 370 / 800 m/min |
| Blade length | 2,560 mm |
| Table dimensions | 545 x 515 mm |
| Motor power (230 V ~ 50 Hz) | 1.1 kW (1100 W) |
| Ø Suction nozzle | 100 mm |
| Dimensions (L x W x H) | 870 x 690 x 1,715 mm |
| Net weight | 76 kg |
Standard Equipment Included:
- Band saw blade.
- LED light.
- Stand.
- Longitudinal stop with magnifying glass.
- Parallel guide.
Recommended Optional Accessories:
- Circular cutting device (Art. 591 2426).
- UF 230 universal mobile base (Art. 619 0230).
- Replacement blades with various teeth (e.g. 2560x16x0.5 mm 4T - Art. 516 0042).
