Precision and Technology for the Modern Workshop

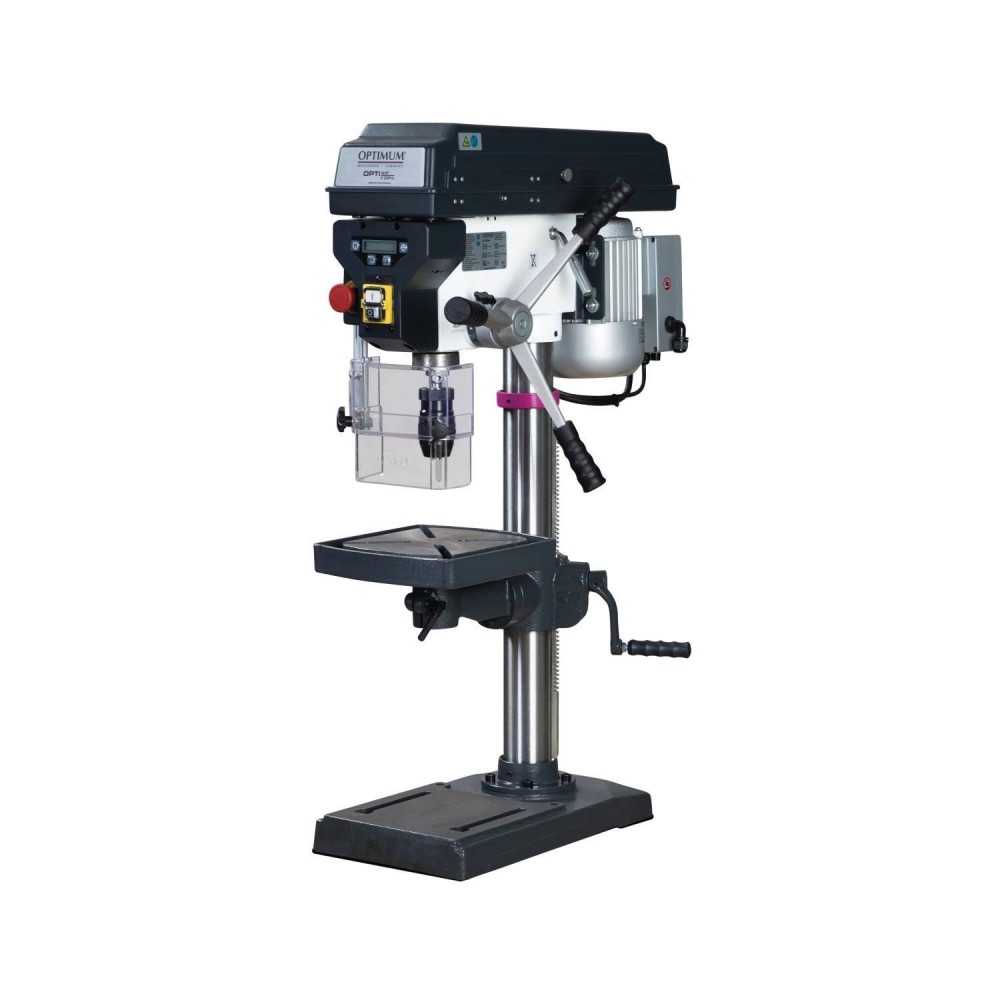

The optimum D 23Pro model (Code 058OP3020) represents the meeting point between mechanical robustness and digital innovation. Thanks to its benchtop configuration, it offers a compact yet extremely high-performance solution for drilling steel (S235JR) with a range of up to Ø 25 mm for occasional drilling and Ø 20 mm for continuous drilling.
GATES Precision Mechanics and Transmission
- Superior Concentric Rotation: The spindle shaft is mounted on precision ball bearings, ensuring a measured concentric rotation accuracy of ≤ 0.02 mm at the attachment seat.

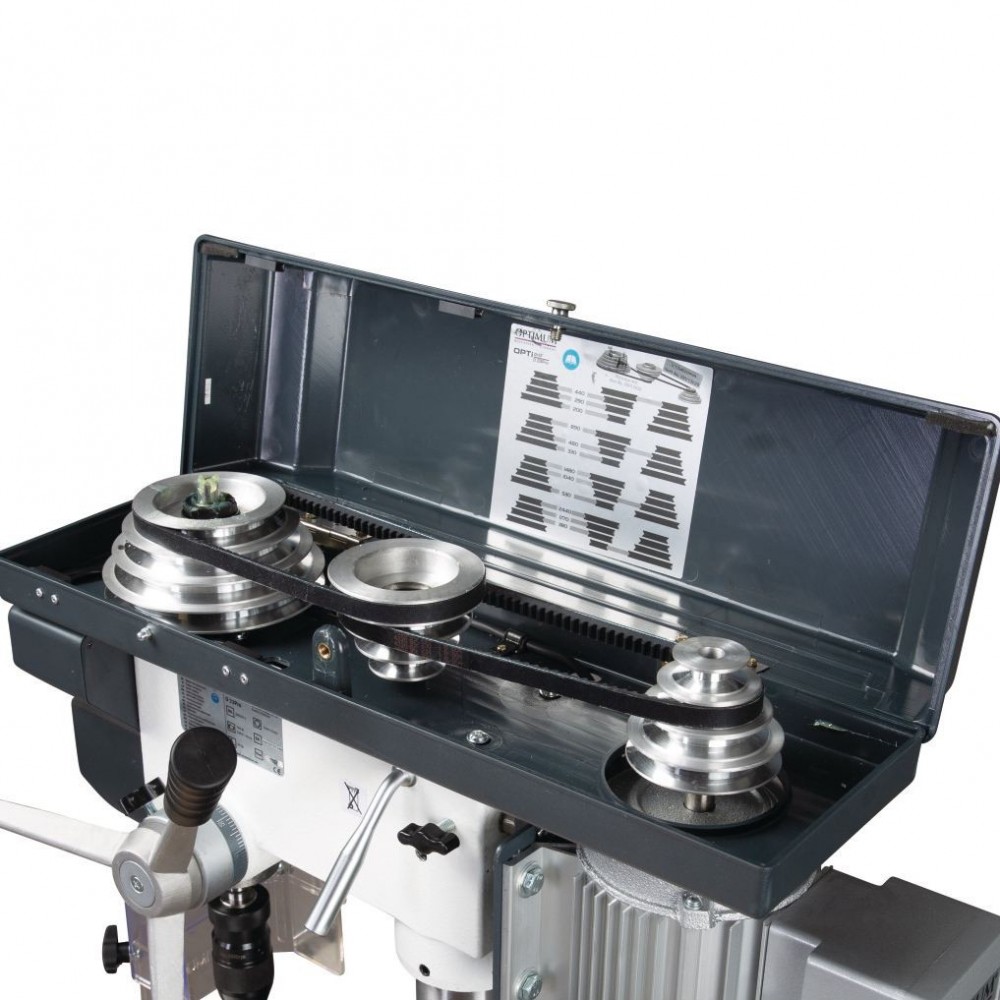

- Transmission Efficiency: The system uses ground aluminum pulleys in combination with high-quality GATES V-belts, ensuring extremely quiet operation and slip-free power transmission.

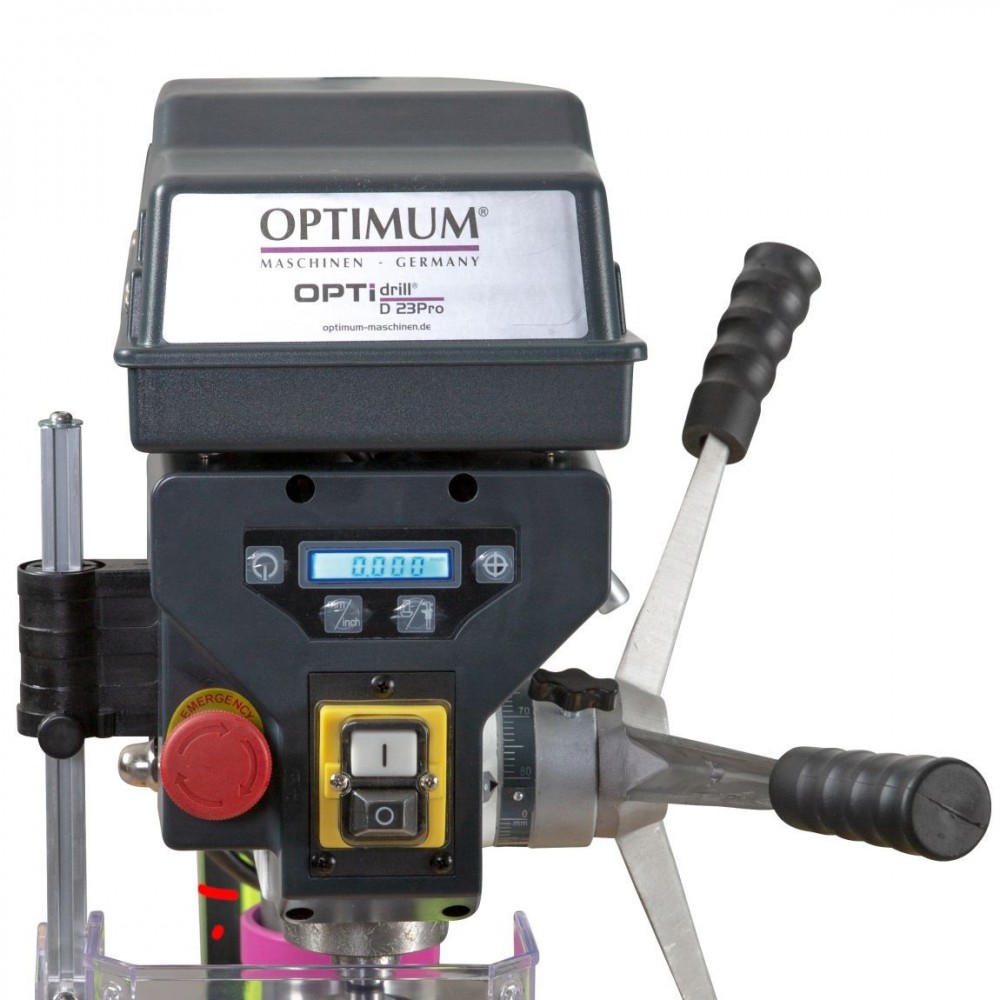

- Digital Control: Drilling depth can be monitored in real time via an integrated digital display, allowing for precise and repeatable machining.
Ergonomics and Certified Safety
In compliance with CE regulations and with IP 54 protection degree, the drill integrates:
- Softgrip Handles: The seatpost dropper levers are made of a single piece of die-cast aluminum with an ergonomic coating for a comfortable grip.

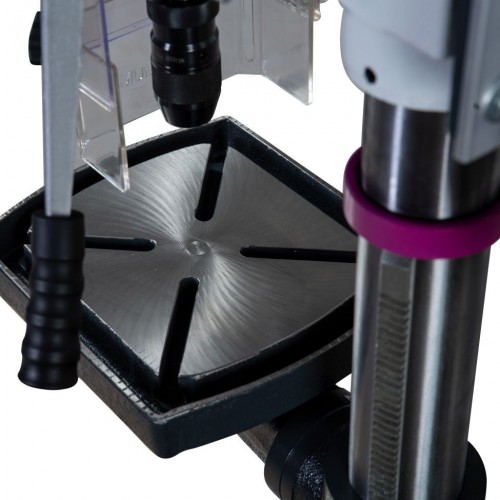

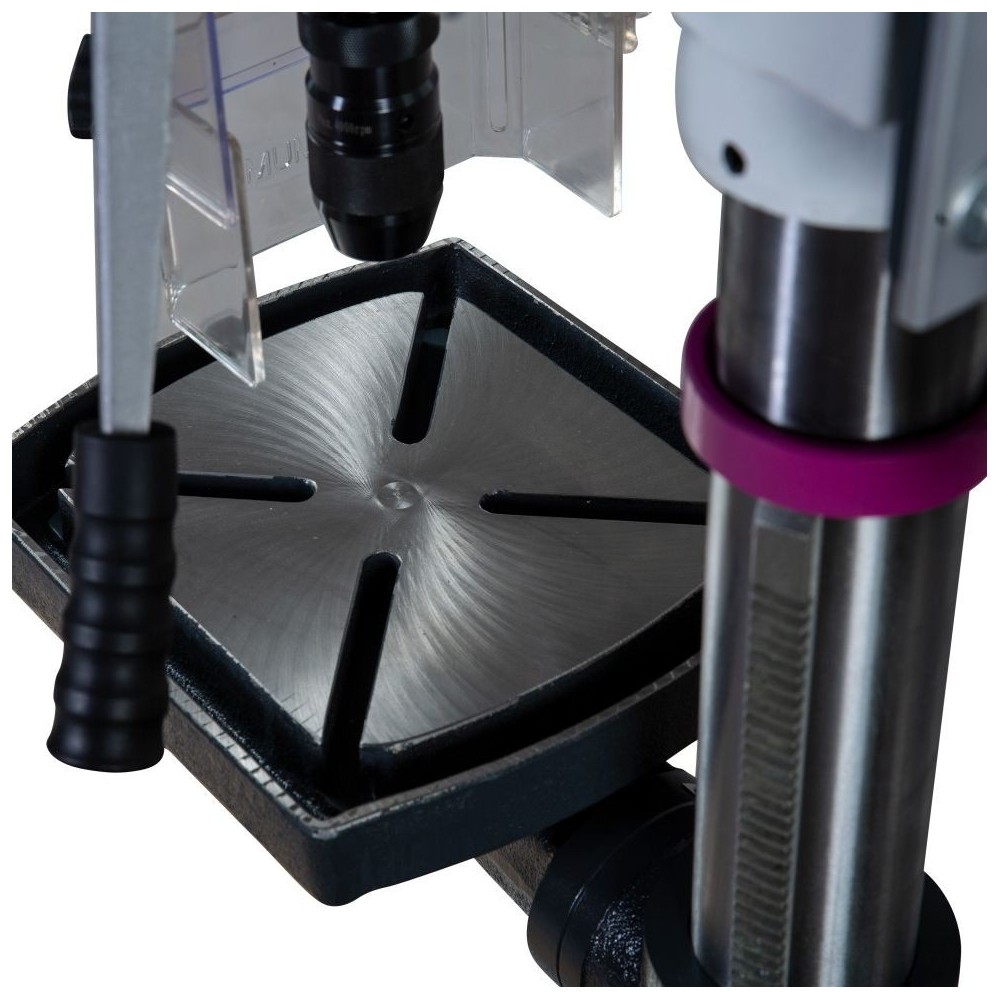

- Versatile Work Table: The table (280x245 mm) can be tilted ± 45° and rotated 360° , equipped with diagonally arranged T-slots for flexible workpiece clamping.

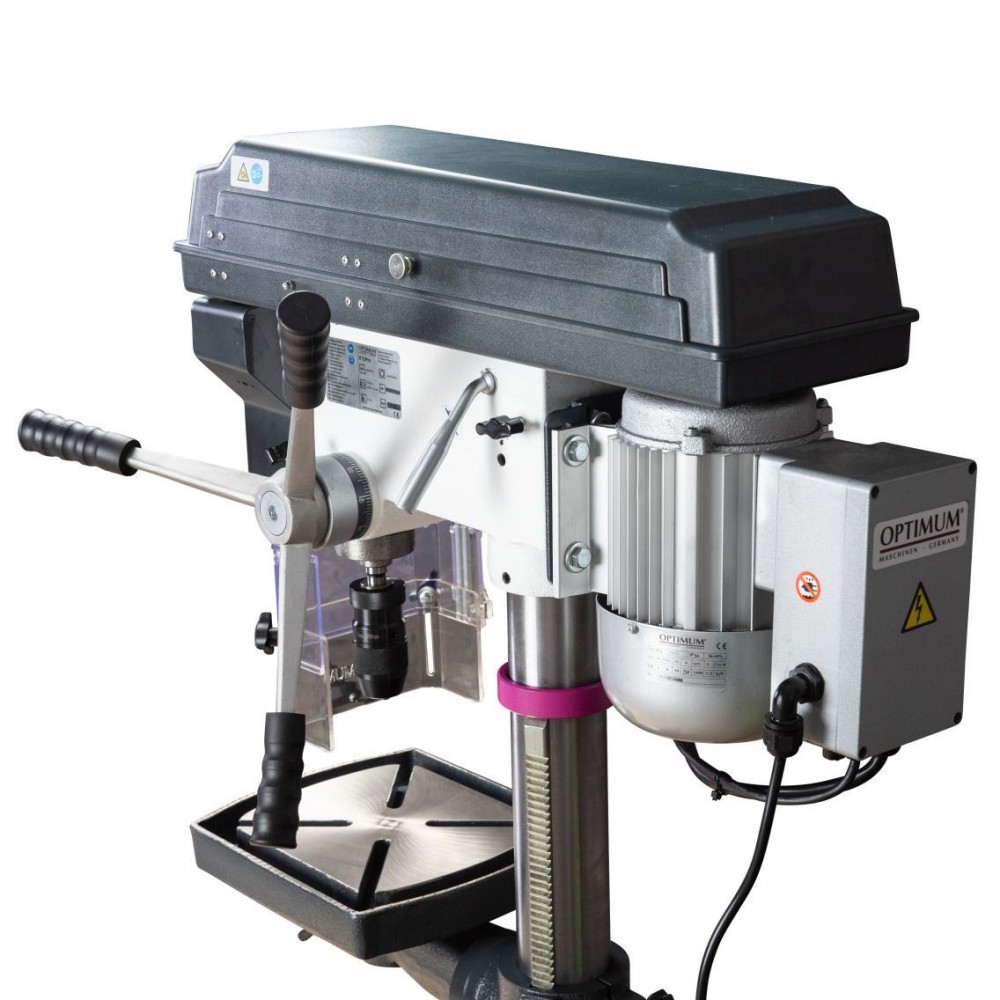

- Protection Systems: Includes a separate emergency switch, an undervoltage relay and safety microswitches on both the belt cover and the protective screen.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 058 OP 3020 (OPT058OP3020) |
| Engine power | 400V ~ 50Hz - 750W (0.75kW) |
| Max. steel drilling capacity | Ø 25 mm (continuous Ø 20 mm) |
| Spindle attachment | CM 2 |
| Spindle speed | 200 ÷ 2,440 rpm (12 speeds) |
| Steerer tube race | 80 mm |
| Spindle/column distance | 180 mm |
| Max distance spindle/table | 425 mm |
| Dimensions / Net Weight | 680 x 350 x 1,015 mm / 58 kg |
Standard Equipment Included:
- Self-tightening chuck 1-16 mm.
- Conical connection CM 2 - B16.
- T-Nuts
- Digital display for viewing drilling depth.
Note: 400 Volt models have right-left shifting as standard.
