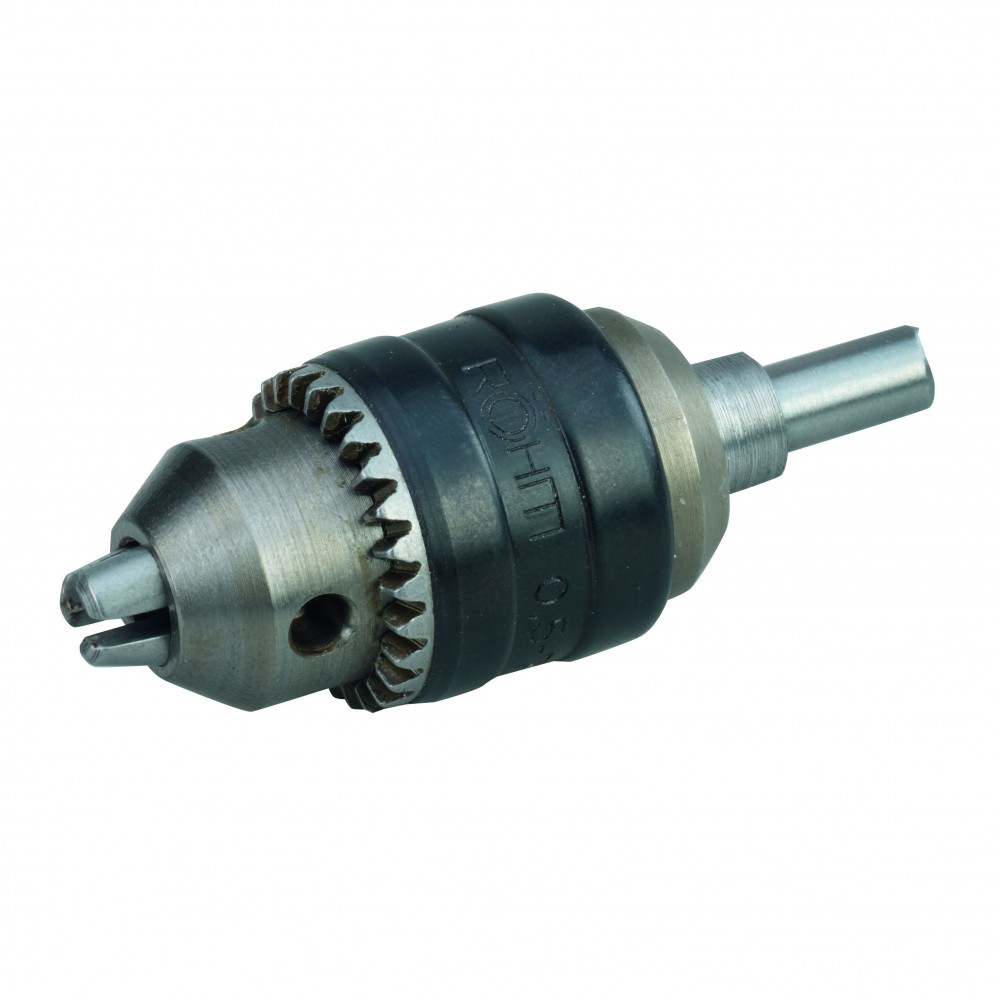

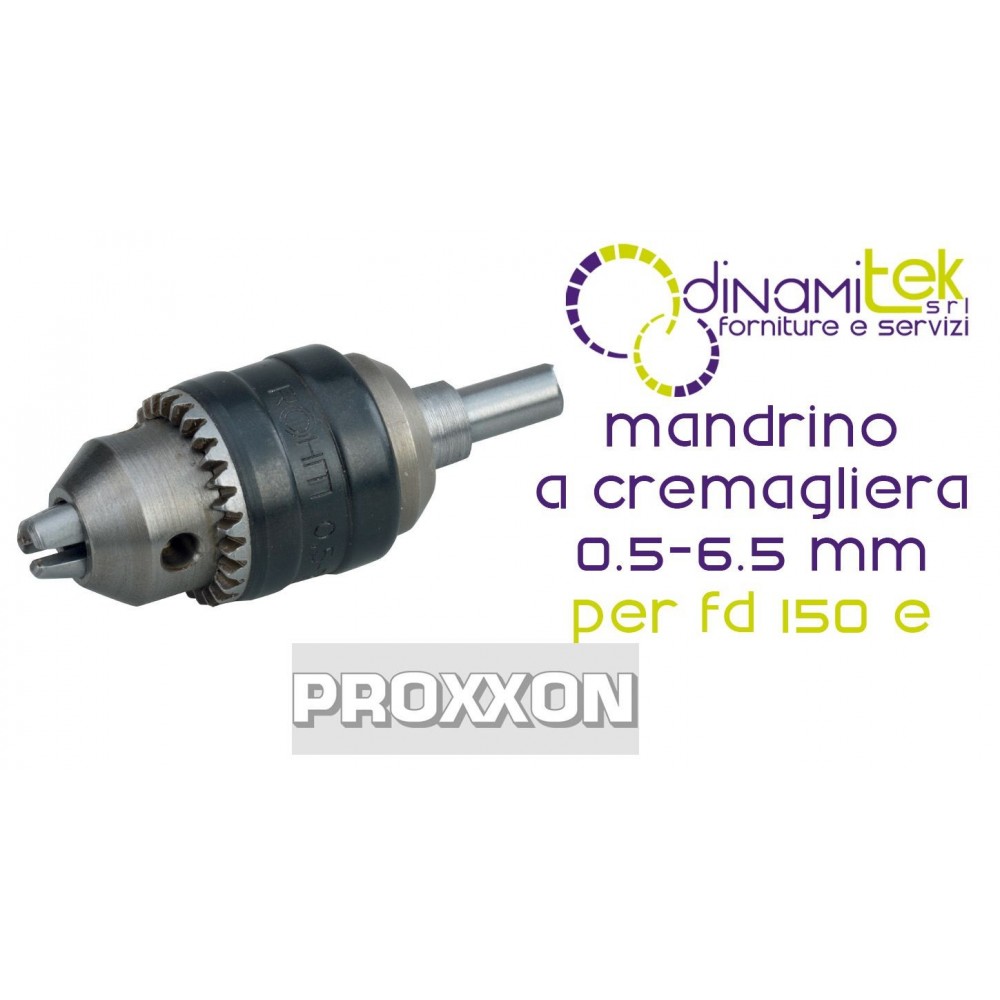

24152 KEYLESS CHUCK CLAMPING RANGE 0.5-6.5 MM FOR FD 150 AND PROXXON

Optimize drilling operations on your precision lathe with the proxxon 24152 keyless chuck . Designed specifically for integration into the tailstock of the FD 150/E lathe , this industrial-quality accessory allows you to perform accurate drilling with impeccable concentricity.

Thanks to its robust construction and high-speed capability, it's the ideal tool for model makers and precision mechanics who require consistent reliability. The rack-and-pinion system ensures a firm and secure grip on small-diameter drill bits, ensuring professional results in every application.

Industrial precision for your drilling: complete your FD 150/E with the proxxon chuck on Dinamitek!

Shipping cost: €10.00 for
10,9 €
Tax included

8,93 € Tax excluded

Quantity
Available product, order it now.

Industrial Execution for Surgical Drilling

The proxxon chuck code 24152 represents a fundamental extension to the operating capabilities of the FD 150/E turning system. Manufactured to industrial standards, it is distinguished by high concentricity , an essential feature when working on micro-mechanical components where every hundredth of a millimetre counts.

Technical Specifications and Performance

  • Clamping Capacity: Designed to accommodate shanks ranging from 0.5 to 6.5mm in diameter, offering maximum versatility for micro-bit use.
  • High Performance: The spindle is approved to operate safely up to a maximum speed of 10,000 rpm , well beyond the standard capabilities of the lathe, ensuring stability even at maximum cutting speeds.
  • Precision Assembly: Comes complete with B 10 x MK 0/short conical pin , specially designed for a perfect and backlash-free fit with the FD 150/E lathe tailstock.

Areas of Use

This accessory is suitable for all axial drilling operations on the lathe. Its precision makes it ideal for creating pilot holes, light reaming, and machining non-ferrous metals, technical plastics, and hardened steels. The easy tightening with the rack and pinion wrench allows for quick tool changes while maintaining repeatable and consistent centering over time.

Technical note: To maintain the high concentricity of the spindle, it is recommended to carefully clean the MK 0 conical pin before inserting it into the counter-head quill.


24152
