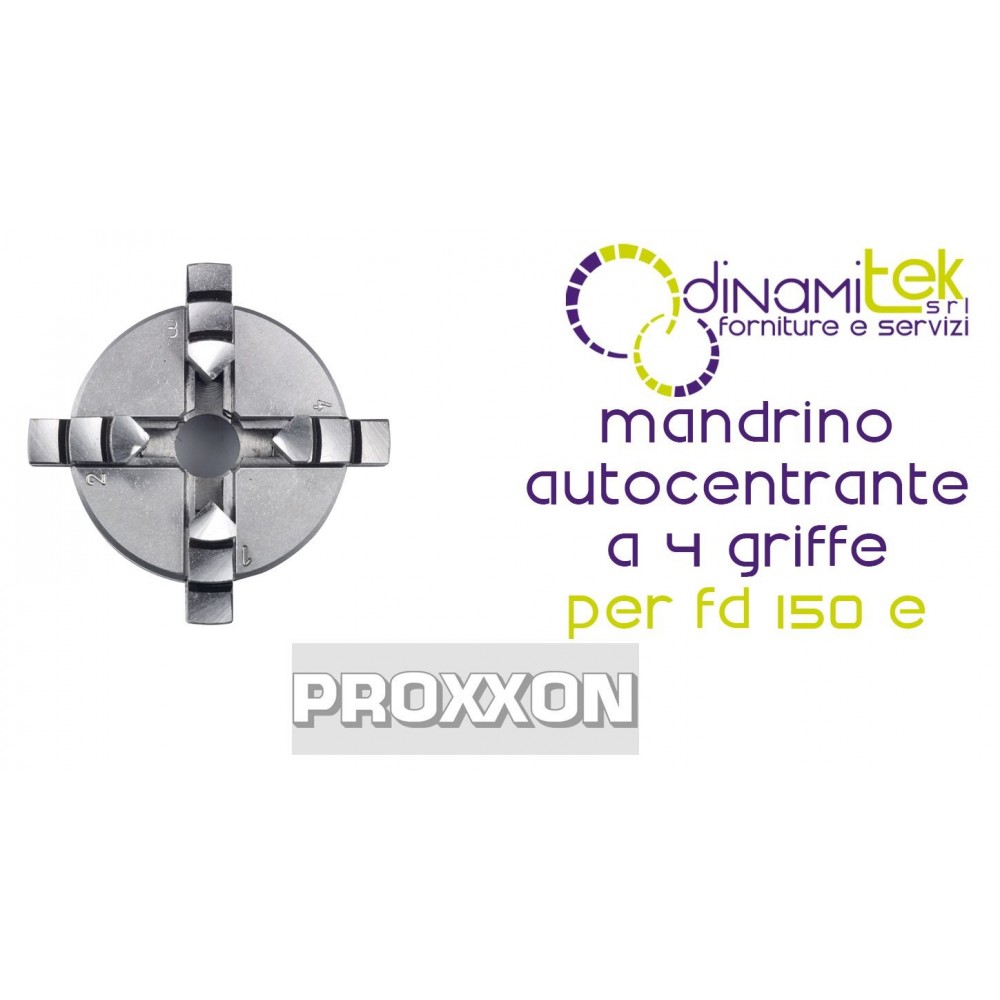

24158 4-JAW SELF-CENTERING CHUCK FOR FD 150 AND PROXXON

Expand the potential of your FD 150/E precision lathe with the proxxon 24158 4-jaw self-centering chuck . Designed for those who need to work on non-circular workpieces, this chuck allows for the quick and precise clamping of square or octagonal cross-section components , ensuring impeccable concentricity.

Made from high-quality industrial materials typical of the proxxon MICROMOT system, it is the indispensable tool for model makers and precision mechanics seeking versatility and reliability in a compact format. Thanks to its reversible jaws, it offers superior operational flexibility across a wide range of diameters.

Millimeter precision for every shape: complete your FD 150/E lathe with the original proxxon chuck on Dinamitek!

Shipping cost: Gratis for
64,5 €
Tax included

52,87 € Tax excluded

Quantity
Available product, order it now.

Concentric Clamping for Complex Geometries

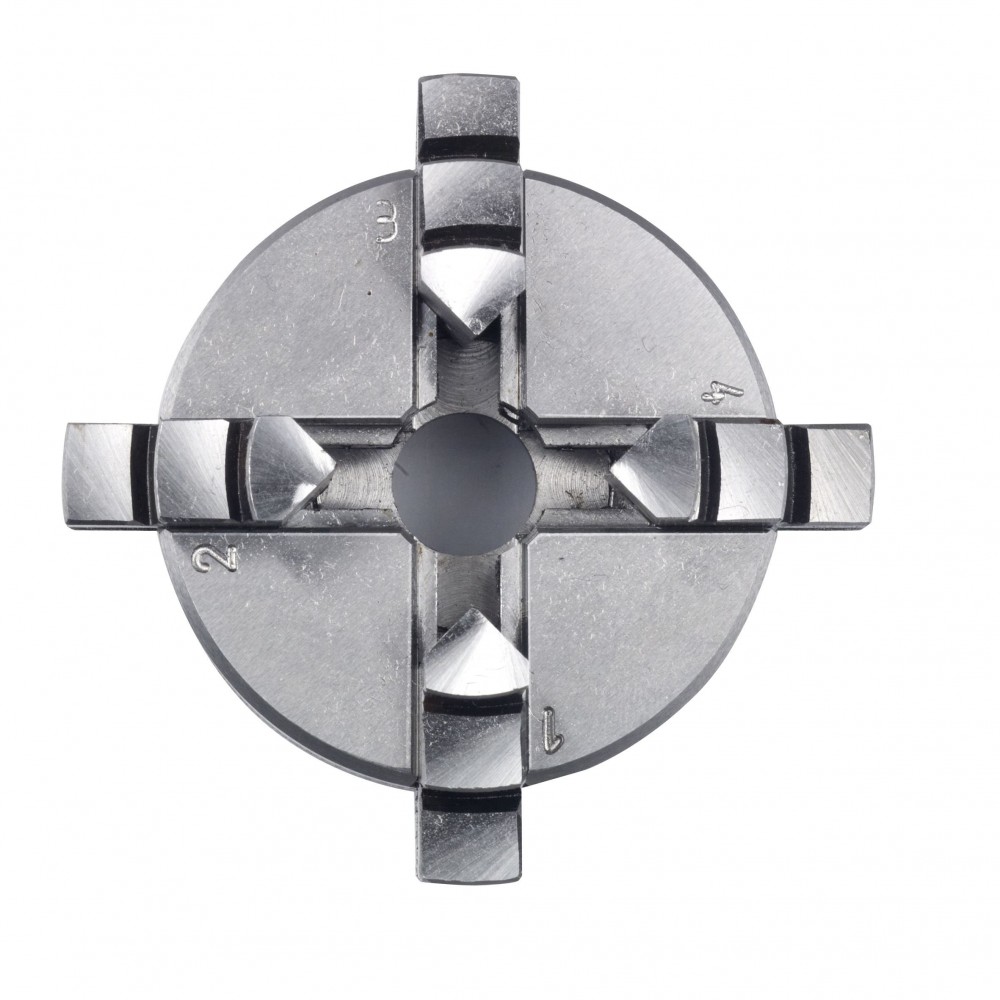

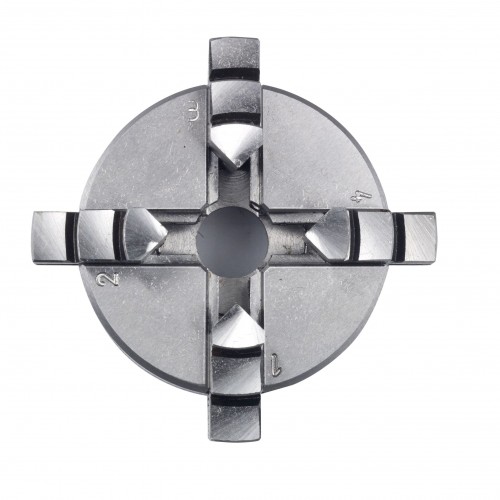

The four-jaw chuck (code 24158) is a high-precision mechanical accessory developed to fit perfectly onto the spindle of the FD 150/E lathe. Unlike chucks with independent jaws, this self-centering version moves all four jaws simultaneously, greatly facilitating the centering of square or octagonal workpieces without requiring time-consuming manual adjustments.

Technical and Functional Features

  • Clamping Geometry: Specifically configured for secure clamping of 4 or 8-sided workpieces, where the standard 3-jaw chuck would be ineffective.
  • Dimensions: External diameter of 50 mm , perfectly proportioned to the compact structure of the FD 150/E lathe.
  • Reversible Jaws: The set of jaws supplied is reversible to adapt to different gripping needs:
    • Internal socket: 2 to 20 mm.
    • External socket: 20 to 50 mm.

proxxon Build Quality

In line with MICROMOT system standards, the chuck is designed to minimize vibration and maintain high rotational precision even at the lathe's maximum speeds (up to 5,000 rpm). The smooth running of the internal mechanisms ensures constant clamping force, protecting the workpiece from deformation while ensuring maximum operational safety during longitudinal turning, flat turning, and drilling.

Directions for use: To maintain precision over time, it is recommended to carefully clean the jaw guides from shavings after each use, using compressed air or a soft brush.


24158
