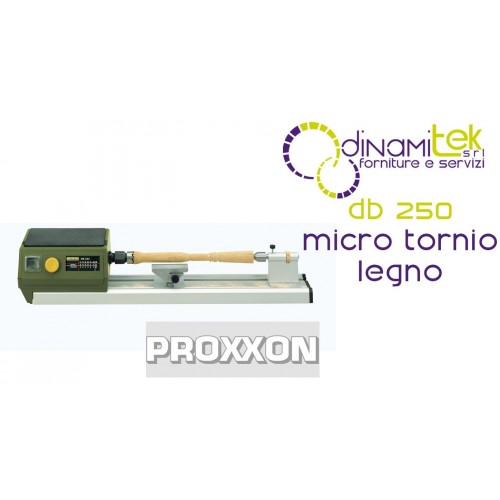

PROXXON DB 250 MICRO WOOD LATHE

The Ideal Solution for Miniature Turning

The proxxon DB 250 represents technological excellence applied to micromechanics. Its structure is designed to offer stability and millimetric precision, solving the typical challenges of classic model making and miniature artistic work.

High Quality Construction Features

• Aluminum Base: The stable workbench is made of a strong aluminum profile, ensuring excellent rigidity during work.
• Precision Tool Shaft: The drive shaft is mounted on ball bearings and has a 10mm through hole , a key feature for mass production of small parts.
• Tailstock and Support: Equipped with a rotating tailstock and a stable tool rest, adjustable both in height and in all directions.

Electronics and Control

The 100W motor works in synergy with a continuously variable electronic control that allows the speed to be varied from 1,000 to 5,000 rpm . This wide speed range is ideal for adapting to the hardness of the wood and the delicacy of the piece being worked.

Accessories Supplied

The lathe is supplied complete for immediate operation:

• 6 collets (2 – 3 – 4 – 6 – 8 and 10 mm).
• 4-point driver with centering tip (10 mm shank).
• Revolving tailstock and platform for larger workpieces.

Technical Data

• Motor: 230V, 100W, 50/60Hz.
• Distance between tips: 250 mm.
• Height of tips: 40 mm (25 mm above the tool rest).
• Headstock stroke: 20 mm.
• Total weight: Approximately 2 kg.

Expand the potential of your MICRO DB 250 lathe with these professional accessories designed for maximum precision:

• Three-jaw self-centering chuck (code 27026): made of die-cast steel, it is ideal for the rapid clamping of round pieces, with an internal gripping capacity of 1.5 to 20 mm and an external gripping capacity of 12 to 50 mm.
• 4-jaw individually adjustable chuck (code 27024): the perfect solution for securely holding asymmetrical or angular wooden pieces, thanks to the reversible jaws with an external clamping capacity of up to 67 mm.
• Chuck with tailstock quill (code 27028): mounted in place of the rotating tailstock to perform millimetric drilling; allows you to clamp drills up to 5 mm in diameter by taking advantage of the tailstock feed.
• Set of 5 turning tools (code 27023): a high-quality set that includes the most commonly used shapes (reamer, 3 and 6.4 mm gouges, carver and chisel), neatly stored in a wooden case.
