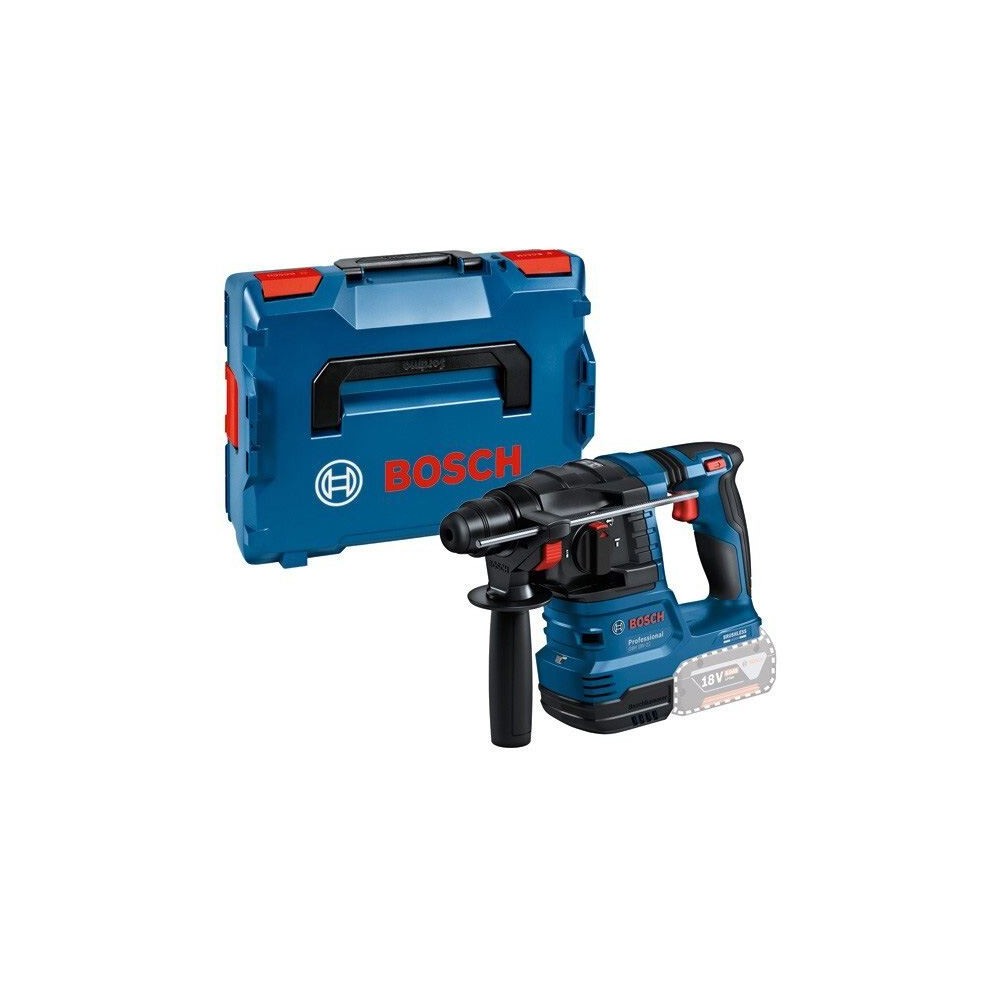

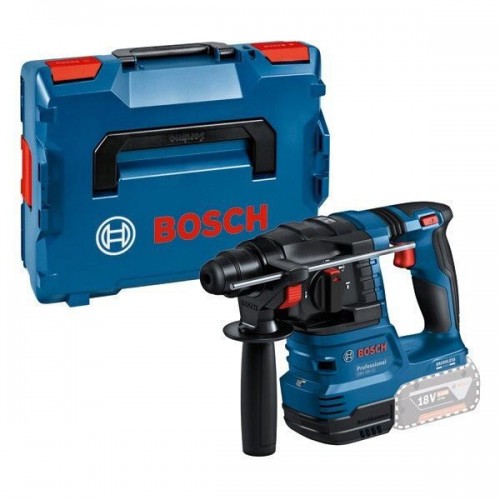

Bosch GBH 18V-22 Professional Cordless Hammer Drill (Code 0611924001)

The Bosch GBH 18V-22 Professional cordless hammer drill is a tool from the Bosch series designed to offer a simplified and much more efficient working experience, especially when drilling overhead. It is ideal for hammer drilling and chiselling in concrete and brick, as well as for drilling in wood and steel.

Safety and Operational Comfort

• Ergonomic Design: Features a compact, lightweight and ergonomic design, with a well-defined center of gravity, minimizing muscle tension and fatigue.
• KickBack Control: Offers increased safety against accidental jams.
• Vibration Control: Ensures reduced vibration exposure for comfortable work and less impact on hands and arms. The vibration emission value is 14 m/s² for drilling.
• Constant Speed: Improves work results thanks to the electronic speed regulation system that maintains a constant speed.
• Anti-Dust System (Optional): Helps create dust-free working conditions thanks to the connectable Auto Power GDE 12 extractor (or GDE 18V-12 Professional).
• Chiseling Function: It is a combined hammer that includes the chiseling function, acting only by percussion (without rotation).

Main Technical Data

• Series: GBH 18V-22 Professional.
• Type: Cordless Hammer.
• Nominal Voltage: 18 V.
• Impact Power (max): 1.9 J.
• Tool Holder (Chuck Type): SDS Plus.
• Number of Empty Shots: 0 – 4,675 strokes/min (or rpm).
• Rated Speed: 0 – 1,050 rpm.
• Weight (excl. battery): 2.3 kg.

Drilling Field

• Ø hole in concrete with hammer drill bits: 4 – 22 mm.
• Optimal application range in concrete: 4–12 mm. It is ideal for holes from 6 mm to 10 mm in diameter.
• Max. hole diameter in metal: 13 mm.
• Max. hole diameter in wood: 20 mm or 30 mm.

Package Contents (Basic Set 0611924001)

The standard supply (code 0611924001) includes:

• 1x GBH 18V-22 Rotary Hammer.
• 1x Depth limiter.
• 1x Cleaning cloth.
• 1x L-BOXX 136 case (code 1 600 A01 2G0).
• 1x L-BOXX insert 1/1 for GBH 18V-22 (code 1 600 A02 NS7).
