P045 19-PIECE HSS CYLINDRICAL DRILL BIT SET 1-10MM DIN 338/N FERVI

Technical Features and Performance of the Fervi P045 Tip Series

The Fervi Art. P045 series of cylindrical metal twist drill bits represents a complete and essential solution for chip removal operations using drill presses, milling machines, and lathes. Made of high-speed steel (HSS) , with a right-hand spiral and a black rolled surface finish, they guarantee smooth chip removal and excellent thermal and mechanical resistance.

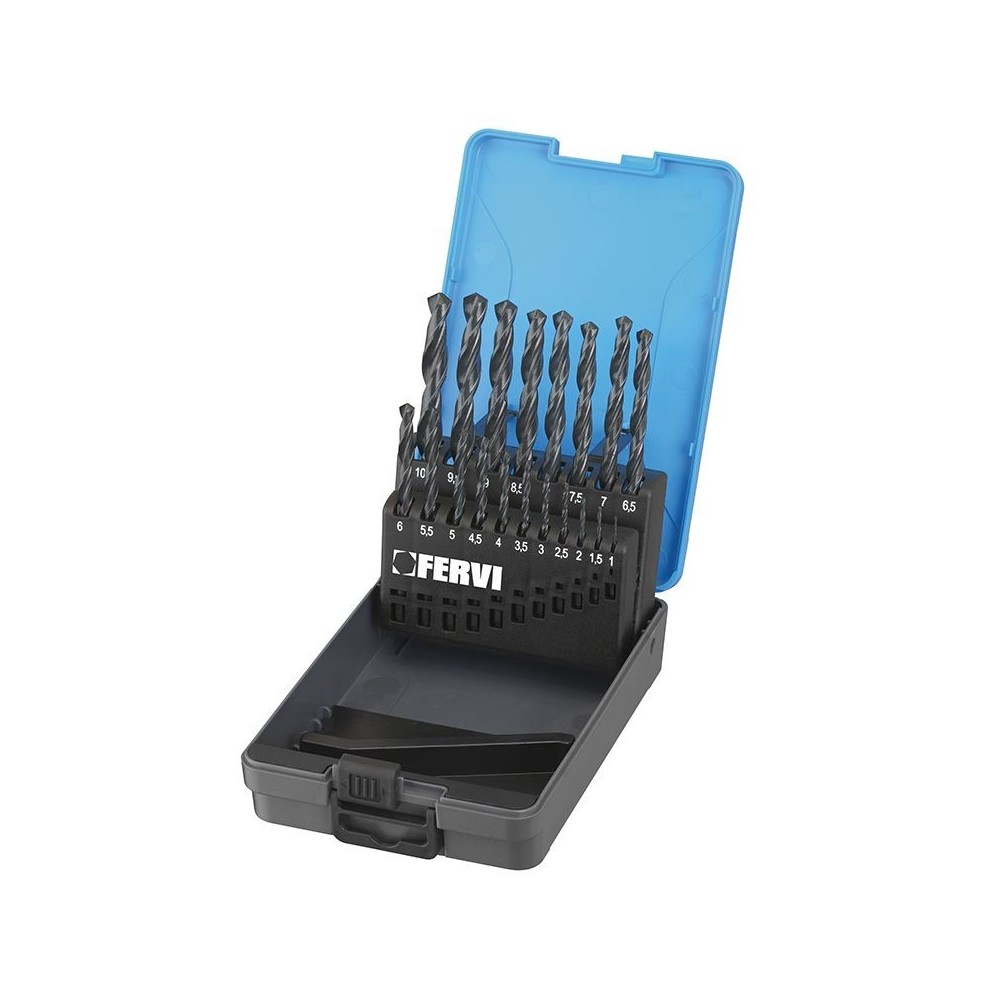

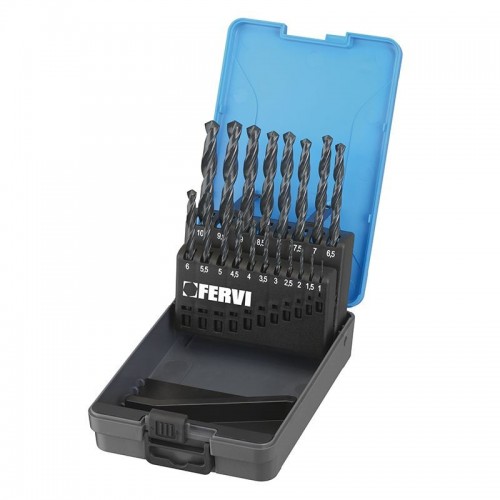

The 118° sharpening angle and hardness rating of HV 700 to 740 ensure effective self-centering and high penetration capacity on steels with a strength of up to R ≤ 650 N/mm², cast iron, aluminum, and non-ferrous alloys. The 19-piece assortment covers a diameter range from 1.0 mm to 10.0 mm with a constant pitch of 0.5 mm. The set is housed in a sturdy synthetic container with a tilting internal rack for quick identification and immediate selection of the desired size.

Detailed Technical Data Sheet

• Manufacturer / Brand: FERVI SpA
• Item Code: P045
• Product Type: Twist drill set
• Construction Material: High Speed Steel (HSS)
• Finish and Profile: Rolled, black, right hand propeller
• Top Angle: 118°
• Surface Hardness: HV = 700 ÷ 740
• Reference Standard: DIN 338/N
• Total Number of Pieces: 19 pieces
• Measuring Range (Progression 0.5 mm): Ø 1 ÷ 10 mm
• Machinable Materials: Steel (R ≤ 650 N/mm²), cast iron, aluminum, non-ferrous alloys
• Recommended Lubricant: Emulsion
• Usable Machines: Drill, milling machine, lathe

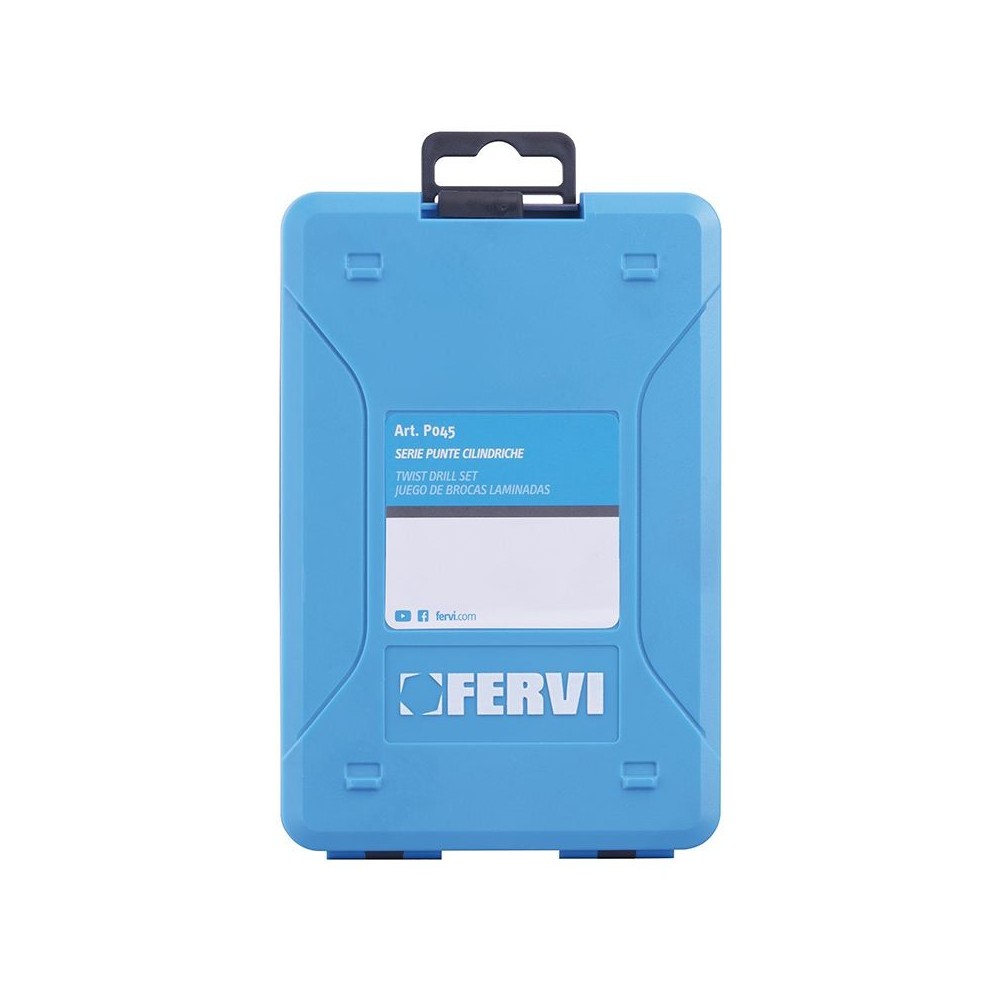

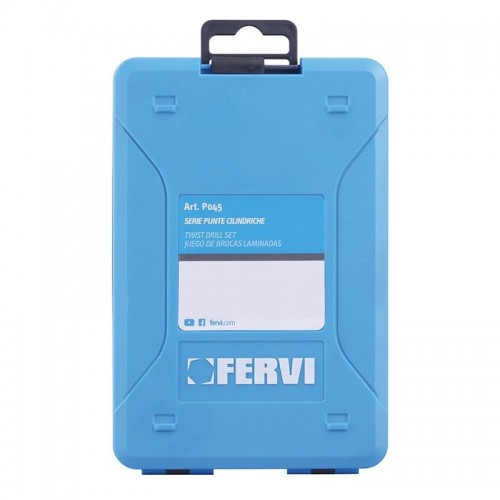

• Container: Hard case with compartments
• Gross Weight: 0.62 kg
• EAN Code: 8012667002510
• Packaging Dimensions (L x W x H): 175 x 115 x 40 mm
