EXP A 39B 90 CM3 4116028203-COMPRESSORPISTONWITHBELTSINGLEPHASELUBRICATEDEXPERT3HP10BAR90LT393L/MIN ABAC

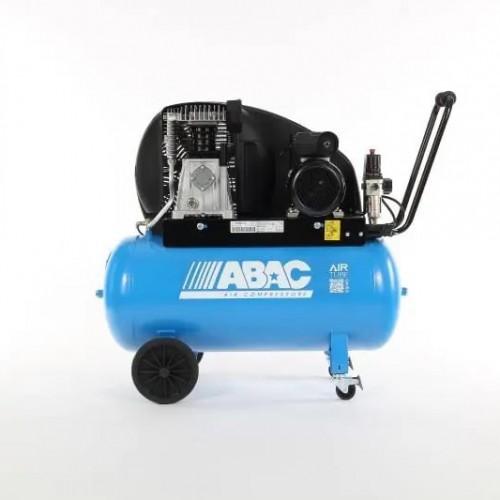

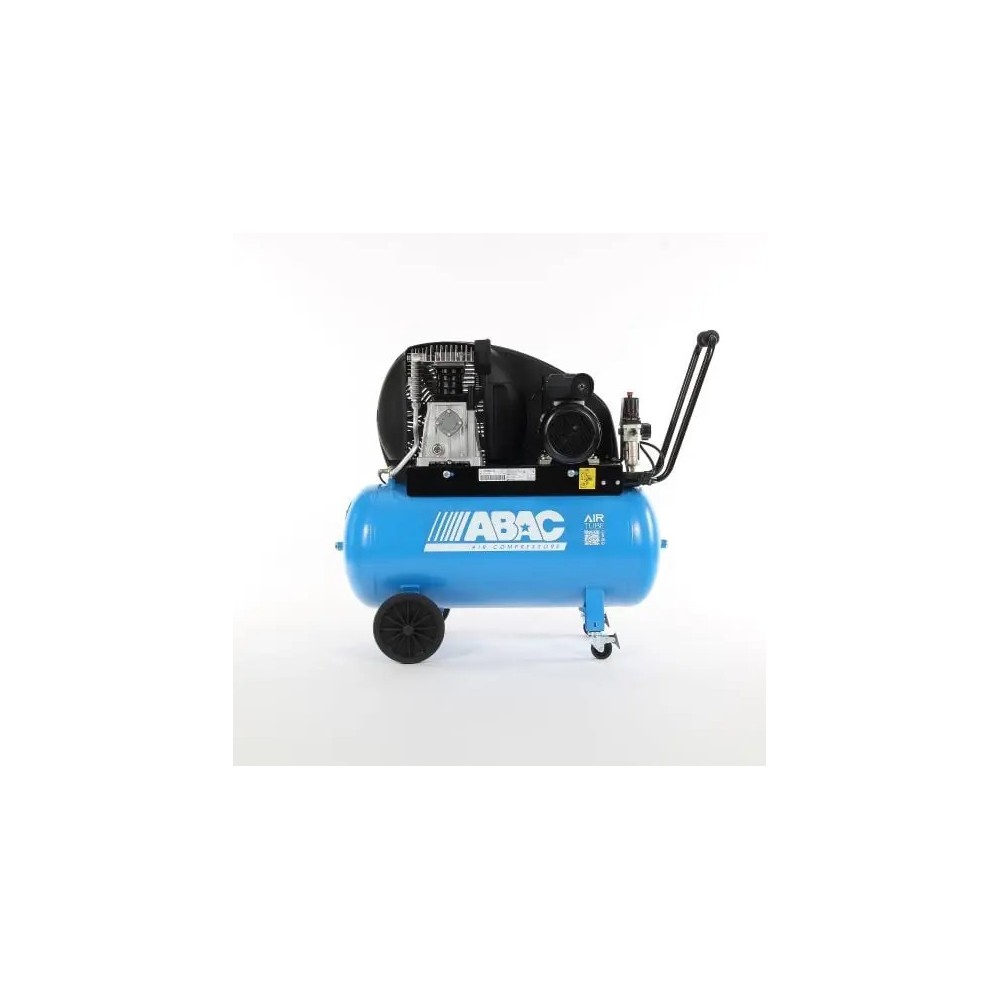

ABAC Expert A39B CM3 Compressor: Single-phase 3 HP reliability.
Designed specifically to meet the rigorous demands of professionals , the abac Expert A39B CM3 is a single-stage, belt-start piston compressor that combines exceptional performance with user-friendly design.
With a powerful 3 HP motor, a 90-liter tank, and a maximum pressure of 10 bar , this model offers a solid and durable solution you can rely on for prolonged use. Its advanced design includes double swivel front wheels for great stability and new handles that increase its agility when moving. Furthermore, the air outlet with integrated filter protects even the most expensive pneumatic tools.
Model 4116028203 is part of the ABAC Expert range, a series of oil-lubricated piston compressors designed for high-end users seeking superior quality and exceptional functionality. This belt-driven piston compressor features a tank-mounted configuration, making it ideal for professional applications in sectors such as automotive, crafts, and woodworking. The Expert range is a robust solution that professionals can rely on to meet the rigorous demands of various industrial sectors.
Detailed Technical Features
Specifications
Value
Unit
Product Code
4116028203
Model
EXP A39B 90 CM3
Pump Type
Single-stage
Pumping Element
PAT38A
Maximum Pressure
10 (145)
Bar (PSI)
Tank Capacity
90 (19.8)
Liters (Gal)
Air Flow
393 (13.3)
l/min (Cfm)
Engine Power
3 (2.2)
HP (kW)
Diet
230 / Single phase / 50 Hz
V / Phase / Hz
Pumping Speed
1050
RPM
Lubrication
Oil Lubricated
Noise level (LPA)
75
dB(A)
Noise level (LWA)
95
dB(A)
Weight
67
KGM
Dimensions (L x W x H)
1123 x 502 x 930
mm
Design Features and Flexibility
Expert compressors are designed with advanced technology to ensure maximum comfort and stability:
Mobility and Stability: The compressor offers great stability thanks to its double swivel front wheel. It features 200 mm heavy-duty rear wheels and two swivel front wheels with brakes.
Advanced Ergonomics: Includes a sturdy, ergonomic handle with rubber protection. The new handles are designed to help you move the unit with greater agility.
Versatile Air Outlet: The air outlet is equipped with filtering or, alternatively, offers a versatile double outlet . The outlet filter effectively protects even the most expensive pneumatic tools.
Discover ABAC compressors on Dinamitek: reliable and technological solutions for compressed air, from portable models to custom industrial systems. Efficiency and quality for professional use.
ABAC is a leading international brand in professional air compressors and pneumatic systems designed for workshops, industry, body shops and professionals in the technical sector. Its solutions are designed to ensure operational continuity, energy efficiency and air quality in all types of technical applications.
The ABAC range includes piston compressors, screw compressors and soundproofed models —both portable and stationary— as well as complete air treatment systems and pneumatic accessories. Each product line stands out for its air flow, pressure, low noise levels, stability and consistent performance, even under intensive use.
ABAC is renowned for its reliability, innovation and performance, thanks to technologies focused on safety, reduced energy consumption and operational continuity. Professionals choose ABAC for its stability, durability and the quality of its compressed air: key factors in ensuring efficient production processes.
