BGS85222 ASSORTMENT OF 30 PIECES, CONNECTORS WITH HEAT SHRINK TUBING BGS TECHNIC

The 30-PIECE ASSORTMENT OF CONNECTORS WITH HEAT-SHRINK SLEEVE , identified with the article BGS85222, is a practical professional kit from the BGS Technic brand.

Technical and operating characteristics:

• Each connector is made up of a transparent heat shrink tube which integrates a colored and solderable tin ring.
• It allows the simultaneous welding and shrinking of cables through simple heating.

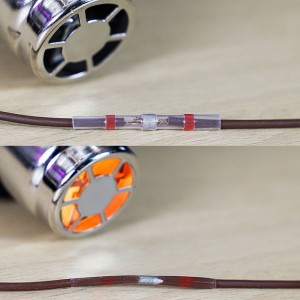

• When heated with a hot air device, the tin band inside the insulating connector melts, securely connecting the ends of the cable.
• It offers high tensile strength and elongation, ensuring a robust connection.

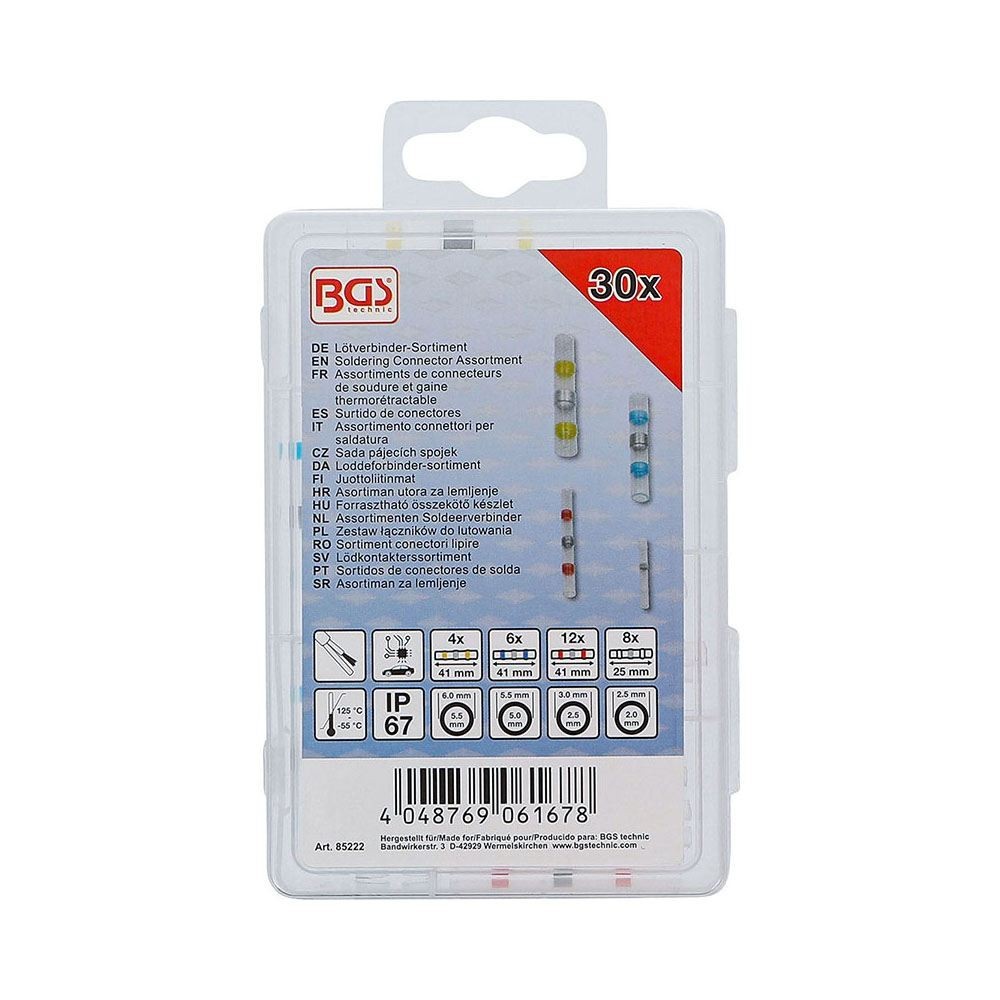

• The entire assortment is supplied in a convenient box for optimal organization.
• Wide operating temperature range: from -55 to +125 °C.
• It has an IP67 protection class, which indicates excellent resistance to dust and temporary immersion in water.

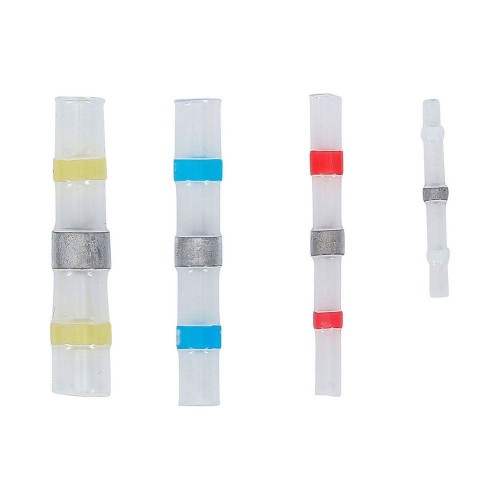

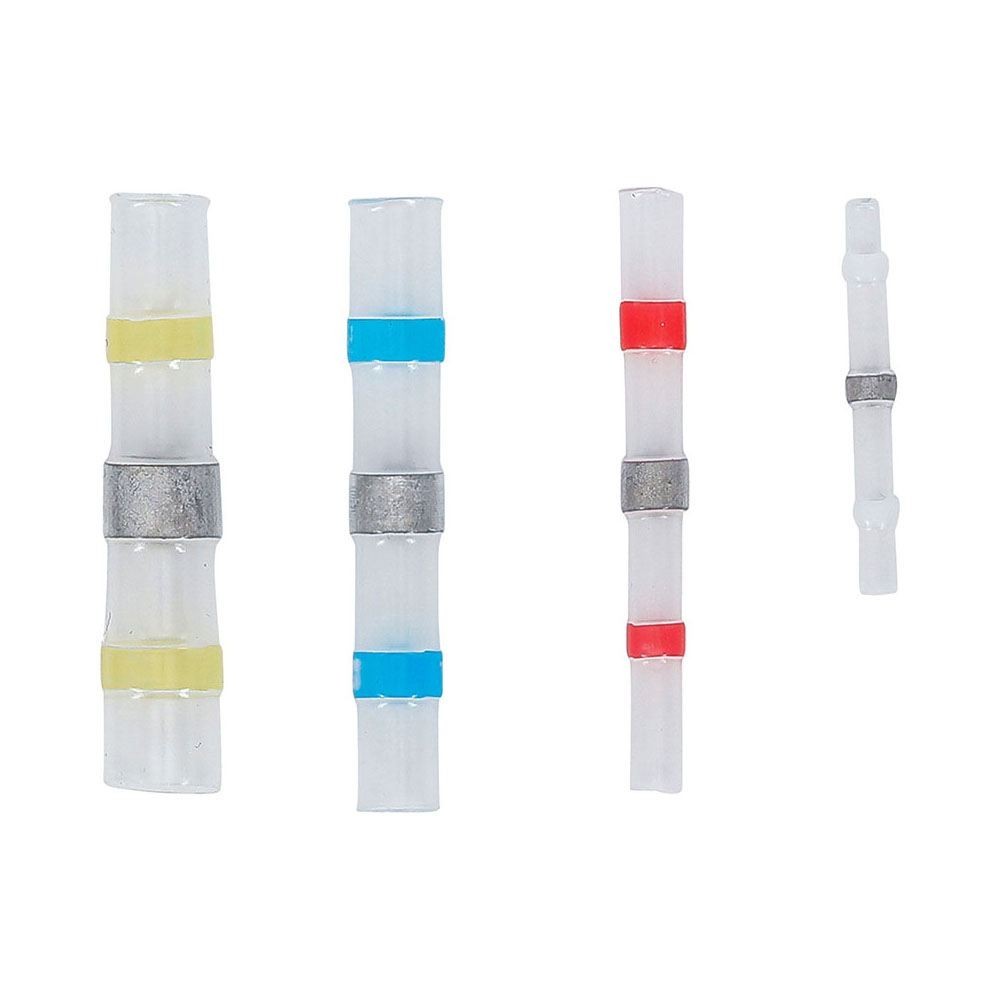

• The assortment includes a total of 30 tubes/connectors, divided into the following sizes and colors:
  • 8 pieces, color White, internal Ø 2.0 mm, external Ø 2.5 mm, total length 25 mm.
  • 12 pieces, color Red, internal Ø 2.5 mm, external Ø 3.0 mm, total length 41 mm.
  • 6 pieces, color Blue, internal Ø 5.0 mm, external Ø 5.5 mm, total length 41 mm.
  • 4 pieces, color Yellow, internal Ø 5.5 mm, external Ø 6.0 mm, total length 41 mm.
• The total weight of the assortment is 40 g.
