BGS85221 36-PIECE ASSORTMENT, CONNECTORS WITH HEAT-SHRINK TUBING BGS TECHNIC

The 36-piece assortment of heat-shrinkable connectors , identified by the article BGS85221, is a practical professional kit from the BGS Technic brand. This product is ideal for making quick, safe, and secure electrical connections.

Technical and operating characteristics:

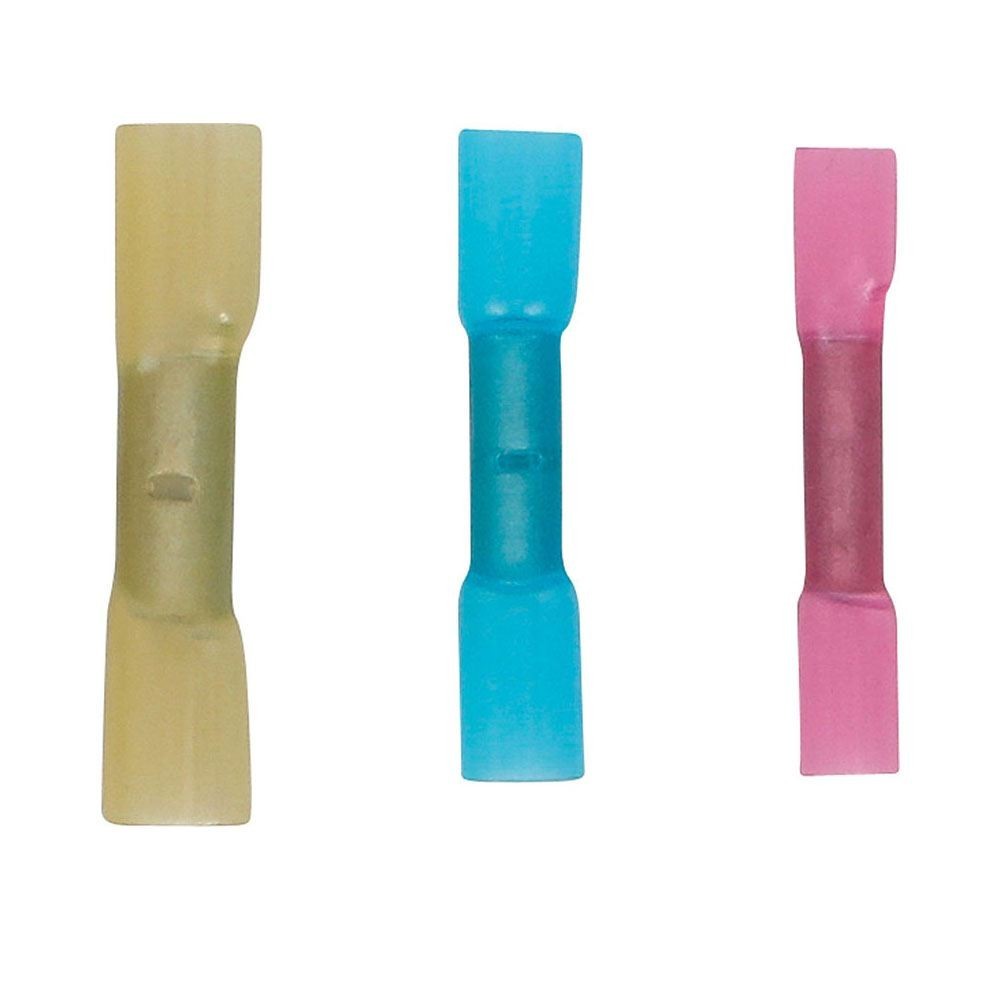

• Each connector is made up of a transparent heat shrink tube which integrates a colored and solderable tin ring.
• It allows the simultaneous welding and shrinking of cables through simple heating.

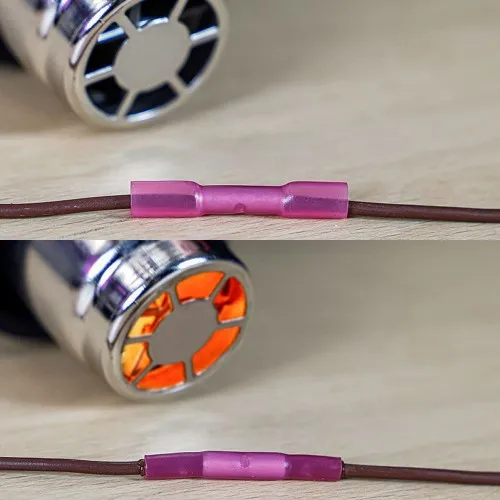

• When heated with a hot air gun, the tin band inside these insulating connectors melts, securely connecting the cable ends.
• It offers high tensile strength and elongation, ensuring a robust connection.

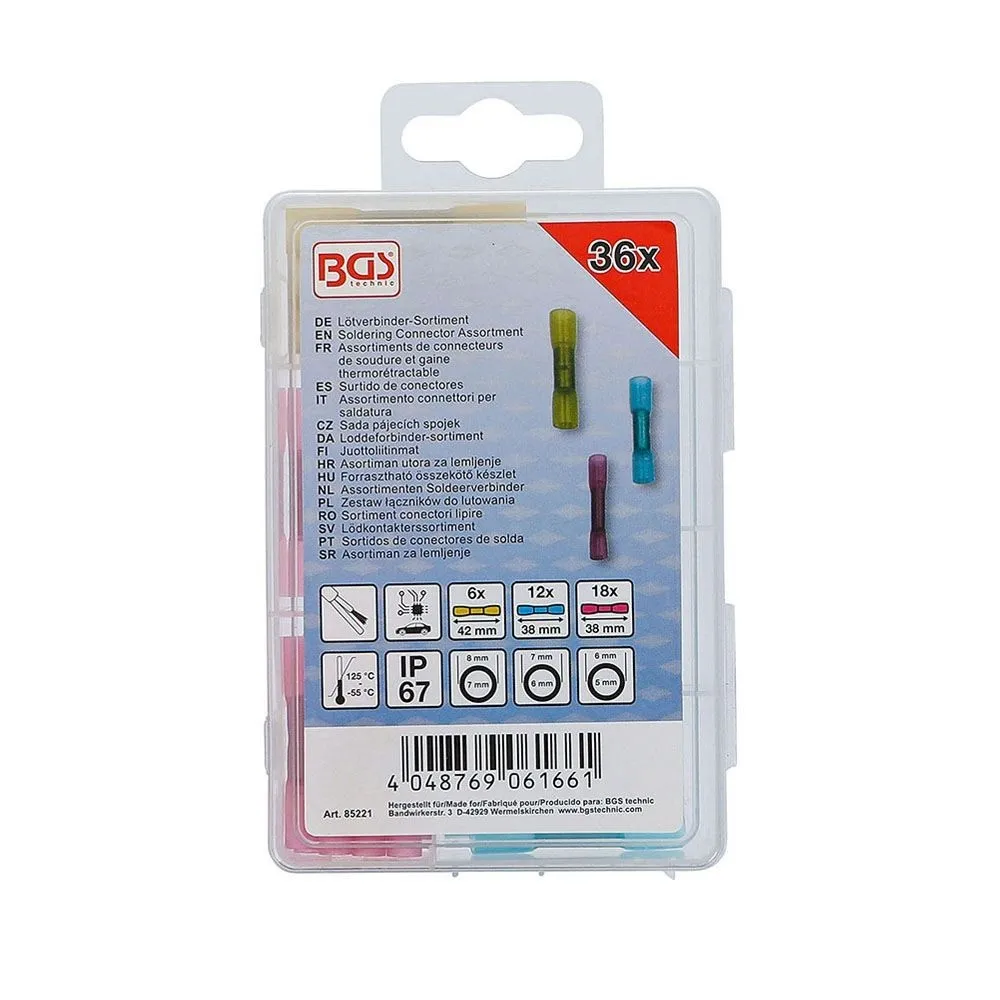

• The entire assortment is supplied in a convenient box for optimal organization.
• Wide operating temperature range: from -55 to +125 °C.
• It has an IP67 protection class, which indicates excellent resistance to dust and temporary immersion in water.

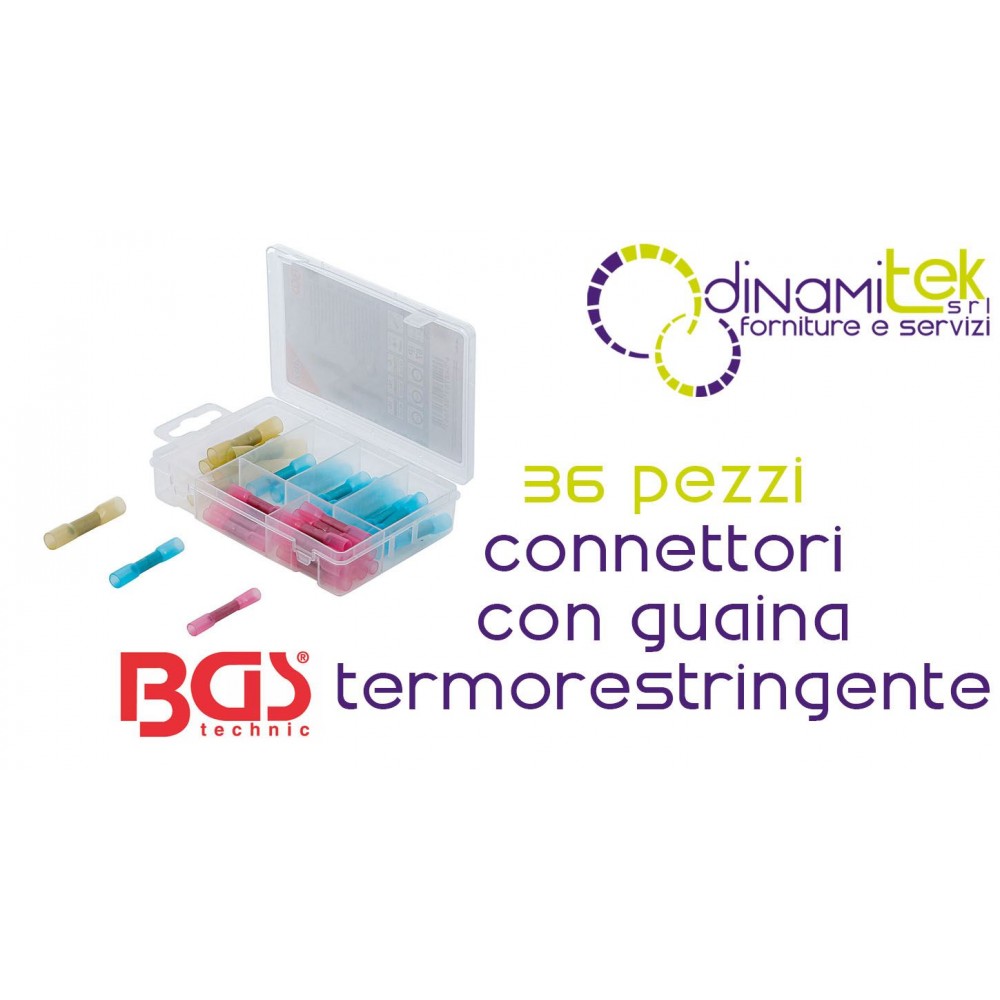

Contents of the assortment:

• The assortment includes a total of 36 tubes/connectors, divided into the following sizes and colors:
  • 18 pieces, color Red, internal Ø 5.0 mm, external Ø 6.0 mm, total length 38 mm.
  • 12 pieces, color Blue, internal Ø 6.0 mm, external Ø 7.0 mm, total length 38 mm.
  • 6 pieces, color Yellow, internal Ø 7.0 mm, external Ø 8.0 mm, total length 42 mm.
• The total weight of the assortment is 80 g.
