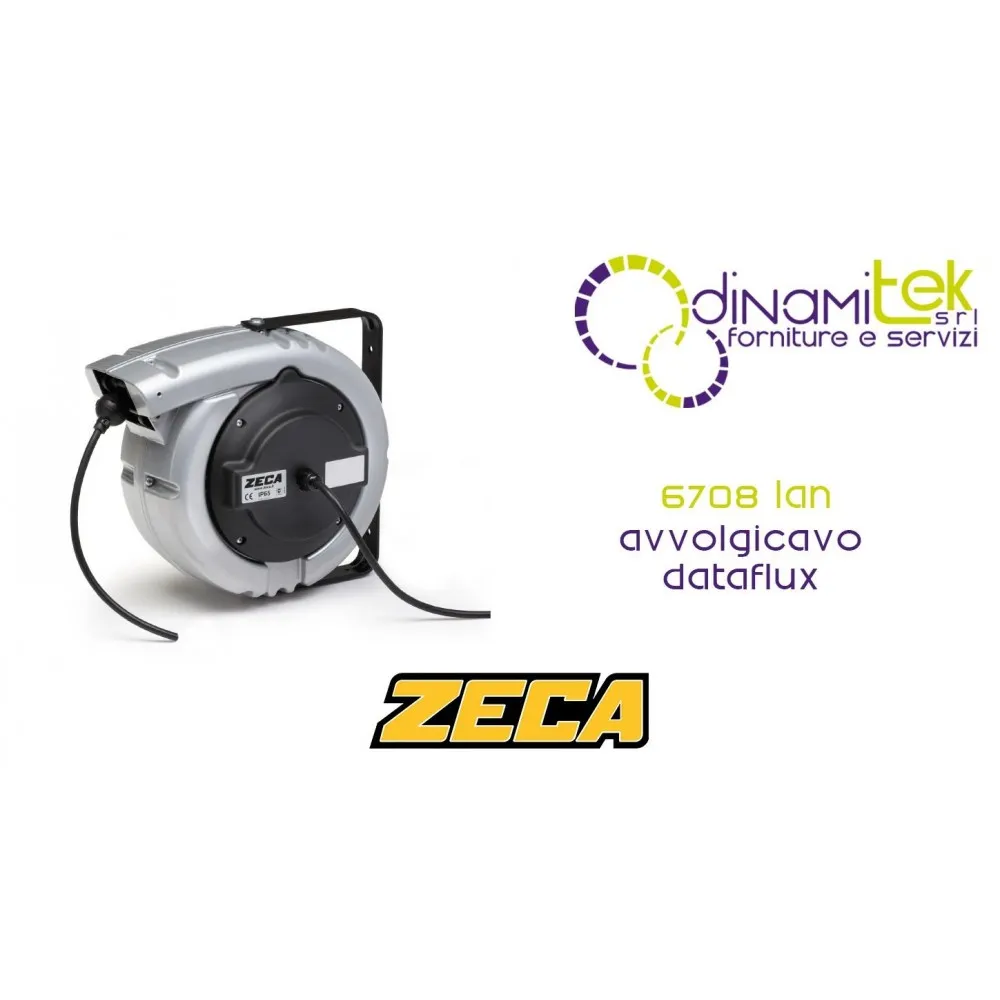

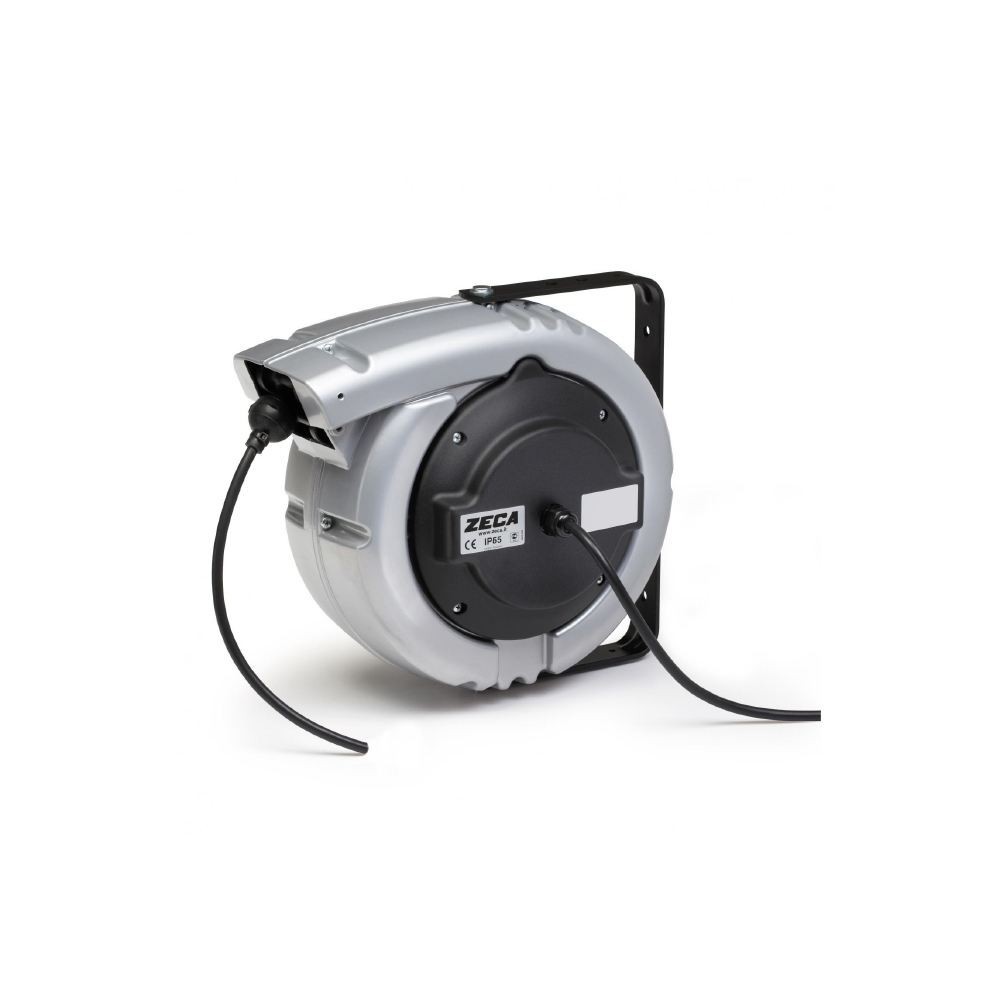

6708 LAN CABLE REEL DATAFLUX ZECA

Zeca 6708 LAN Dataflux Cable Reel

The Dataflux 6708 LAN Cable Reel is a cutting-edge Zeca product, specifically designed for Ethernet network transmission (CAT 5E and CAT 6, also suitable for Gigabit networks) in industrial environments that require maximum protection and stability. This cable reel helps create an extremely tidy and safe work environment, eliminating tripping hazards and damage to LAN cables even in the most severe conditions.

Main Technical Features:

• Cable Composition: Ethernet cable (4 x (2 x 0.15)) C, CAT6 certified for data transmission speed 1Gb/s.
• Cable Length: 20 meters, with 2 meters of input cable.
• Cable Type: Made of PUR (Polyurethane). The cable is sheathed with a flexible PUR/TPE compound, resistant to abrasion, oils, and coolants. It is free of silicone, halogens (compliant with EN 50267-2-1), and lead (compliant with 2011/65/EU ROHS-II). The conductors are bundled and stranded with short pitches, optimized for excellent torsional resistance, ideal for dynamic installations.
• Degree of Protection (IP): IP65 , which ensures complete protection against dust ingress and against powerful jets of water from any direction.
• Dataflux Collector: Equipped with a special collector with 6, 12, or 24 tracks, a maximum current rating of 2A, and a maximum voltage of 48V. The gold alloy rings and brushes ensure extremely high reliability and durability with very low friction. The dielectric strength is 500 VAC at 60 Hz, the insulation resistance is >1000 MΩ/500 VDC, and the noise is less than 100 mΩ. 1 GHz bandwidth.
• Atex: This model is not Atex.
• Cable Diameter: 7.5mm.

Advantages and Applications:

The 6708 LAN is indispensable for mission-critical applications that require reliable Ethernet connectivity in harsh industrial environments, such as advanced robotics, highly automated machinery, and control systems operating in high dust or humidity conditions.
