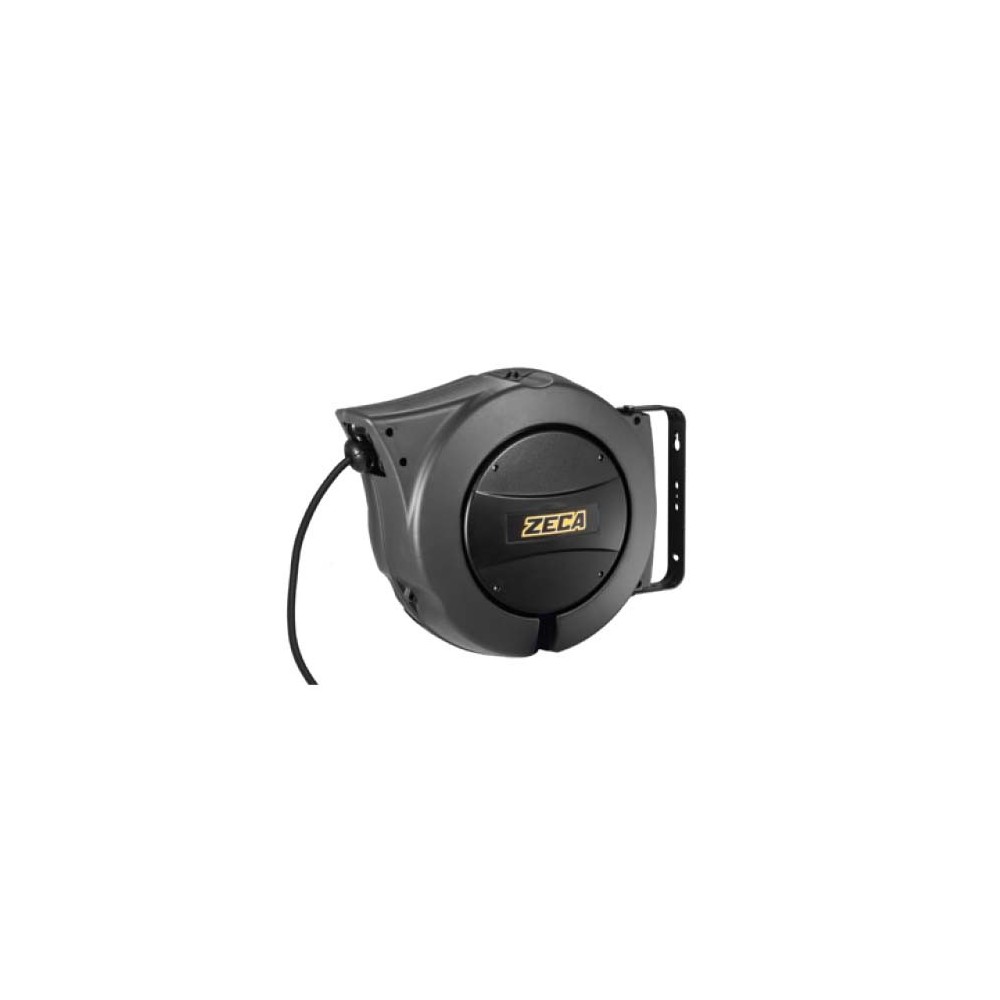

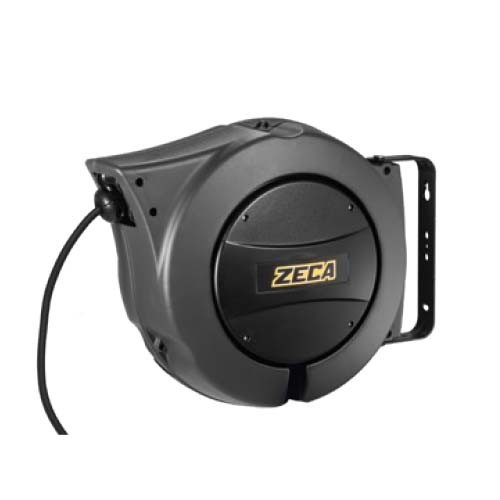

AM70415 CT CABLE REEL CABLE + AIR HOSE TWIN REELS AM70 SERIES ZECA

The mint Twin Reels AM70 Series Cable + Air Hose Reel, model AM70415 CT , is a combined reel designed to efficiently and safely supply both electrical power and compressed air, optimizing space and improving safety in professional environments. Part of mint's renowned Twin Reels series, this model is ideal for maintaining order and continuous operation, especially in contexts such as emergency vehicles and industrial machinery.

General Technical Characteristics of the Winder (AM70 Series):

• Durable Structure: The structural elements of the reel are made of shock-resistant plastic , providing strength and durability even in demanding working conditions.
• Cable Guide Mouth: It is equipped with a roller cable guide mouth , which facilitates the unwinding and rewinding of the cable and hose, preventing wear and tangling.
• Cable Stopper: Includes a ratchet cable stopper , which can be inserted every 50 cm. This mechanism can be easily disengaged if you prefer the cable to remain under constant tension.
• Electrical Safety: It features a double earth contact and a collector isolation voltage of 2.5KV , ensuring high safety standards during use.
• Degree of Protection: With a degree of protection IP42 , the reel is protected against the ingress of solid objects with a diameter greater than 1 mm and against vertically falling drops of water when tilted up to 15°.
• Operating Temperature: It works effectively in an ambient temperature range of -5°C to +50°C .
• Compressed Air Performance: It supports a maximum operating pressure of 15 bar and a maximum vacuum of 0.95 bar , making it suitable for various pneumatic applications.
• Input Cable: Includes a 1.5 meter input cable for easy power connection.
• Rettbox Socket: This model does NOT include a built-in Rettbox (Marechall) socket . Rettbox (Marechall) 12V or 24V flush-mounted sockets, with IP55 protection and coil power for automatic socket ejection, are available as an optional extra (Art. CTS 12V, Art. CTS 24V).
• Atex Certification: The AM70415 CT model is NOT Atex certified .

Detailed Specifications of Model AM70415 CT:

• Cable/Tube Composition: The AM70415 CT model is supplied with 4 conductors with a cross-section of 1.5 mm² , combined with a tube with an internal diameter of 4 mm .
• Cable/Hose Length: The total length of the cable and hose is 9 meters .
• Rated Power: It has a capacity of 1.5 KW at 20°C.
• Maximum Power: Reaches 2 KW at 20°C.
• Maximum Voltage: It is suitable for working with voltages up to 500 V.

Cable and Tube Features (Common to Twin Reels):

The included cable and hose are designed for high performance and durability, as is typical of mint's Twin Reels range:

• Tube Material: The tube is made of PA (Polyamide) .
• Tube Dimensions: It has an internal diameter of 4.00mm and an external diameter of 6.00mm .
• Conductor Insulation: The conductor insulation is PVC .
• Conductor Identification: Conductors are identified with the colors brown, black, gray and green/yellow .
• Outer Cable Jacket: The outer jacket of the cable is made of PVC and is black in color.
• Flame Retardant: The cable complies with the IEC 60332-1 standard for flame retardant.
• Rated and Test Voltage: It has a rated voltage of 300/500 V (50 Hz) and a test voltage of 2.5 kV .
• Cable/Tube Operating Temperature: The operating temperature for the cable and tube ranges from -5°C to +70°C .
• Bend Radius: The bend radius of the cable is 8 x D .

Advantages and Fields of Application:

The mint AM70415 CT cable reel is designed to optimize work environments, offering tangible benefits:

• Improved Order and Safety: Helps eliminate cable and pipe clutter, significantly reducing the risk of tripping and accidental damage.
• Continuous Operation: Ensures that electrical power and compressed air are always available, which are essential for the continuous operation of machinery and vehicles.
• Versatile Use: It is ideal for a wide range of professional settings, including emergency vehicles (such as fire engines), industrial machinery, process control systems, and industrial automation. In these scenarios, it ensures that the vehicles always have the necessary electrical power and fully charged compressed air tanks.

As an option for the AM70 Series, the **Safety Return** braking device (ART- AL83-AM85/SR) is available, which allows for slow retraction of the cable, preventing dangerous kickbacks if the cable slips from the operator's hand. The new **Quick Fit** coupling is also a feature associated with the AM70 Series for ease of installation.
