18-22003-010 CABLE REEL WITH CLAMP AND CONTROL UNIT ZECA

Maximum protection for critical operations! The Zeca ART. 18-22003-010 cable reel with clamp and integrated control unit is your solution for safe grounding in potentially explosive environments. Designed to prevent dangerous electrostatic discharges, it ensures peace of mind during your operations when transferring flammable substances. With 4 meters of cable and a plastic casing, it's an essential ally for ATEX safety.

Shipping cost: €200.00 for
1566,21 €
Tax included

1.283,78 € Tax excluded

Quantity
Available product, order it now.

Explosion-Proof Earthing Cable Reel with Clamp and Control Unit - ART. 18-22003-010

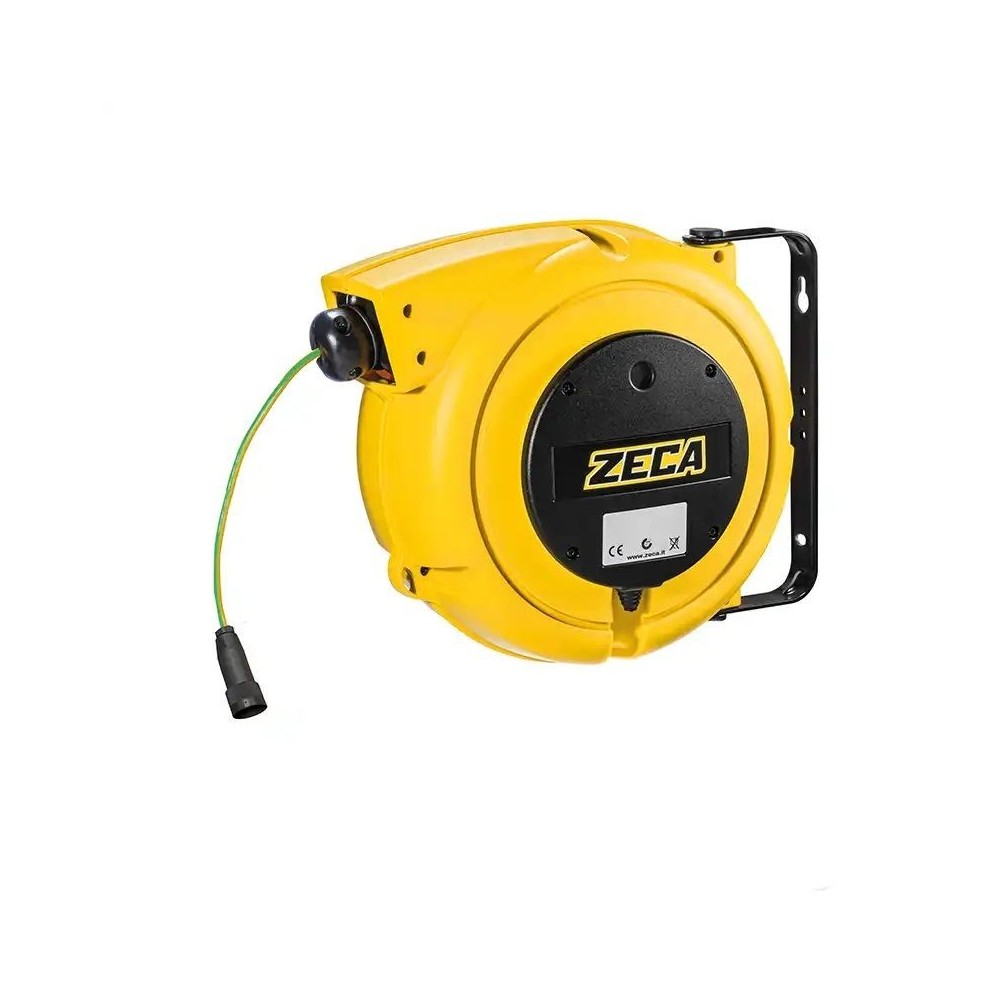

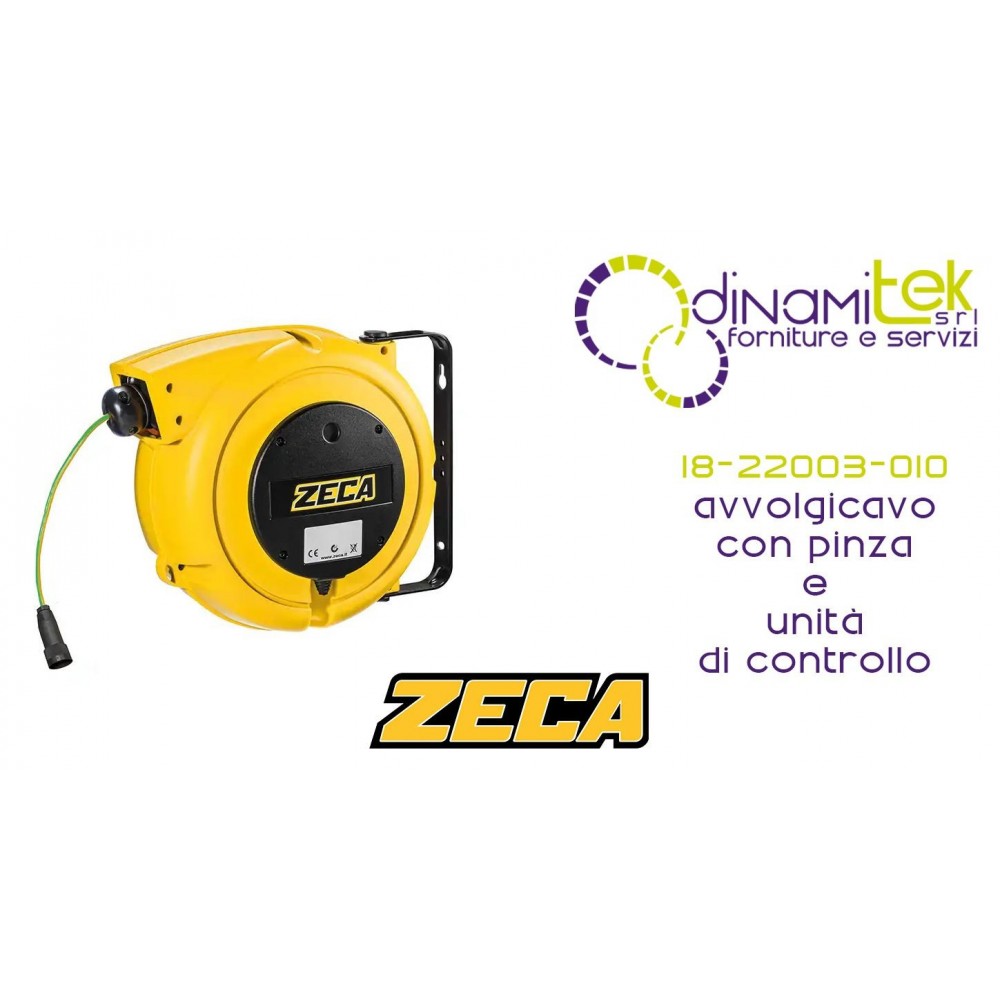

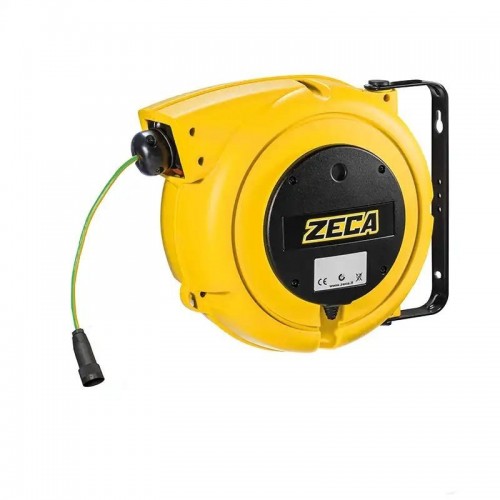

The ZECA ART. 18-22003-010 cable reel is an advanced grounding device, specifically designed for use in potentially explosive atmospheres. It's a complete solution that includes a rugged cable reel, a grounding clamp, and a control unit.

Main Technical Features:

  • Directive Compliance: The product fully complies with European directives 2014/34/EU (ATEX) and 2014/30/EU (EMC).
  • Detailed ATEX Marking:
    • EAD 09 CR cable reel: Marked for gases (II 2(1)G Ex ia [ia Ga] IIB/IIC T6 Gb) and dust (II 2(1)D Ex ia [ia Ga] IIIC T85°C Db).
    • Earthing Clamp EAD 09 CL: Marked for gases (II 1G Ex ia IIB/IIC T6 Ga) and dust (II 1D Ex ia IIIC T85°C Da).
    • EAD 09 CR Control Unit: Marked for gases (II (1)G [Ex ia Ga] IIB/IIC – II3 (1)G Ex nA nC [ia Ga] IIB/IIC T4 Gc) and dust (II (1) [Ex ia Da] IIIC).
  • Certification: Has the EC Type Examination Certificate BVS 09 ATEX E 156 X and IECEx BVS 10.0024 X.
  • Cable Length: Comes with 4 meters of cable.
  • Cable Specifications: Cable includes 1 x 4mm² conductor plus 2 x 1mm² conductors.
  • Structure: The casing of the cable reel is made of plastic.
  • Dimensions: The overall dimensions of the cable reel are approximately 350mm (length) x 170mm (height) x 160mm (depth).

Applications and Benefits:

This cable reel is essential for transferring fuel from tanks containing flammable substances, such as in the aviation, refinery, naval, and tanker industries. Its primary function is to prevent the formation of dangerous electrostatic charges, ensuring a completely safe working environment. It can be installed either on the grounding pole or directly on the tanker, offering flexibility of use. It is important to note that the ATEX certification is valid only for the entire assembly consisting of the reel, clamp, and control unit. It is the installer's responsibility to verify current regulations and choose the product with the correct technical characteristics for the installation area.
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



18-22003-010
