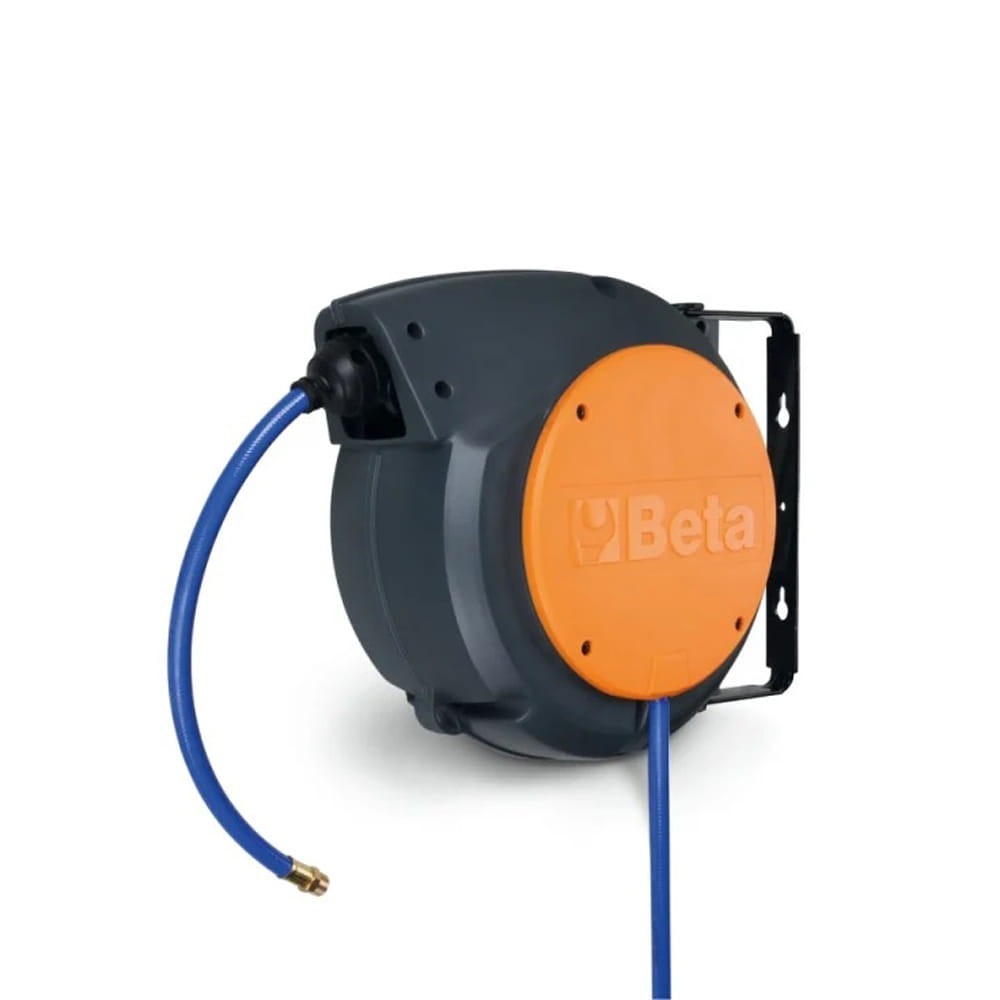

1900S 8X10 AIR AND WATER HOSE REEL 10M DIAMETER 8 BETA

The beta Utensili 1900S 8x10 Automatic Hose Reel is the ideal solution for conveying compressed air or cold water . Equipped with an 8 mm hose and a length of 10 m , it offers practicality and safety for any work environment, with an automatic locking and rewinding system.

Here you can find the demonstration video presenting the range https://youtu.be/wWvEcF2yHsg

Shipping cost: Free for
87 €
Tax included

71,31 € Tax excluded

Quantity
Available product, order it now.

The beta Utensili 1900S 8x10 is a high quality automatic hose reel, designed to offer maximum efficiency and safety in the operations of conveying compressed air or cold water. This hose reel guarantees reliable and long-lasting performance in compliance with European standards.

Main Features and Operation

  • Automatic Mechanism: The Art. 1900S 8x10 model stands out for its automatic winding mechanism which simplifies use and keeps the work area tidy.
  • Easy Extraction: Allows for smooth and controlled tube extraction; simply pull the tube to the desired length.
  • Secure Locking: The automatic locking system, activated by an audible spring ratchet (perceptible with a mechanical noise), holds the tube in place.
  • Guided Rewinding: To rewind, a light pull releases the mechanism, allowing the hose to retract in an assisted and safe manner.
  • Retraction limiter: It is equipped with a retraction limiter that stops the hose from rolling up completely.
  • Deactivation Block: It is possible to deactivate the automatic stop system for specific needs, an operation to be carried out with the hose completely rewound.

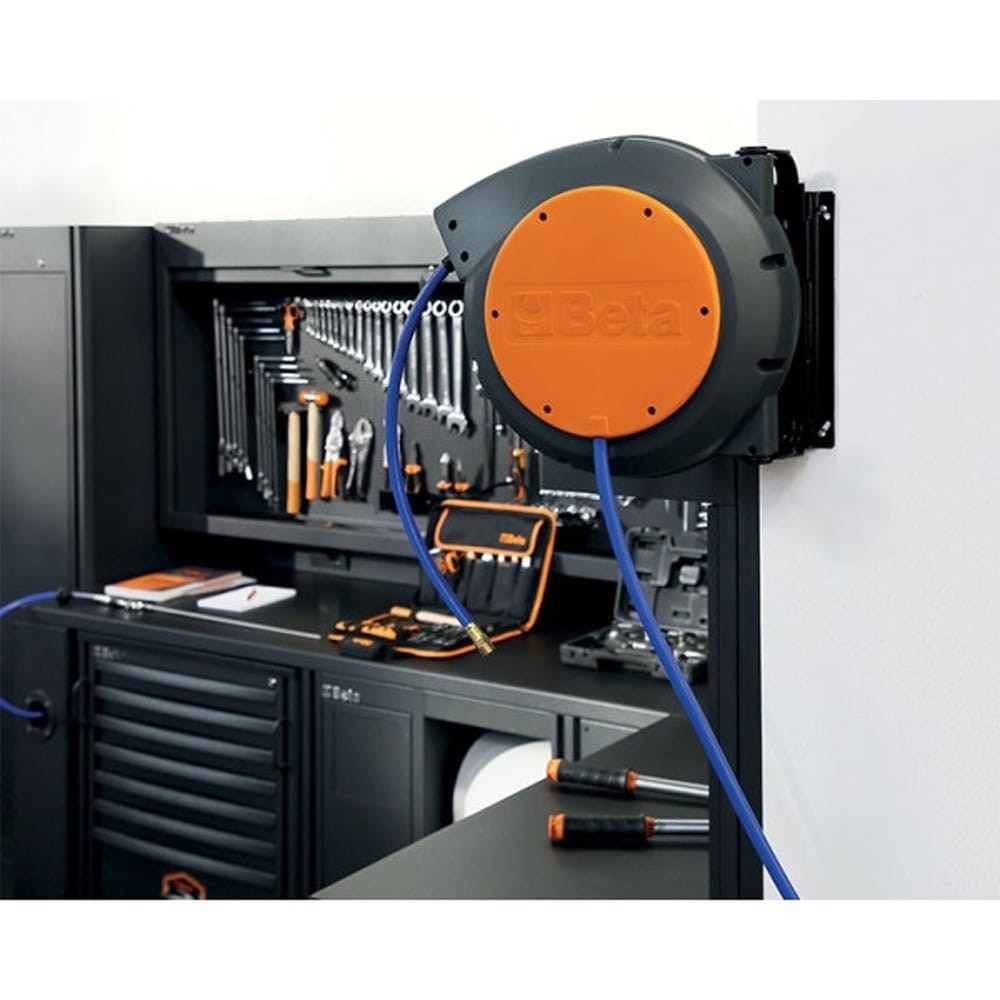

  • Sturdy Fixing: Installation is done by firmly fixing the metal swivel bracket to a wall or solid structure, ensuring the load is held correctly.
  • Filtration System: It is advisable to connect the hose reel to a compressed air supply system with a solid particle filter system.

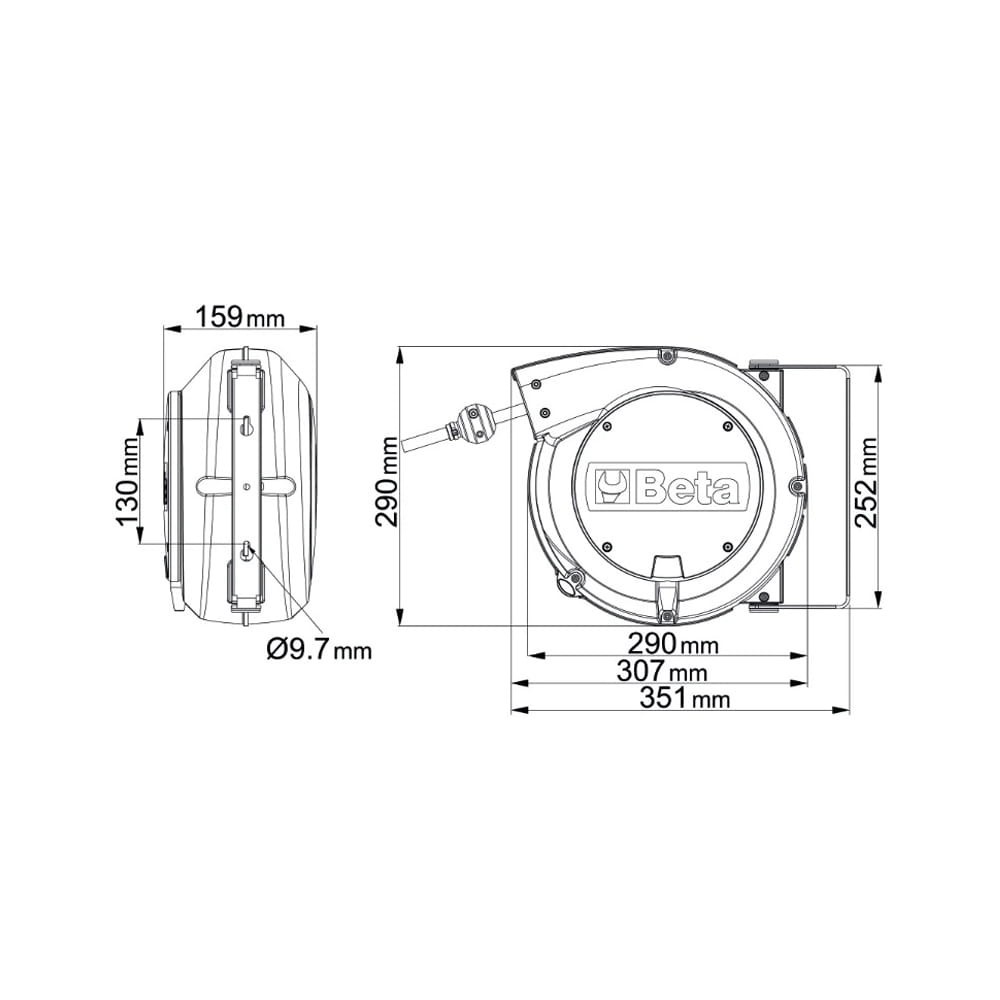

Technical Specifications (Model 1900S 8x10)

Item Ø Tube Tube Length Attack Type Usage Operating Temp. Maximum Pressure
1900S 8x10 8mm 10 m ¼” BSP Air / Water -5°C/+50°C 15 bars

Correct Use and Safety Warnings

The 1900S hose reel is versatile and can also be used outdoors , but it is essential to avoid exposing it directly to bad weather or sunlight.

WARNING - Operations NOT permitted:

  • Use with combustible “liquids and/or gases” substances.
  • Use with corrosive substances.
  • Use with fluids at temperatures higher than those indicated in the "Technical Data" table.
  • Use of the flexible hose for hooking and dragging material activities.
  • Modifications to the automatic hose reel.
  • Hose reel overload.
  • Do not direct compressed air or fluid at people or animals.

For personal safety , we recommend maximum attention and always wearing the appropriate personal protective equipment (PPE):

  • Protective glasses
  • Heat-resistant protective gloves
  • Physical agent protection mask
Beta Utensili è Leader nel campo della produzione e vendita di utensili professionali.


1900S
