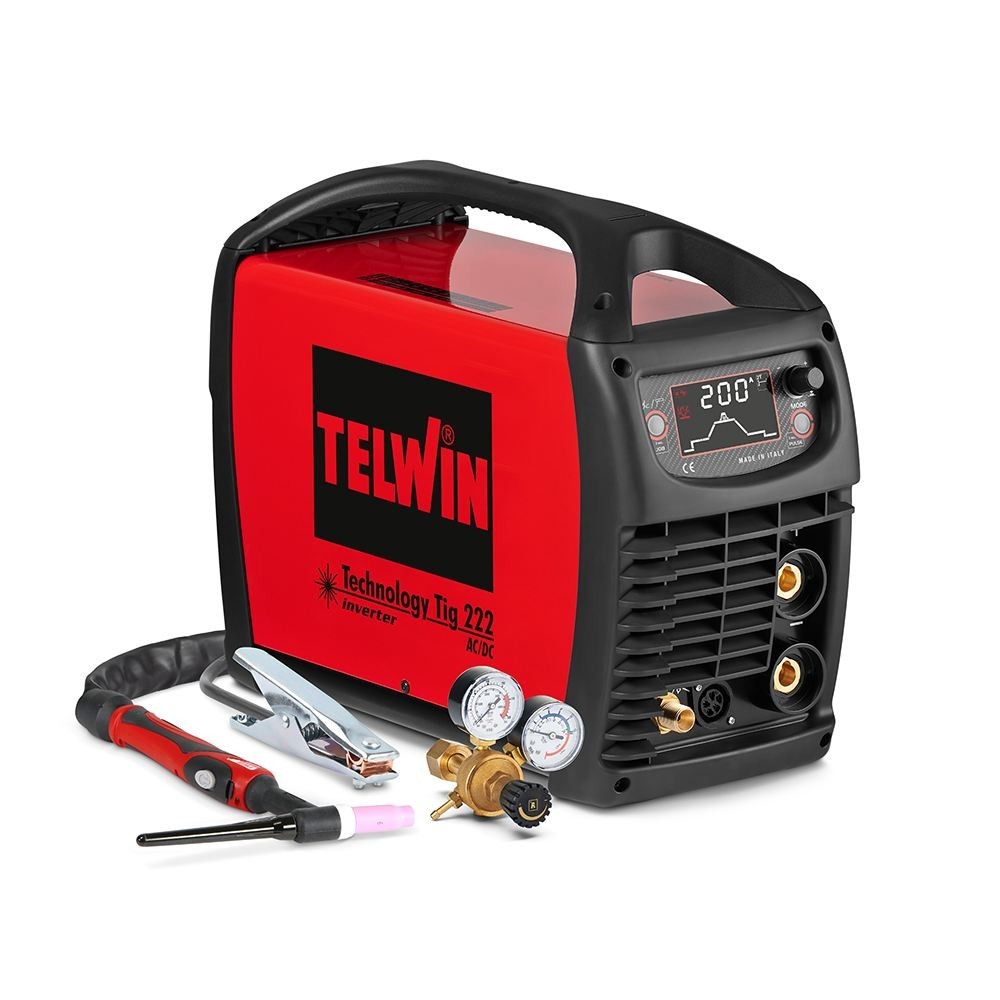

816242 TECHNOLOGY TIG 222 AC-DC 230V WELDING MACHINE AND TELWIN ACC.

The ultimate professional package for aluminum welding, ready to hit the field! The Telwin Technology Tig 222 AC/DC (code 816242) is the 200A single-phase inverter welder that offers total control on any material, from stainless steel to magnesium. Thanks to the included accessory kit and intuitive LCD display, you can take advantage of advanced utilities such as ThinSpot for invisible spot welding on thin sheets and the MIX AC-DC system for large pieces. Robust, precise, and equipped with a dedicated ventilation tunnel to protect the electronics, it is the ideal tool for the workshop that strives for aesthetic and structural perfection.

Shipping cost: Gratis for
2020,49 €
Tax included

1.656,14 € Tax excluded

Quantity
Available product, order it now.

Telwin Technology Tig 222 AC/DC: Technology and Power in a Complete Kit

The Technology Tig 222 AC/DC is a high-tech, microprocessor-controlled inverter welding system, operating in TIG (HF or LIFT ignition) and MMA in both direct current (DC) and alternating current (AC) [1, 3]. This version is supplied complete with accessories for the TIG process, ensuring immediate operation on aluminium, titanium, copper and noble alloys [1, 4].

Advanced Features for the Professional Welder

  • LCD control: The integrated screen allows for simplified and millimetric adjustment of all the welding curve parameters (pre-gas, currents, ramps, AC/DC balance).
  • ThinSpot: Exclusive function for fast and cold spot welding of very thin sheets, ensuring precision without deformation.
  • MIX AC-DC: Allows you to alternate alternating and direct current phases, ideal for optimally heating pieces with significant masses before the actual welding.
  • Pulsed and Easy Pulse: Reduces heat input by stabilizing the arc, essential for working on minimum thicknesses.
  • Job Memory: You can save and recall up to 10 custom programs to speed up recurring jobs.

Reliability and Pulsed MMA Welding

In MMA mode, the machine excels with basic electrodes thanks to the MMA Pulse function, which guarantees superior results in positional welding. Protection is best in its class: the dedicated tunnel system channels cooling air, isolating sensitive components from dust and metal debris. It also includes the VRD device for maximum safety in humid environments.

Main Technical Specifications

  • Product code: 816242.
  • Current regulation range: 5 - 200 A.
  • Power supply: 230 V single phase.
  • Duty cycle (at 40°C): 200A @ 35%.
  • MMA electrode diameter: 1.6 to 4 mm.
  • Weight and Dimensions: 16.55 kg | 47 x 19 x 35 cm.
  • Degree of protection: IP23.

Equipment Included

The machine is supplied ready to use with:

  • TIG welding kit (ST26 torch and accessories).
  • Ground cable and clamp.
