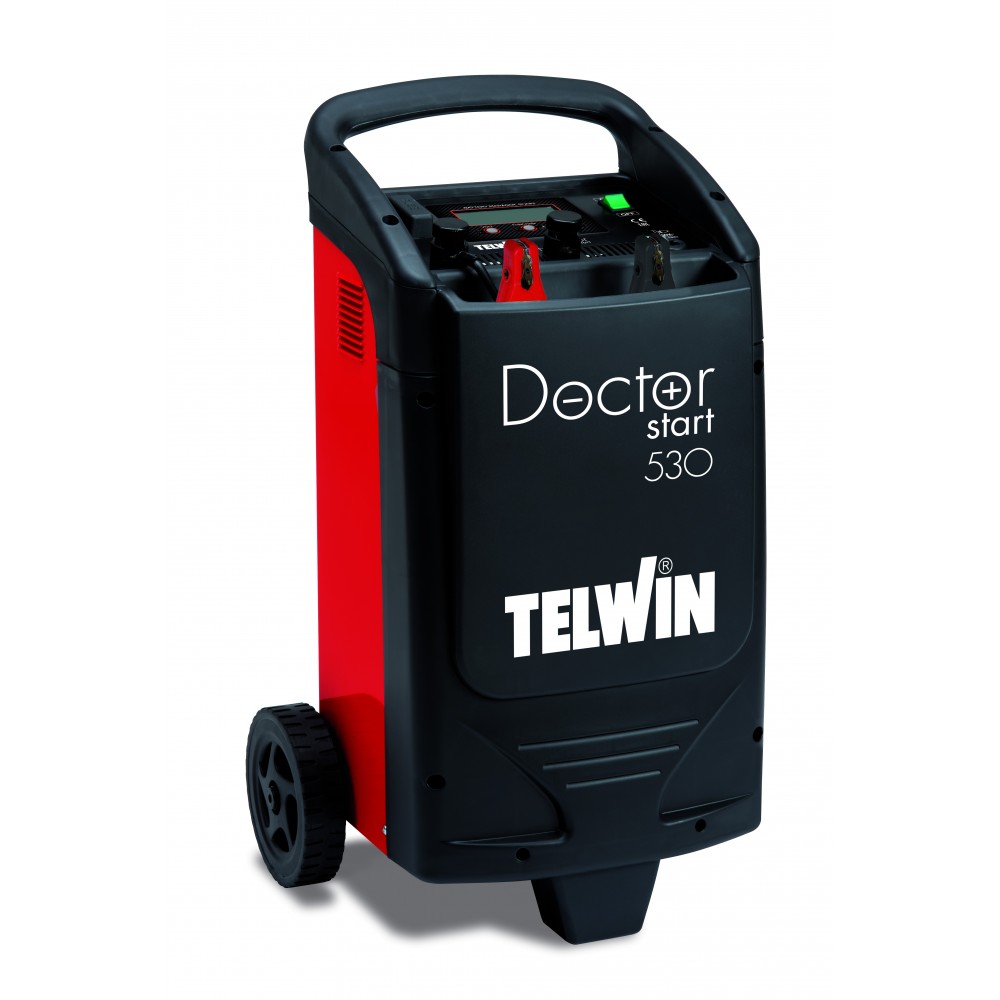

DOCTOR START 530 230V 12V-24V STARTER TELWIN

DOCTOR START 530 230V 12V/24V
code 829343
Multifunction electronic battery charger, starter and tester (BATTERY MANAGER), for WET, GEL, AGM, MF, PbCa, EFB and Li batteries with 12/24V voltage.
It guarantees complete battery maintenance and quick starting of all types of cars, vans and light trucks.
It becomes an indispensable tool for stable power supply during battery replacement.
Easy and intuitive use thanks to the graphic LCD screen.
Characteristics:
- Automatic charging and maintenance in Pulse Tronic;
- Battery, starter and alternator tests;
- Battery regeneration and recovery;
- Stable power source for battery changes (on-board electronics safeguard);
- Starting of all types of cars, vans, light trucks.
1 PH 230V
MOTORCYCLE
CAR
BOAT
TRACTOR
VAN
TIR
EXCAVATOR
VAN
CE MARKING
EAC CERTIFICATION

CODE 829343
STARTING CURRENT 1V/C EN60335-2-29 300 A
SINGLE-PHASE MAINS VOLTAGE 230 V
MAXIMUM STARTING CURRENT 400 A
MAINS FREQUENCY 50 / 60 Hz
RATED CAPACITY REF. MIN. 10 A
CHARGING POWER 1.6 KW
NOM. CAPACITY REF. MAX 1000 Ah
STARTING POWER 10 KW
ADJUSTMENT POSITIONS 7
CHARGING VOLTAGE 12 / 24 V
DIMENSIONS 36.5 x 46 x 75.5 cm
EFFECTIVE CHARGING CURRENT 75 A
WEIGHT 19.5 kg
CHARGING CURRENT EN60335-2-2 950 A
EAN CODE 8056151817617
