824051 PTE 28 LCD 400V SPOT WELDER TELWIN

PTE 28 LCD 400V SPOT WELDING MACHINE

Shipping cost: €50.00 for
5659,64 €
Tax included

4.639,05 € Tax excluded

Quantity
Available product, order it now.

PTE 28 LCD 400V
code 824051

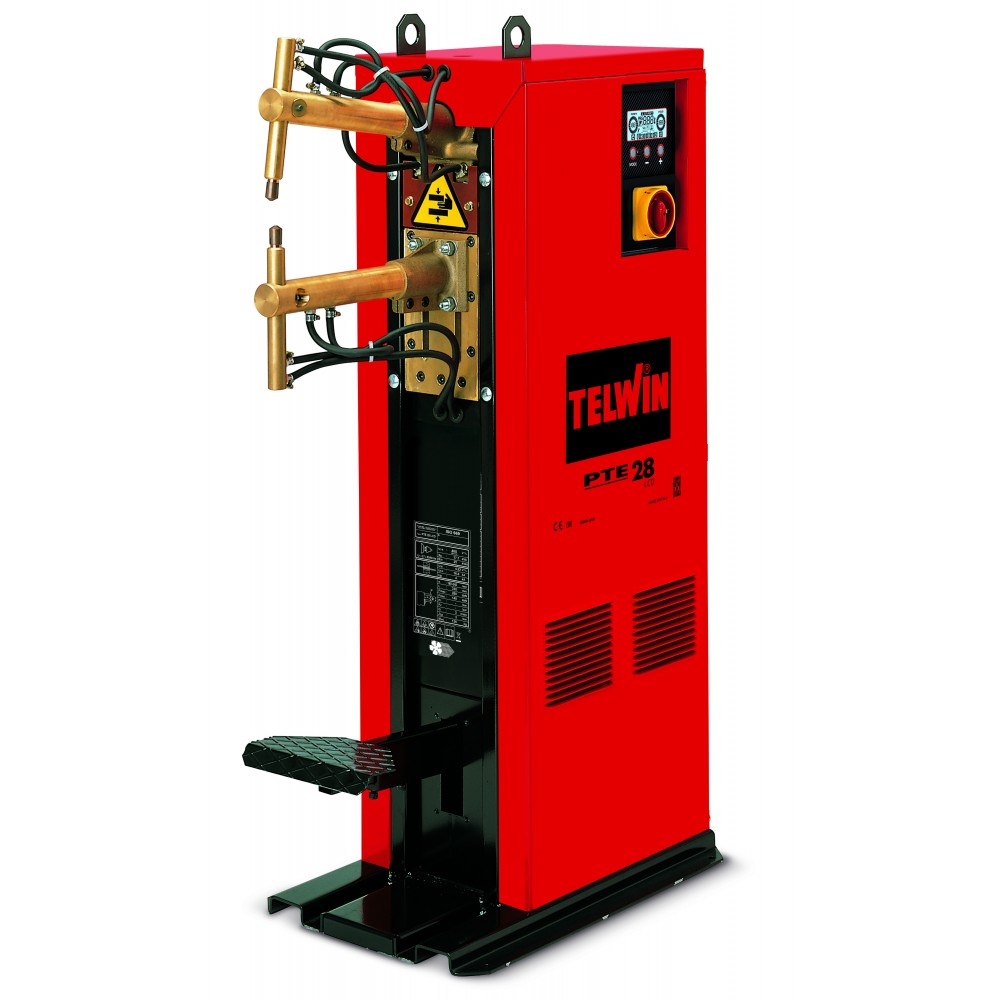

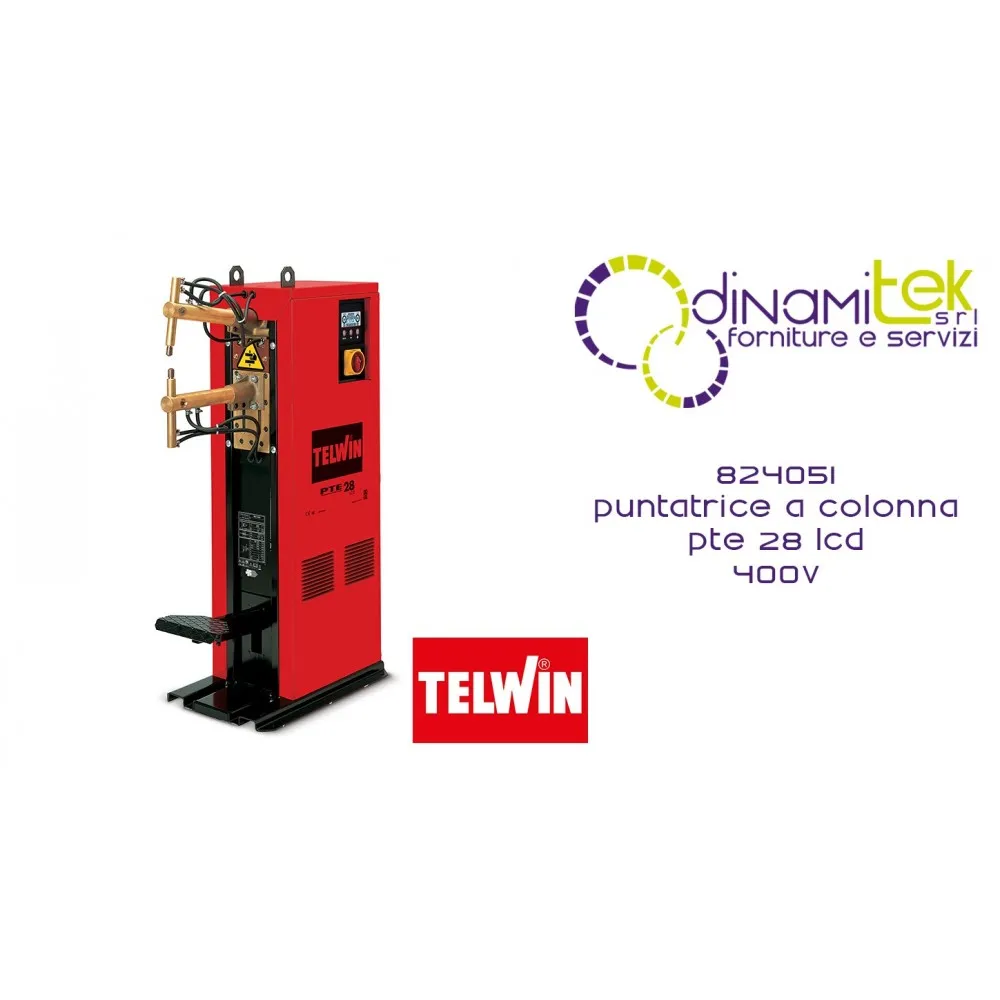

Column-type resistance welder (spot welder), with oscillating arm, with digital microprocessor control.
The multifunctional LCD digital panel allows you to operate: in EASY mode (setting the current and spot welding time); in EXPERT mode (setting different spot welding parameters) with the option of saving up to 20 customized programs. Continuous and pulsed operation ensures excellent welding results on various types of steel.
Characteristics:
- adjustment of spot welding current (%), spot welding time (cycles), electrode closing force
- choice of various parameters of the spot welding cycle (approach time, ramp time, welding time, pause time and number of pulses)
- easy-to-read LCD display
- mechanical pedal operation
- adjustment of the gauge of the arms
- thermal protection with signalling
The model requires water cooling of the electrodes and arms.
2 PH 400V
CE MARKING
EAC CERTIFICATION

ARM L=350 MM 443021
STANDARD STRAIGHT ELECTRODE XP 690035

CODE 824051
MAXIMUM FORCE AT THE ELECTRODES 220 daN
TWO-PHASE MAINS VOLTAGE 400 V
ARM PROJECTION 330 mm
MAINS FREQUENCY 50 / 60 Hz
INTERMITTENCE RATIO 5.5%
MAX SPOT WELDING CURRENT 16400 A
PROTECTION DEGREE IP20 MAX NO LOAD VOLTAGE 4.2 V
DIMENSIONS 79 x 32 x 128 cm MAX ABSORBED POWER 60 kVA
WEIGHT 147 kg
RATED POWER X=50% 25 VA
EAN CODE 800489797156 8
POWER FACTOR (cosphi) 0.7
MAXIMUM THICKNESS OF 2 SIDES 5 + 5 mm
