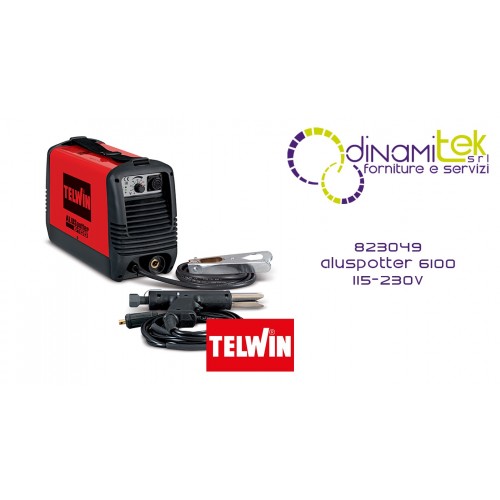

SPOT ALUSPOTTER 6100 115-230V
|2
ALUSPOTTER 6100 115-230V
code 823049
Generator for capacitive discharge welding of pin capacitors with a diameter of 3 to 8 mm and other accessories, with tip ignition.
Suitable for installation, maintenance and heating applications.
It allows the welding of pins on untreated or non-oxidized surfaces, made of steel, stainless steel, galvanized steel, brass and especially aluminum.
The short duration of the welding process does not cause any alteration to the opposite surface even if painted, plasticized or galvanized.
Automatic voltage change 115-230V.
Complete with gun, ground cable with clamp and accessories.
1 PH 115V-230V
115V-230V AUTOMATIC
DENT PULLER
CE MARKING
EAC CERTIFICATION
CABLE 25 MMQ 2 M 123466
ALUSPOTTER KIT 610080
2107 TOLEDO 300 GROUND CLAMP 712231
CODE 823049
POINTING TIME 1 - 3 ms
SINGLE-PHASE MAINS VOLTAGE 115 / 230 V
NUMBER OF POINTABLE PINS 20 studs/min
MAINS FREQUENCY 50 / 60 Hz
DIAMETER OF POINTABLE PINS 3 - 8 mm
MAX NO LOAD VOLTAGE 12 V
PROTECTION DEGREE IP23
MAX ABSORBED POWER 0.9 kW
DIMENSIONS 43 x 17 x 29 cm
POWER FACTOR (cosphi) 0.8
WEIGHT 15.5 kg
CAPACITY 66000 µF
EAN CODE 800489770533 0
WELDING ENERGY 1500 J max
