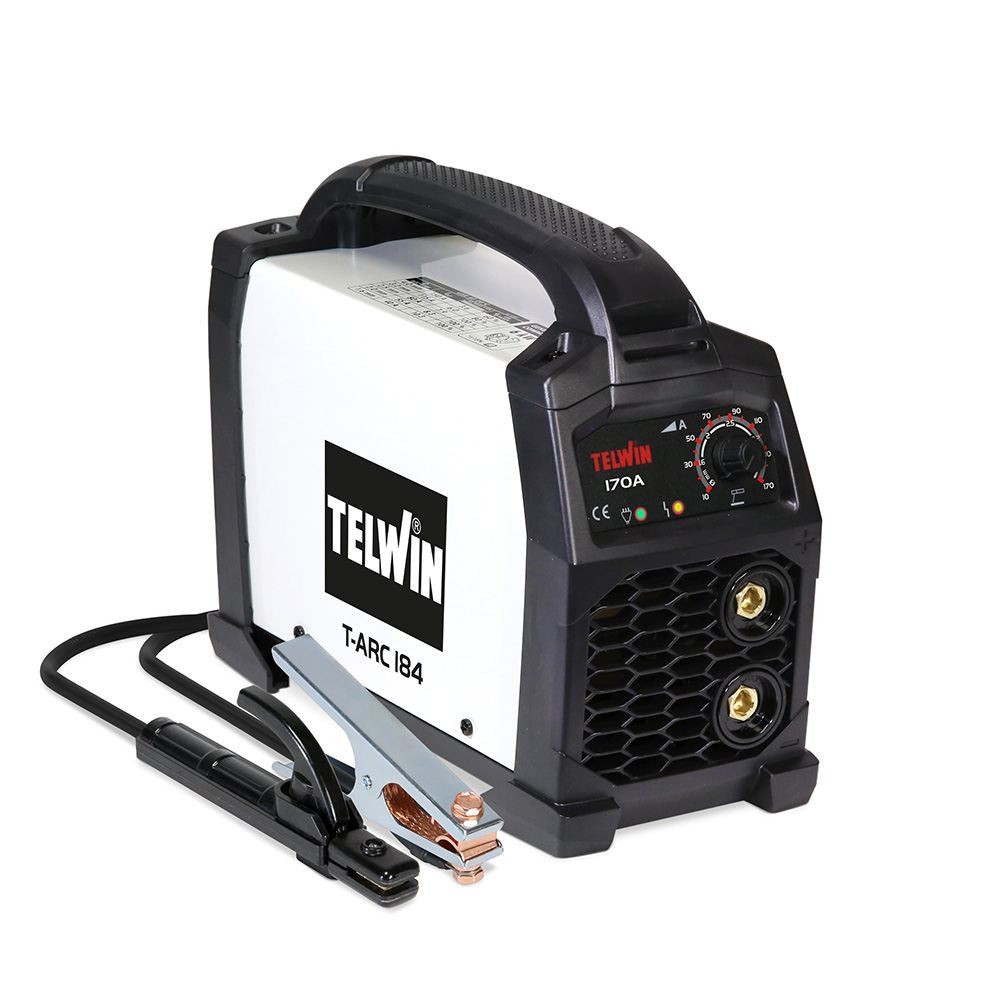

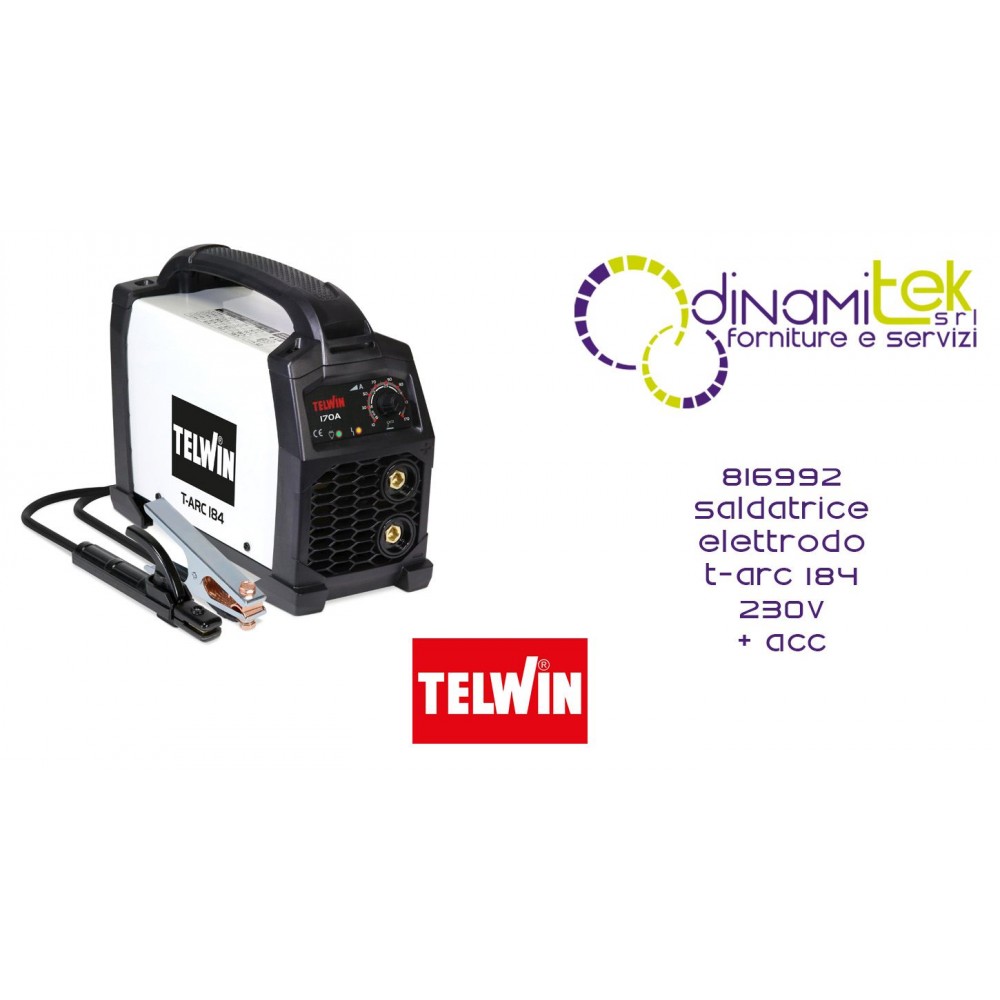

816992 TELWIN T-ARC 184 230V AND ACC ELECTRODE WELDING MACHINE

Maximum power and precision for advanced DIY! The Telwin T-ARC 184 (code 816992) is the 170A inverter welder from the Elements line, designed for those seeking superior performance in an ultra-compact format. Capable of handling electrodes up to 4 mm , it is not limited to MMA welding but also offers the versatility of the direct current (DC) TIG process with scratch striking. Weighing just 4 kg and featuring advanced Arc Force, Hot Start and Anti-Stick devices, it is the ideal tool for carrying out creative projects and maintenance work with impeccable results and minimal effort.

Shipping cost: Gratis for
219,11 €
Tax included

179,60 € Tax excluded

Quantity
Available product, order it now.

Telwin T-ARC 184: Professional Power for DIY Experts

The T-ARC 184 represents the top of the range of portable welding machines in the Telwin Elements series. Thanks to a generous adjustment range (10-170A) and a high-performance duty cycle (75% at 170A at 20°C), this machine allows you to tackle intensive work sessions on steel, stainless steel and cast iron.

Advanced Control and Dual Mode MMA/TIG

The latest generation inverter electronics ensures total control of the welding arc:

  • Multi-process Utility: In addition to classic MMA electrode welding, the machine is set up for the TIG-DC process with scratch striking, ensuring high-quality finishes on thin thicknesses.
  • Intelligent Devices: Integrates the Arc Force and Hot Start systems to facilitate ignition and bath fluidity, together with the Anti-Stick function that prevents the electrode from sticking.
  • Total Stability: Ensures uniform cords by automatically compensating for fluctuations in mains voltage.

Extreme Reliability and Transportability

Designed to be the ideal companion on any home or workshop construction site, the T-ARC 184 is extremely lightweight (4 kg) and compact. It is perfectly compatible with generators , supporting voltage variations of +/- 15% (minimum recommended power 7.5 kW).

Main Technical Specifications

  • Product code: 816992.
  • Current regulation range: 10 - 170 A.
  • Single-phase mains voltage: 200 - 240 V.
  • Usable electrode diameter: from 1.6 to 4 mm.
  • Energy efficiency: 82% with low consumption.
  • Degree of protection: IP21.

Accessories Supplied

The welder is ready to use and comes complete with an accessory kit for MMA welding:

  • 16 mm² cable (1.8 m) with electrode holder.
  • 16 mm² cable (1.8 m) with ground clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
