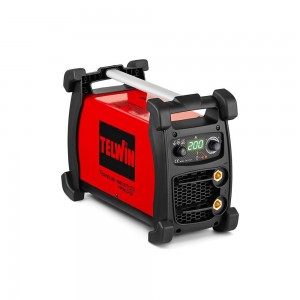

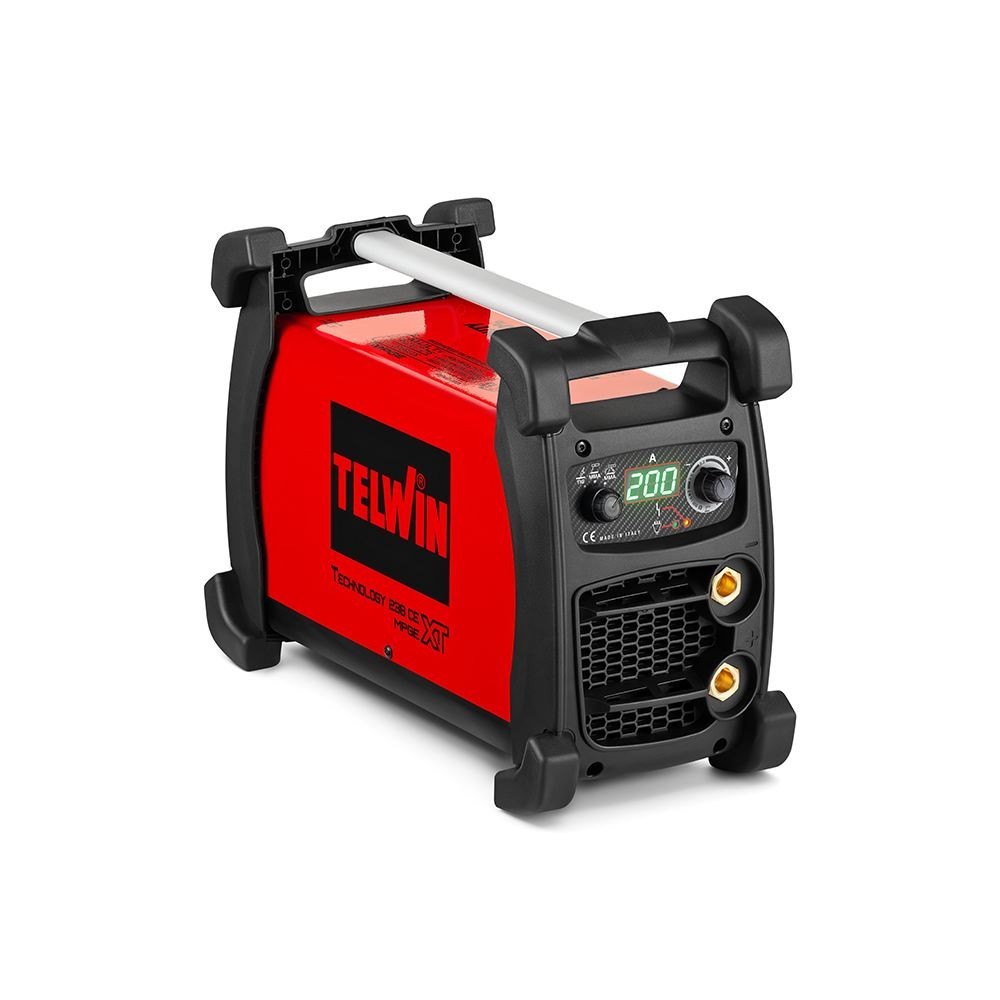

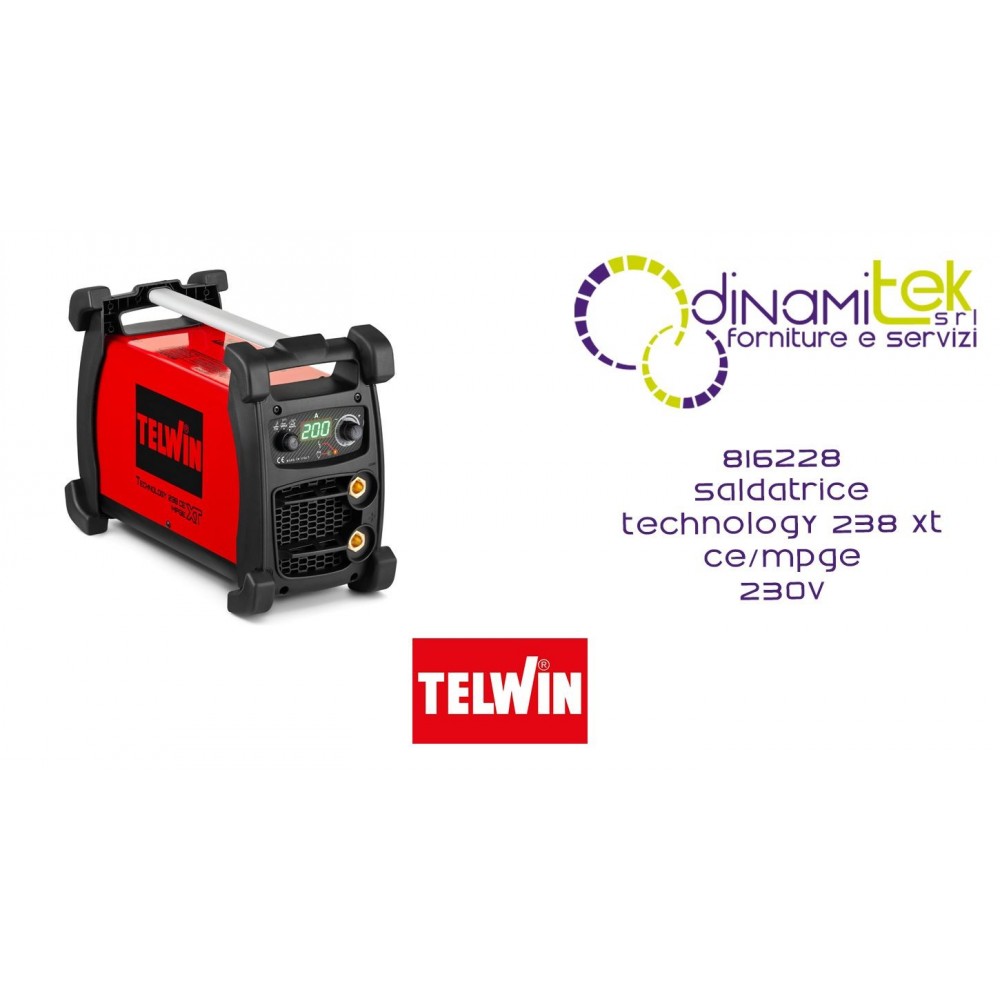

816228 TELWIN TECHNOLOGY 238 XT CE-MPGE 230V WELDING MACHINE

Maximum power and total protection, even with the most unstable energy! The Telwin Technology 238 XT CE/MPGE (code 816228) is the 200A MMA and TIG inverter welding machine designed for professionals who work in extreme conditions. Thanks to the exclusive MPGE device, it guarantees excellent and safe performance even when powered by motor generators or electrical networks subject to strong fluctuations. Robust, impact-resistant and capable of handling any type of electrode (including cellulose ) up to 4 mm, it is the definitive "eXtra Tough" tool for construction sites and industrial maintenance.

Shipping cost: Gratis for
471,04 €
Tax included

386,10 € Tax excluded

Quantity
Available product, order it now.

Telwin Technology 238 XT CE/MPGE: Inverter Technology and Multiple Protection

The Technology 238 XT represents the professional evolution of the XT range, combining legendary structural robustness with superior electronic protection. This single-phase (230V) inverter power source is specifically optimised for MMA and TIG electrode welding in direct current (DC) with scratch striking.

MPGE Device: The Motogenerator Specialist

The true technological heart of this model is the MPGE (Multi Protection for Generator) system. This device integrates waveform control, a filter against input voltage spikes and an oscillation stabilizer. These features make the 238 XT the ideal choice for those working on remote sites powered by generators, where current stability is not guaranteed.

Versatility and Arc Control

  • Cellulosic Electrodes: Unlike many standard models, the 238 XT offers arc dynamics perfect for welding with cellulosic electrodes, as well as rutile, basic, stainless steel and cast iron.
  • Advanced Devices: Integrates Arc Force, Hot Start and Anti-Stick systems, which ensure easy ignition, an extremely stable arc and prevent the electrode from sticking to the workpiece.
  • Digital Display: Allows millimetric adjustment of the current (5-200A) and constant monitoring of the parameters during work.

"eXtra Tough" construction

Designed to last, the machine features a reinforced, impact-resistant structure. It features a sturdy metal carrying handle and 50mm quick-connect connectors to ensure smooth and safe power flow without overheating the accessories.

Main Technical Specifications

  • Product code: 816228.
  • Current regulation range: 5 - 200 A.
  • Duty cycle (at 40°C): 200A @ 35%
  • Usable electrode diameter: from 1.6 to 4 mm.
  • Weight & Dimensions: 7.235 kg | 42 x 18.2 x 29.2 cm.
  • Degree of protection: IP23.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
