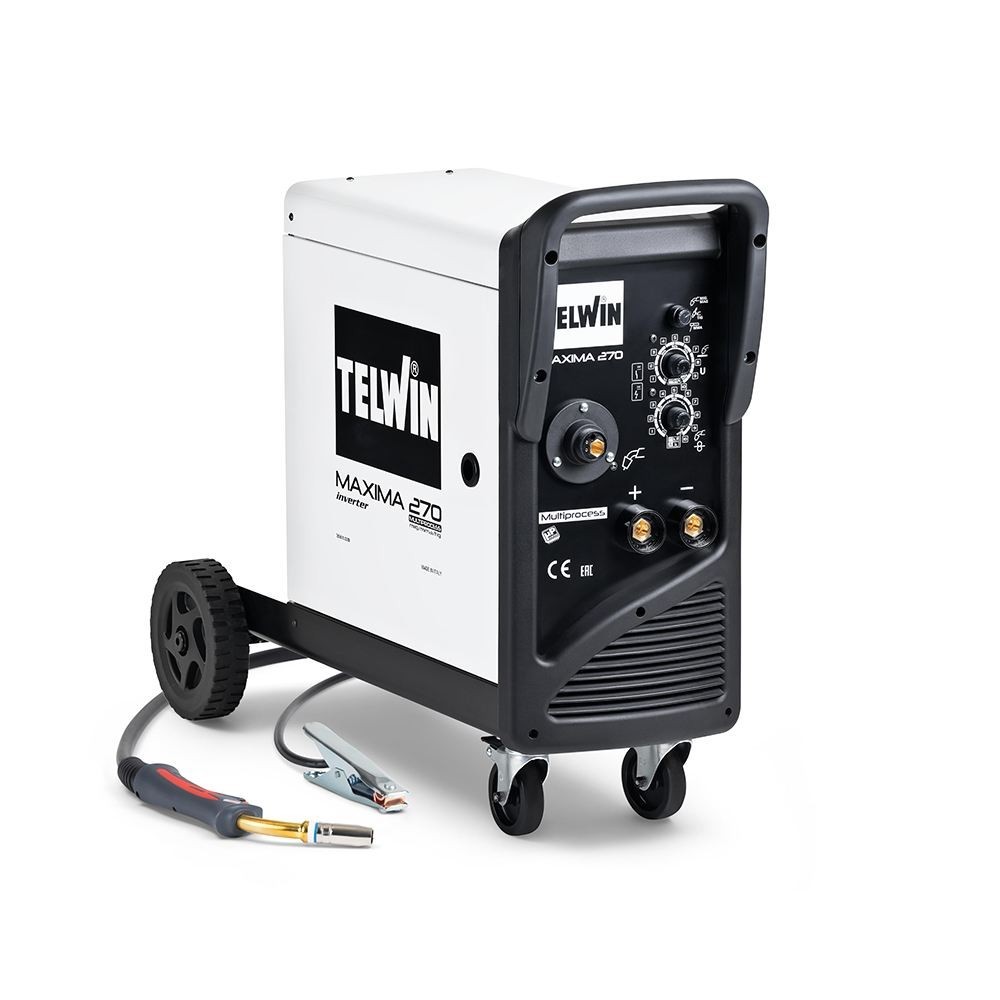

MAXIMA 270 230V MIG-MAG 1PH WELDING MACHINE TELWIN

MAXIMA 270 230V WELDER

Shipping cost: Gratis for
1080,01 €
Tax included

885,25 € Tax excluded

Quantity
Available product, order it now.


MAXIMA 270 230V
code 816126
Microprocessor-controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-LIFT wire inverter welder.
It ensures great versatility in the use of different welded materials (steel, stainless steel, aluminum) and in possible applications, from maintenance to installation.
The simplicity and immediacy of adjusting the welding parameters makes the product easy to use and guarantees consistently excellent results, even for the least experienced operator.
Lightweight and compact, it can be easily transported to all intervention sites.
Characteristics:
- arc-force regulation in MMA,
- centralized torch connection,
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
Complete with torch, cable and earth clamp.
MMA TIG DC LIFT
MIG-MAG FLUX
1 PH 230V
15 kg REEL
CE MARKING
EAC CERTIFICATION

CABLE 124887
MT25 MIG TORCH 3M 742183
TOLEDO 300 GROUND CLAMP 712231

CODE 816126
SINGLE-PHASE MAINS VOLTAGE 230 V
POWER FACTOR (cosphi) 0.7
MAINS FREQUENCY 50 / 60 Hz
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
CURRENT REGULATION RANGE 20 - 250 A
D. STEEL WELDING WIRE 0.6 - 1.2 mm
MAX DC CURRENT (EN 60974-1) 220 @ 20% A
D. STAINLESS STEEL WELDING WIRE 0.8 - 1 mm
DC1 CURRENT 30 A
D. ALUMINUM WELDING WIRE 0.8 - 1 mm
MAX NO LOAD VOLTAGE 60 V
D. 0.8 - 1.2 mm COOLED WELDING WIRE
MAXIMUM ABSORBED CURRENT 39 A
D. BRAZING WIRE 0.8 - 1 mm
CURRENT ABSORBED AT 60% - MAX 22 A
PROTECTION DEGREE IP23
MAX ABSORBED POWER 6.3 kW
DIMENSIONS 82.5 x 36 x 67 cm
POWER CONSUMPTION AT 60% 3.3 kW
WEIGHT 23 kg
YIELD 87%
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
