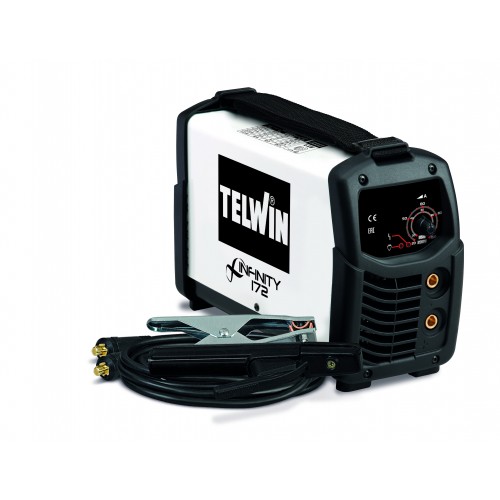

INFINITY 172 115V/230V ACC.
code 816125
MMA and TIG electrode inverter welder in direct current (DC) with scratch striking.
Flexibility of use with the most varied types of electrodes: rutile, basic, stainless steel, cast iron, etc.
Characteristics:
- dual voltage 115V / 230V automatic,
- compact and lightweight,
- high stability of the welding current to variations in the supply voltage,
- arc force, hot start, anti-stick devices,
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
Complete with accessories for MMA welding.
MMA DC
CE MARKING
1 PH 230V
EAC CERTIFICATION
CABLE 16 MMQ 1.8 M - ATLAS PLUG 25 124508
DALLAS 300 ELECTRODE HOLDER CLAMP 300A 712260
TOLEDO 250 GROUND CLAMP 250A 712030
CODE 816125
MINIMUM POWER OF MOTOR GENERATOR 5 / 6 kW
SINGLE-PHASE MAINS VOLTAGE 115 / 230 V
MAINS FUSE 20 / 16 A
MAINS FREQUENCY 50 / 60 Hz
YIELD 87%
CURRENT REGULATION RANGE 20 - 100 / 20 - 150 A
POWER FACTOR (cosphi) 0.7
MAX DC CURRENT (EN 60974-1) 90 @ 50% / 140 @ 25% A
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
DC CURRENT 80 / 80 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 75 V
DIMENSIONS 35.5 x 14.5 x 24 cm
MAXIMUM ABSORBED CURRENT 29 / 28 A
WEIGHT 4.94 kg
CURRENT ABSORBED AT 60% - MAX 26 / 14 A
EAN CODE 800489717082 4
MAX ABSORBED POWER 2.6 / 4.4 kW
PIECES / PALLET 56 pcs/pallet
POWER CONSUMPTION AT 60% 2.2 / 2.1 kW
PIECES / PALLET - B48 pieces/pallet B
