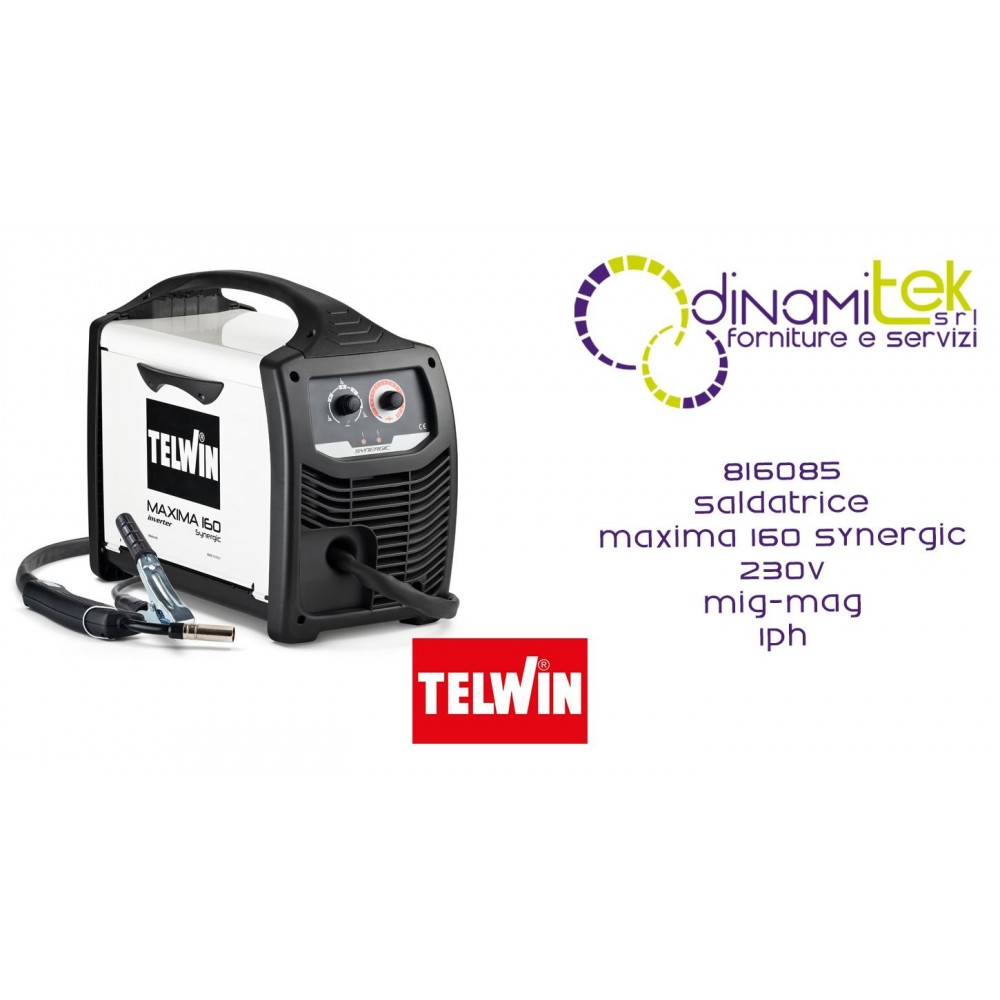

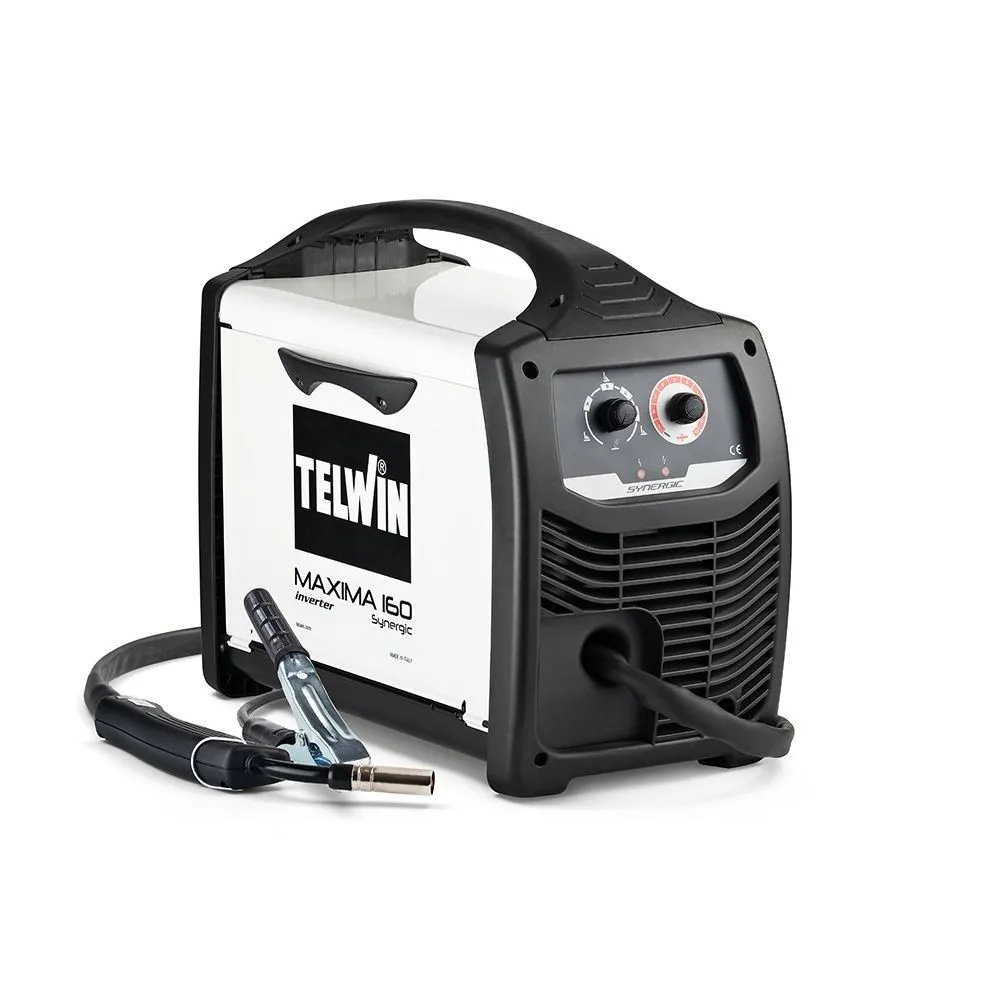

MAXIMA 160 SYNERGIC 230V MIG-MAG 1PH WELDING MACHINE TELWIN

MAXIMA 160 SYNERGIC 230V WELDER

Shipping cost: Free for
528 €
Tax included

432,79 € Tax excluded

Quantity
Available product, order it now.


MAXIMA 160 SYNERGIC 230V
code 816085
Microprocessor-controlled MIG-MAG/FLUX/BRAZING wire inverter welder. It offers great versatility when welding different materials (steel, stainless steel, aluminum) and a wide range of applications, from maintenance to installation.
The SYNERGIC adjustment of the welding parameters makes the product simple to use and guarantees an always excellent result even for the less experienced operator.
Lightweight and compact, it can be easily transported to all internal and external intervention sites.
Characteristics:
- Polarity change for GAS MIG-MAG/BRAZING welding
- Thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
Prepared for NO GAS/Flux welding, convertible to MIG-MAG with optional kit.
Complete with MIG-MAG torch, cable and earth clamp
MIG-MAG FLUX
1 PH 230V
5 kg REEL
CE MARKING
EAC CERTIFICATION

CABLE 16 MMQ 1.8 M 124502
TW160 MIG TORCH 2M 742402
COLORADO 150B GROUND CLAMP 150A 712001

CODE 816085
POWER FACTOR (cosphi) 0.7
SINGLE-PHASE MAINS VOLTAGE 230 V
D. STEEL WELDING WIRE 0.6 - 0.8 mm
MAINS FREQUENCY 50 / 60 Hz
D. STAINLESS STEEL WELDING WIRE 0.8 mm
CURRENT REGULATION RANGE 20 - 150 A
D. ALUMINUM WELDING WIRE 0.8 - 1 mm
MAX DC CURRENT (EN 60974-1) 115 @ 20% A
D. 0.8 - 1.2 mm COOLED WELDING WIRE
DC CURRENT 65 A
D. BRAZING WIRE 0.8 mm
MAX NO LOAD VOLTAGE 44 V
PROTECTION DEGREE IP23
MAXIMUM ABSORBED CURRENT 18 A
DIMENSIONS 45 X 23.5 X 37 cm
CURRENT ABSORBED AT 60% - MAX 9 A
WEIGHT 9.29 kg
MAX ABSORBED POWER 2.6 kW
EAN CODE 800489797599 3
POWER CONSUMPTION AT 60% 1.2 kW
PIECES / PALLET 18 pcs/pallet
16 A MAINS FUSE
PIECES / PALLET - B12 pieces/pallet B
YIELD 86%
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
