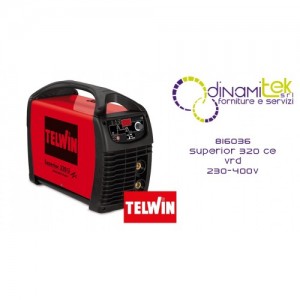

816036 SALDATRICE SUPERIOR 320 CE VRD 230-400V TELWIN Dinamitek 1
  • 816036 SALDATRICE SUPERIOR 320 CE VRD 230-400V TELWIN Dinamitek 1
  • 816036 SALDATRICE SUPERIOR 320 CE VRD 230-400V TELWIN Dinamitek 2

SUPERIOR 320 CE VRD 230-400V MMA INVERTER 3PH WELDER TELWIN

SUPERIOR 320 CE VRD 230-400V WELDING MACHINE

Shipping cost: Free for
1280,38 €
Tax included

1.049,49 € Tax excluded

Quantity
Available product, order it now.

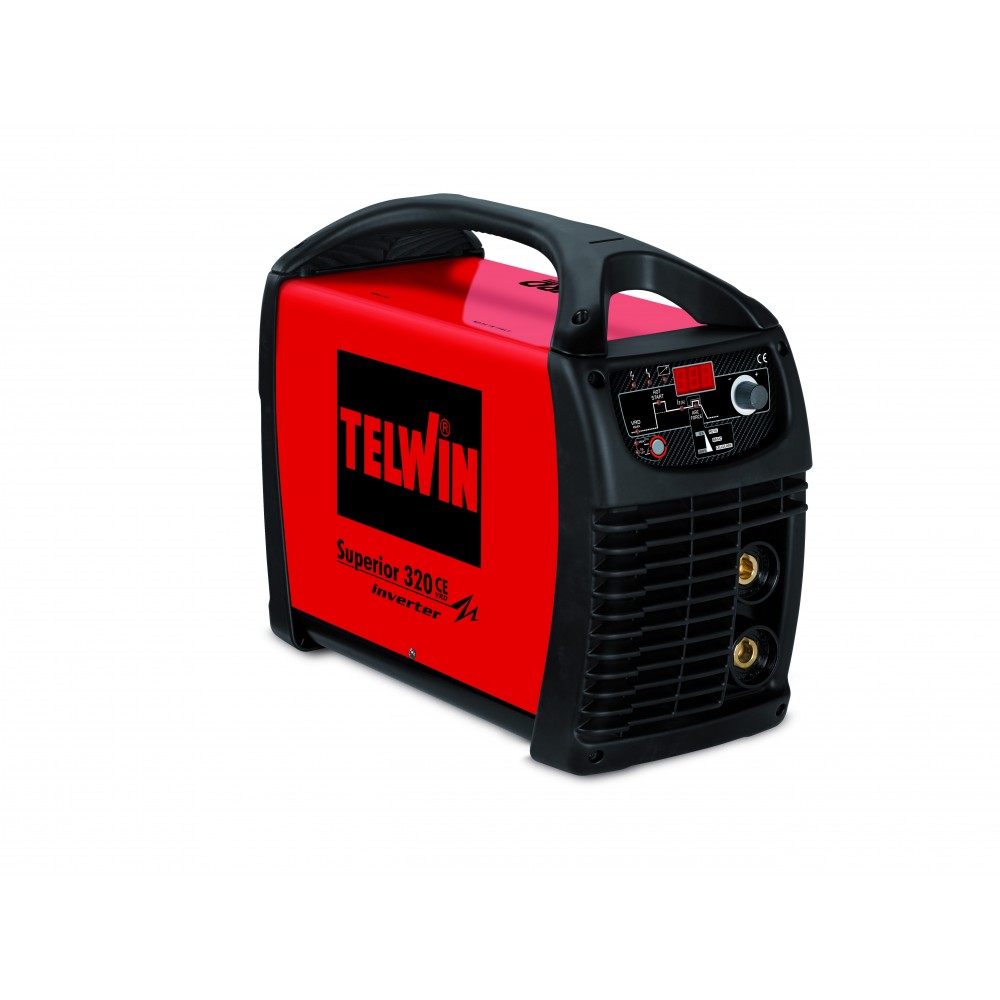

SUPERIOR 320 CE VRD 230-400V
code 816036
MMA and TIG-LIFT electrode inverter welding machine in direct current (DC) with microprocessor control.
Designed for welding cellulosic electrodes and coated electrodes such as aluminum, rutile, basic, stainless steel, cast iron up to a diameter of 6 mm.
Characteristics:
- compact and lightweight
- high stability of the welding current in the event of variations in the supply voltage
- instant control of welding droplet transfer
- arc force and hot start adjustment depending on the type of electrode in use
- anti-stick device
- VRD device
- remote control ready
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
MMA TIG DC LIFT
3 PH 230V-400V
REMOTE CONTROLS
CE MARKING
TIG, DC, LIFT
EAC CERTIFICATION

CODE 816036
MINIMUM POWER OF MOTOR GENERATOR 10 / 13 kW
THREE-PHASE MAINS VOLTAGE 230 / 400 V
90% YIELD
MAINS FREQUENCY 50 / 60 Hz
POWER FACTOR (cosphi) 0.9 CURRENT REGULATION RANGE 10 - 250 / 10 - 270 A
D. ELECTRODES USABLE IN DC 1.6 - 6 mm
MAX DC CURRENT (EN 60974-1)220 @ 42% / 270 @ 35% A
PROTECTION DEGREE IP23
DC CURRENT 185 / 205 A
DIMENSIONS 47 x 19 x 35 cm
MAX NO LOAD VOLTAGE 60 / 63 V
WEIGHT 10.2 kg
MAXIMUM ABSORBED CURRENT 19 / 14.4 A
EAN CODE 800489794207 0
CURRENT ABSORBED AT 60% - MAX 15 / 10 A
PIECES / PALLET 21 pcs/pallet
MAX ABSORBED POWER 7 / 9 kW
PIECES / PALLET - B14 pieces/pallet B
POWER CONSUMPTION AT 60%
6 / 6.5 kW
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816036

You might also like

802032 TELWIN CYLINDER CONNECTION KIT FOR TECHNOMIG 180 210 215 Dinamitek 1

802032 TELWIN DISPOSABLE CYLINDER CONNECTION KIT

The ready-to-use solution for your gas welding! The Telwin Disposable Cylinder Connection Kit (802032) is the essential accessory for those who want to use practical, non-refillable cylinders with their welding machine. Thanks to the quick connection and extensive compatibility, this complete set allows you to set up your station in just a few moments,...
Price €37.11
Available product, order it now.
802036 TELWIN ALUMINUM WELDING KIT FOR TECHNOMIG 180

802036 TELWIN ALUMINUM WELDING KIT FOR TECHNOMIG 180

Configure your aluminum welding machine in an instant! The original Telwin kit (code 802036) is the complete, ready-to-use solution for those who want to perform precision welding on aluminum using 0.8 mm wire. Designed to ensure maximum compatibility and smooth operation, this set includes everything you need—from the specific feed roller to torch...
Price €49.96
Last items in stock
802817 ALUMINUM WELDING KIT DIAM. 0.8-1 MM TELWIN Dinamitek 1

802817 TELWIN ALUMINUM WELDING KIT, DIAM. 0.8-1 MM

Smooth, professional-grade aluminum welding! The original Telwin kit (code 802817) is the complete set designed for those who demand maximum fluidity in MIG welding aluminum. Designed to handle 0.8 mm and 1.0 mm wires, this kit includes critical components such as the specific sheath and the "U"-shaped wire feed roller, essential for preventing crushing...
Price €88.50
Available product, order it now.

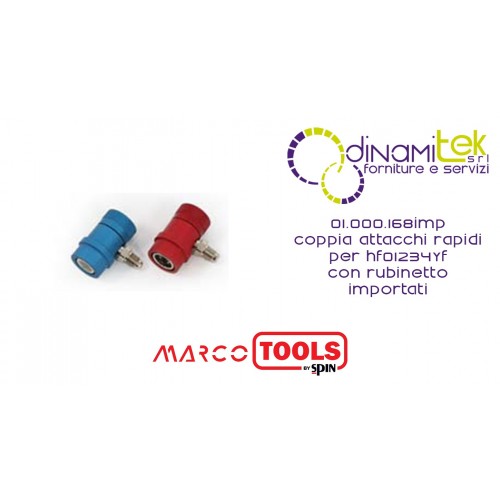

01.000.168IMP COPPIA ATTACCHI RAPIDI PER HF01234yf, CON RUBINETTO IMPORTATI SPIN MARCO TOOLS Dinamitek 1
