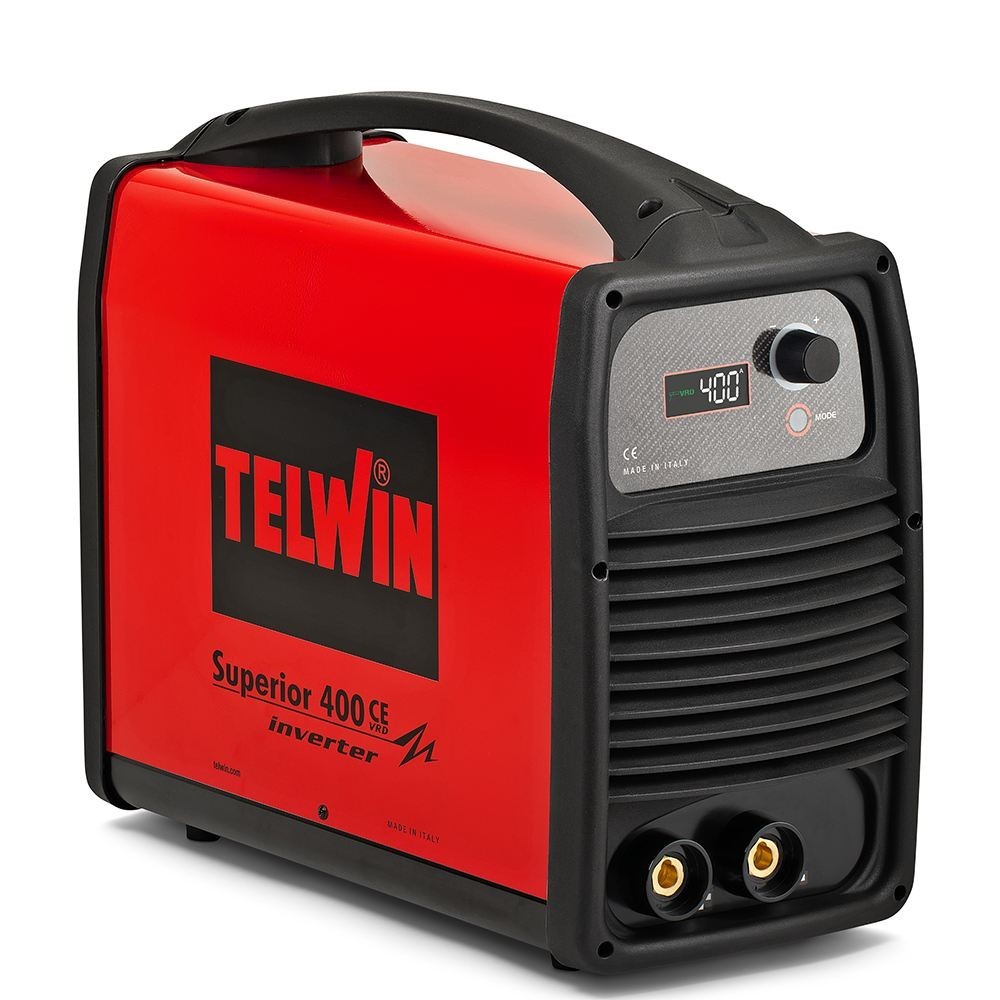

SUPERIOR 400 CE VRD 230-400V WELDING MACHINE TELWIN

The brute force of the industrial inverter for cellulose electrodes and gouging! The Telwin Superior 400 CE VRD (code 816156) is the 400A multiprocess inverter power source designed for the most extreme applications on construction sites and in heavy industry. Thanks to its multivoltage technology (230/400V) and MMA Pulse mode, it guarantees excellent results even on critical materials and in positional welding, offering total control via the integrated LCD screen. Sturdy, compact, and equipped with a dust-proof ventilation tunnel , it is the ultimate tool for those who require total versatility, from TIG-Lift welding to gouging with carbon electrodes.

Shipping cost: Gratis for
1855,62 €
Tax included

1.521,00 € Tax excluded

Quantity
Available product, order it now.

Telwin Superior 400 CE VRD: Inverter Excellence for Heavy-Duty Applications

The Superior 400 CE VRD represents a professional, high-power solution for MMA and TIG-LIFT electrode welding in direct current (DC). Its advanced electronics make it ideal for use in industrial settings where maximum reliability and power supply flexibility are required.

Advanced Control and Pulsed MMA

  • Cellulosic Specialist: The generator is optimized for the use of cellulosic electrodes, ensuring best-in-class arc stability and weld pool control.
  • MMA Pulse: This mode reduces heat input and improves arc control, making it essential for vertical or overhead welding and with basic electrodes.
  • LCD Interface: The high-resolution screen allows for simplified interaction for the millimetric setting of Hot Start, Arc Force and for monitoring gouging parameters.

Safety and Durability in Hostile Environments

  • VRD Device: The Voltage Reduction Device system increases operator safety by reducing the output voltage when the machine is on but not in use, allowing work in humid environments.
  • Tunnel Protection: The cooling system channels air into a dedicated tunnel that isolates the electronic boards from conductive dust and dirt, dramatically extending the life of the machine.
  • Generator Compatibility: Designed to withstand strong voltage fluctuations (+15%/-25%), it works perfectly with generator sets.

Main Technical Specifications

  • Product code: 816156.
  • Current regulation range (400V): 10 - 400 A.
  • Maximum current (EN60974-1): 400A @ 40%.
  • Extra functions: Gouging with carbon electrodes up to 10mm.
  • Usable electrode diameter: from 1.6 to 6 mm (capacity up to 8 mm for specific coatings).
  • Weight and Dimensions: 19.5 kg | 53 x 24 x 45 cm.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
