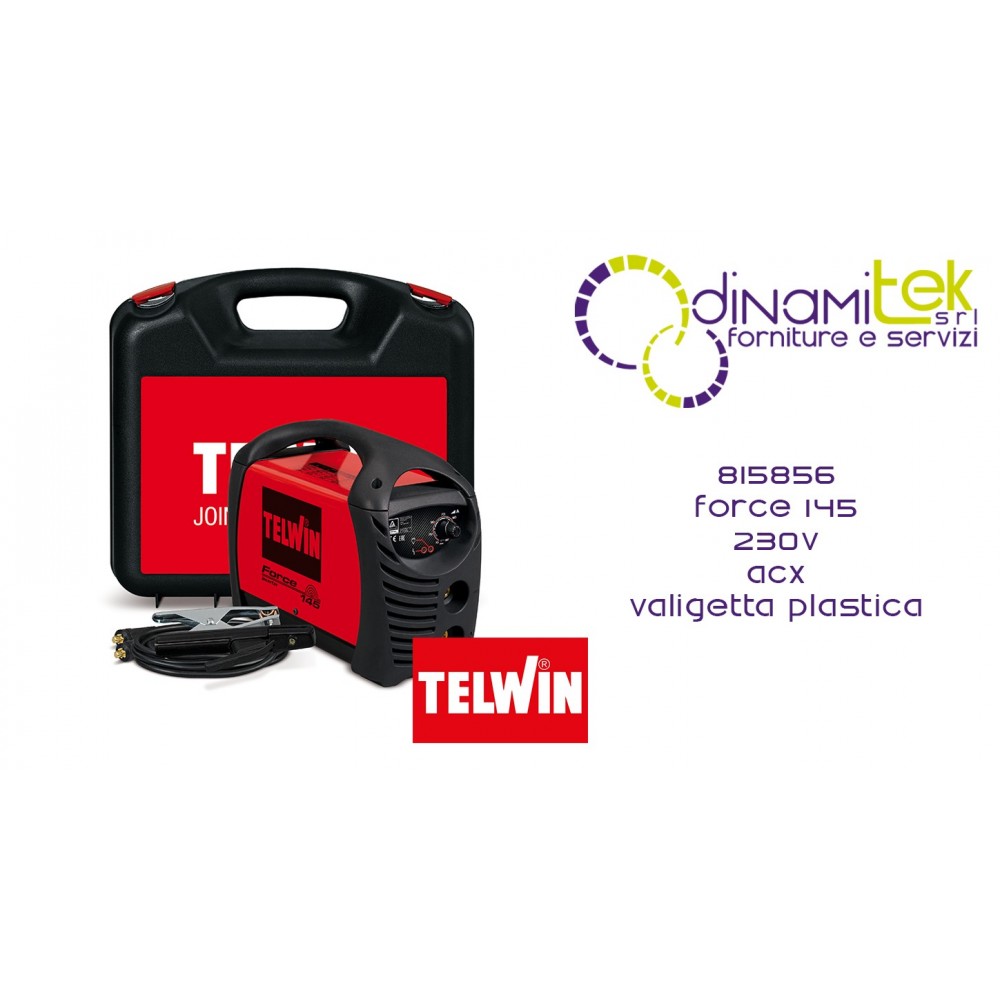

815856 SALDATRICE FORCE 145 230V ACC. CON VALIGETTA DI PLASTICA TELWIN Dinamitek 1
  • 815856 SALDATRICE FORCE 145 230V ACC. CON VALIGETTA DI PLASTICA TELWIN Dinamitek 1
  • 815856 SALDATRICE FORCE 145 230V ACC. CON VALIGETTA DI PLASTICA TELWIN Dinamitek 2

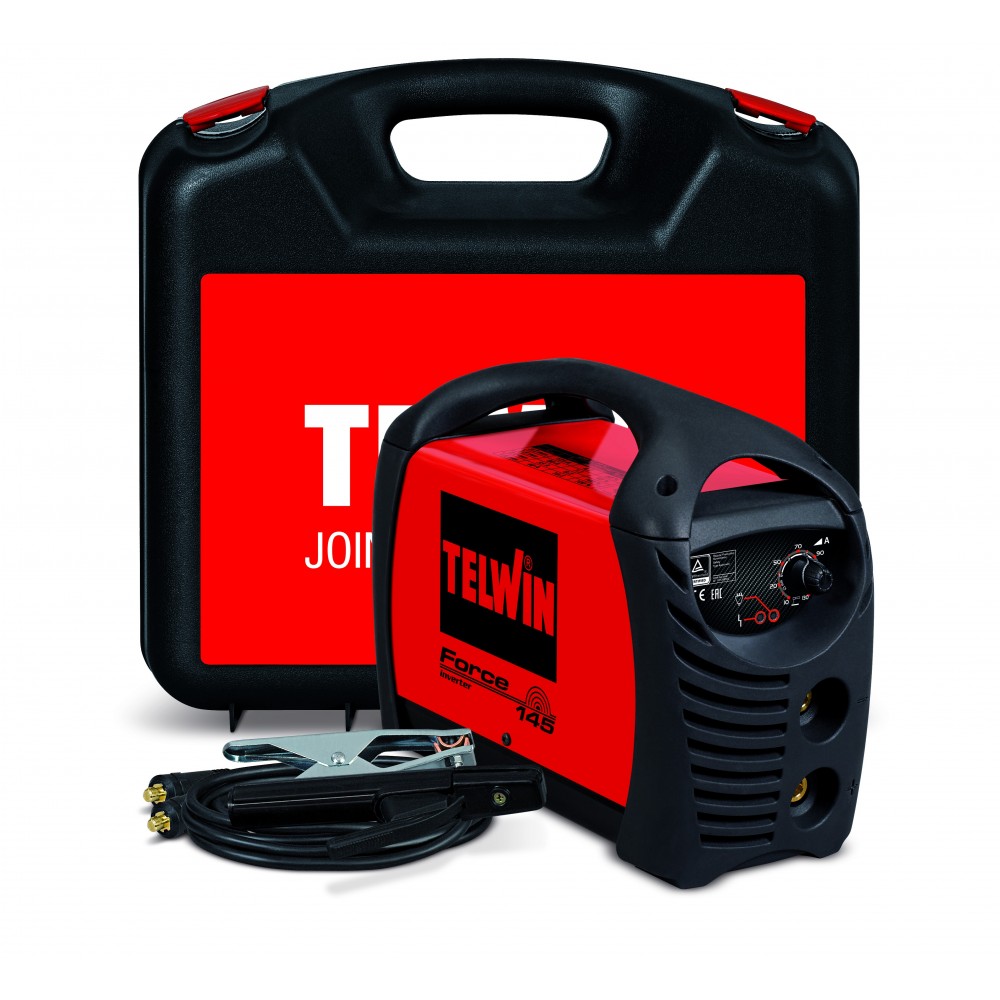

FORCE 145 230V ACX WELDER, PLASTIC CASE, MMA INVERTER, 1PH TELWIN

FORCE 145 230V ACC. WELDER WITH PLASTIC CASE

Shipping cost: Gratis for
207 €
Tax included

169,67 € Tax excluded

Quantity
Available product, order it now.

FORCE 145 230V ACC. PLASTIC CASE
code 815856
MMA electrode inverter welder in direct current (DC).
Flexibility of use with the most varied types of electrodes: rutile, basic, stainless steel, cast iron, etc. Features:
- Compact and lightweight
- High stability of the welding current in the event of variations in the supply voltage
- Arc force, hot start, anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%)
Complete with MMA welding accessories and plastic case.
MMA DC
1 PH 230V
CE MARKING
EAC CERTIFICATION
TÜV CERTIFICATION

CABLE 16 MMQ 1.8 M - ATLAS PLUG 25 124508
MARTO/BRUSH 712139
PLASTIC CASE 322800
DALLAS 300 ELECTRODE HOLDER CLAMP 300 A 712260
TOLEDO 250 GROUND CLAMP 250 A
712030

CODE 815856
16 A MAINS FUSE
SINGLE-PHASE MAINS VOLTAGE 230 V
YIELD 82%
MAINS FREQUENCY 50 / 60 Hz
POWER FACTOR (cosphi) 0.6
CURRENT REGULATION RANGE 10 - 130 A
D. ELECTRODES USABLE IN DC 1.6 - 3.2 mm
%USE (USE AT 20°C)60% @ 125 A
PROTECTION DEGREE IP21
MAX DC CURRENT (EN 60974-1) 125 @ 7% A
DIMENSIONS 38 x 42 x 17 cm
MAX NO LOAD VOLTAGE 72 V
WEIGHT 5.2 kg
MAXIMUM ABSORBED CURRENT 27 A
EAN CODE 800489778954 5
MAX ABSORBED POWER 3.5 kW
PIECES / PALLET 36 pcs/pallet MINIMUM POWER OF MOTOR GENERATOR 5 kW
PIECES / PALLET - B 30 pieces/pallet B
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
