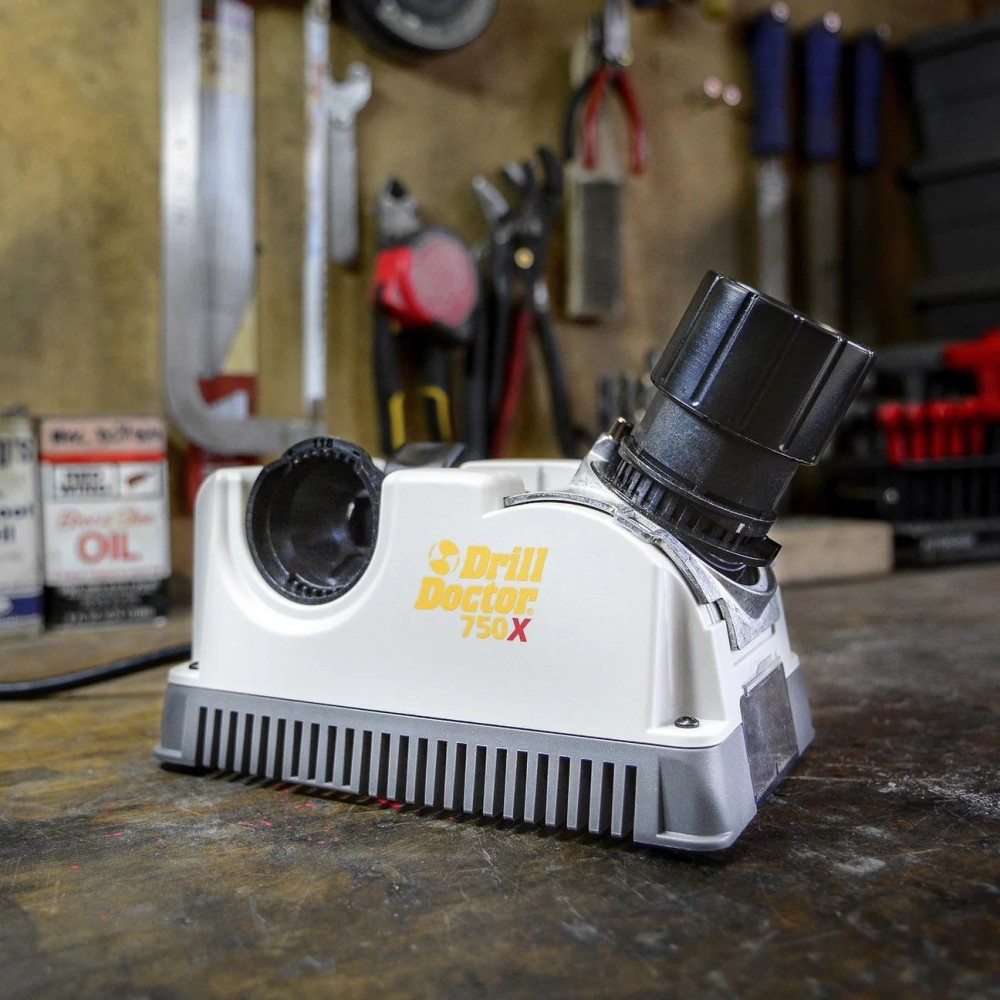

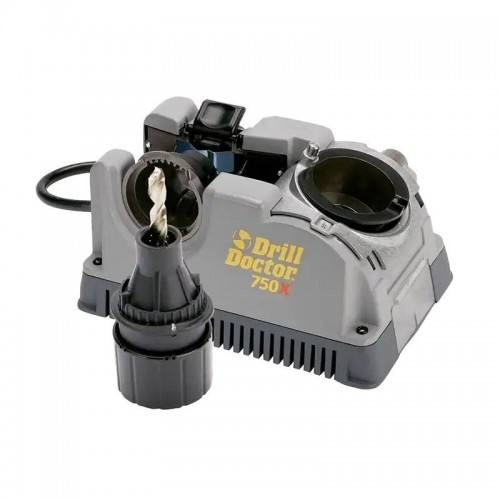

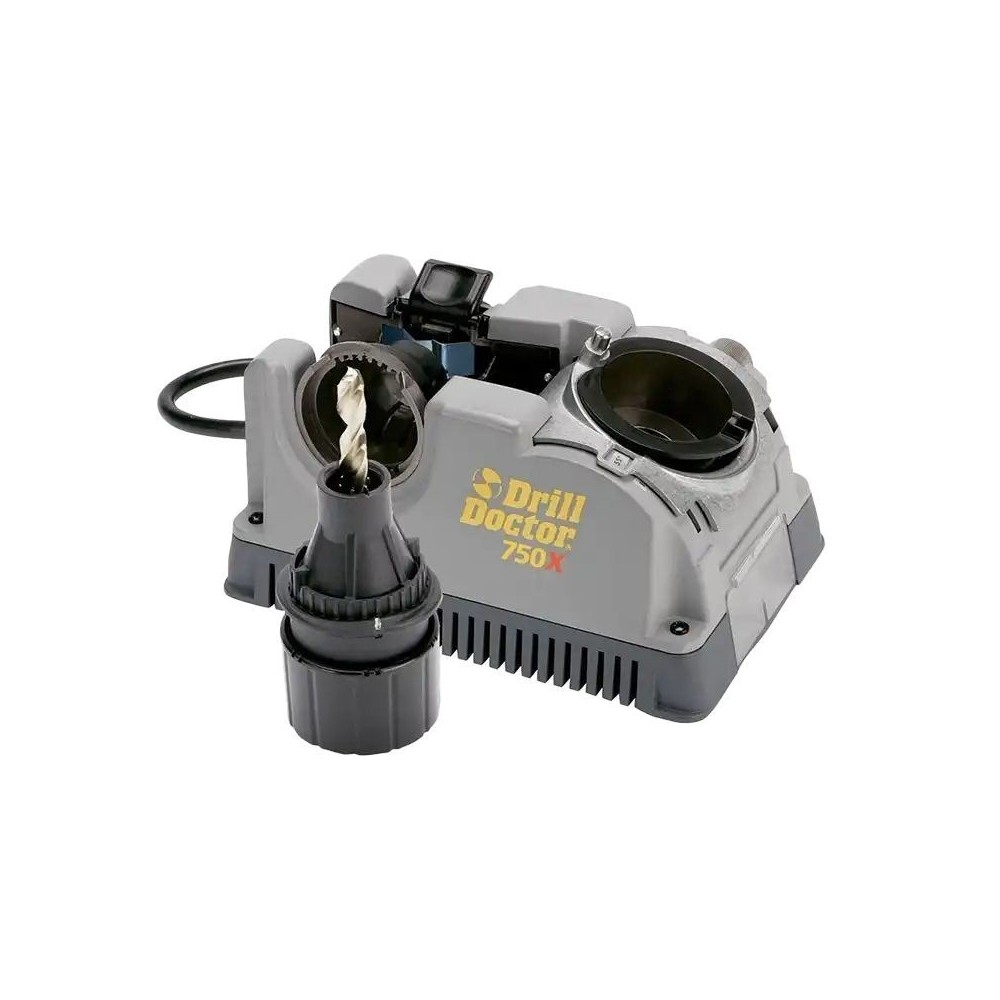

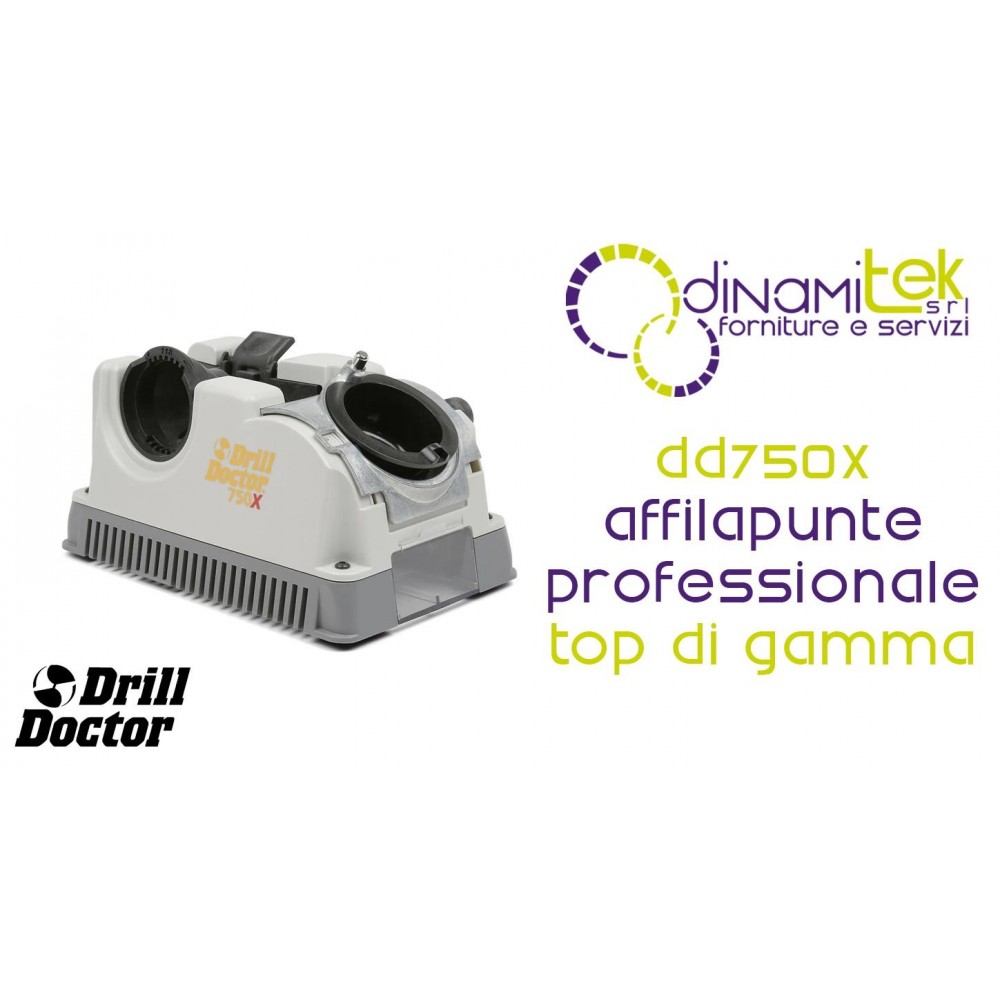

750X TOP-OF-THE-RANGE PROFESSIONAL DRILL BIT SHARPENER DRILL DOCTOR

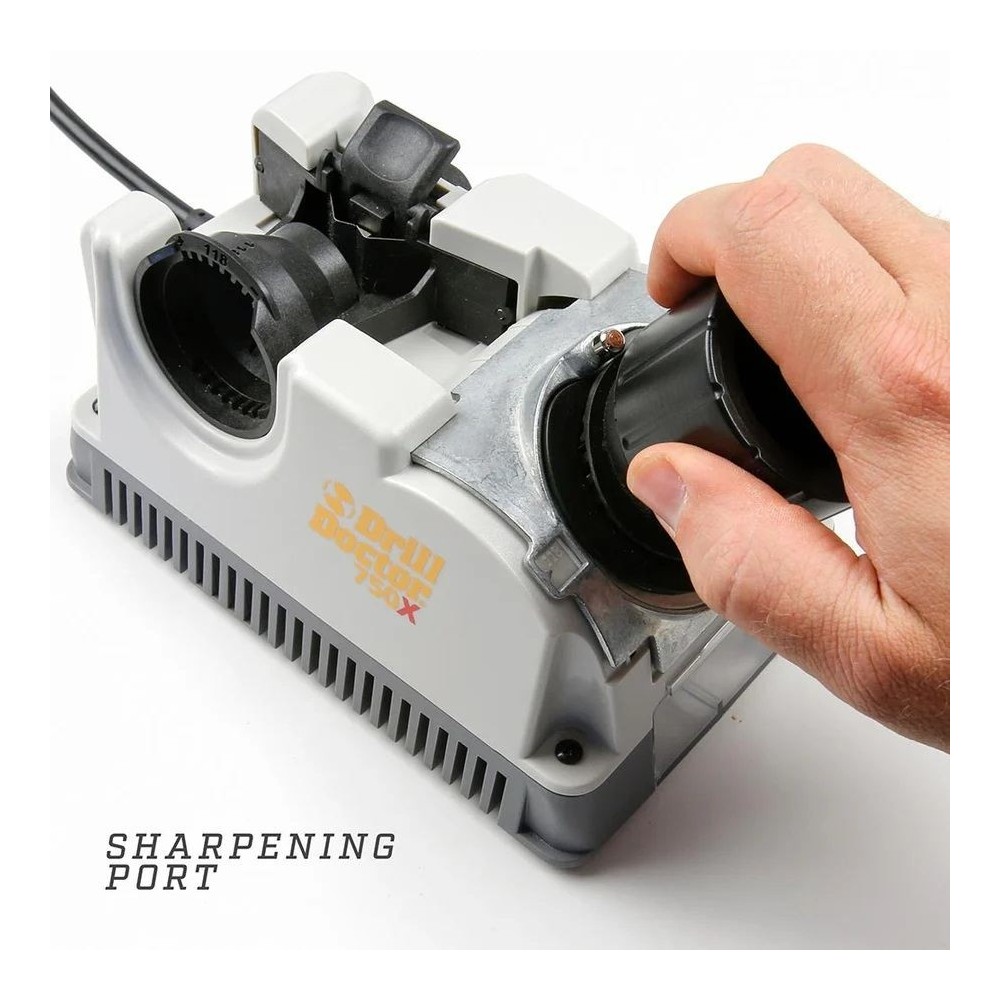

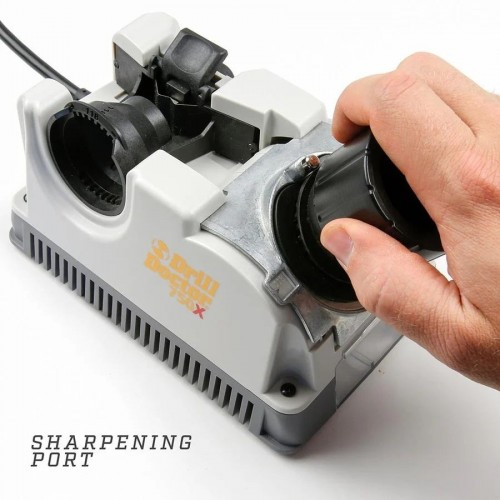

The Drill Doctor 750X (Art. DD750XIBMD) is the top of the range of the line, designed for the demanding professional and for intensive use . Extremely versatile and precise, it sharpens drill bits with diameters from 2 mm to 19 mm . Thanks to the continuous angle adjustment from 115° to 140° and the variable removal system, it guarantees industrial performance and maximum durability for your tools.

Shipping cost: Gratis for
€397.72
323,3 € Save €74.42
Tax included

265,00 € Tax excluded

Quantity
Available product, order it now.

Top of the Range for Industrial Performance

The DD750X represents the pinnacle of professional sharpening. Designed to withstand heavy workloads, it combines a solid construction with a die-cast aluminum adjustment shuttle and advanced adjustments that allow you to restore even the most damaged tips with ease.

Applications and Examples of Use

  • Professional Maintenance: Ideal for workshops and laboratories that need to frequently sharpen large drill bits (up to 19 mm).
  • Restoring Damaged Tools: Thanks to the variable removal function, you can remove a lot of material to recover chipped or broken tips, or remove very little to refresh the edge of tips that are only slightly worn.
  • Specialized Processing: The creation of the Split Point makes the tip self-centering, eliminating initial slippage and speeding up drilling on hard metals.

Exclusive Technical Advantages

  • Total Angle Versatility: Set any tip angle from 115° to 140°, adapting to any material and application.

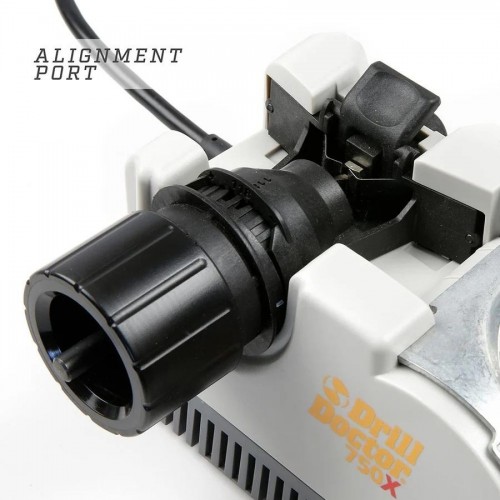

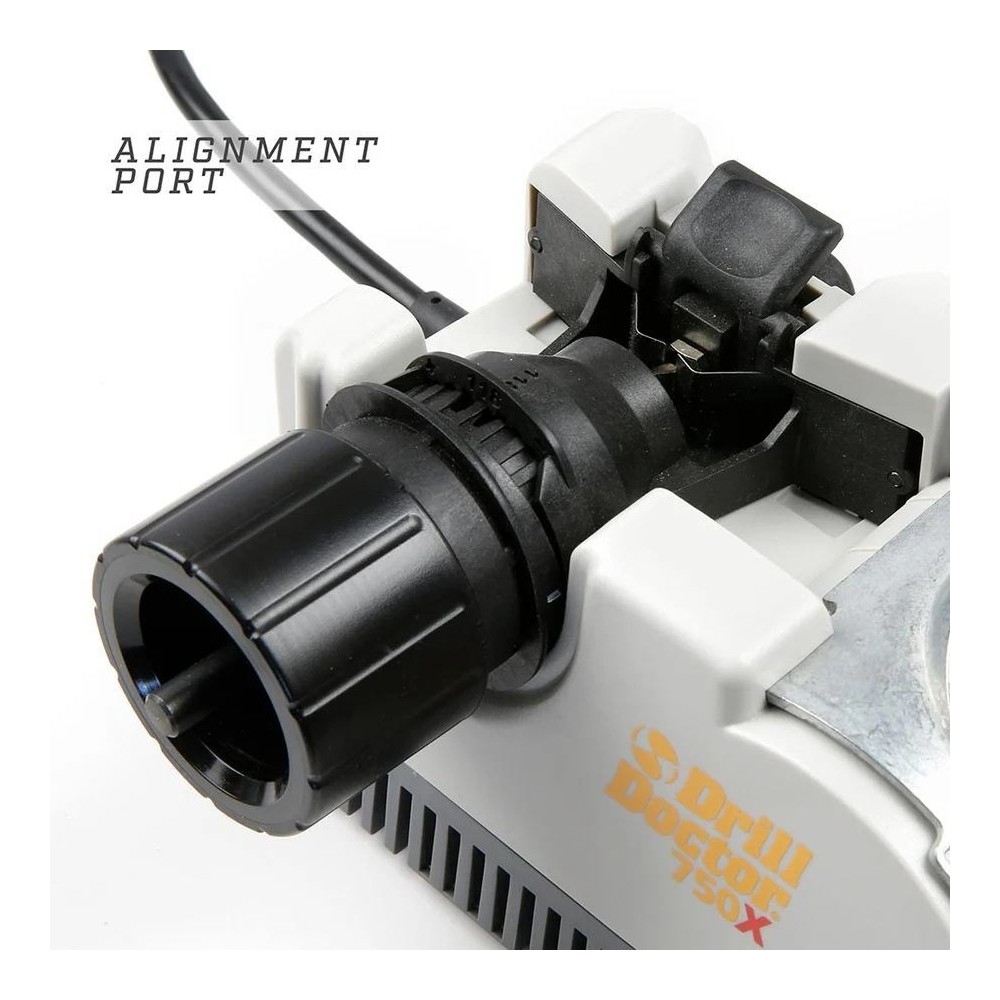

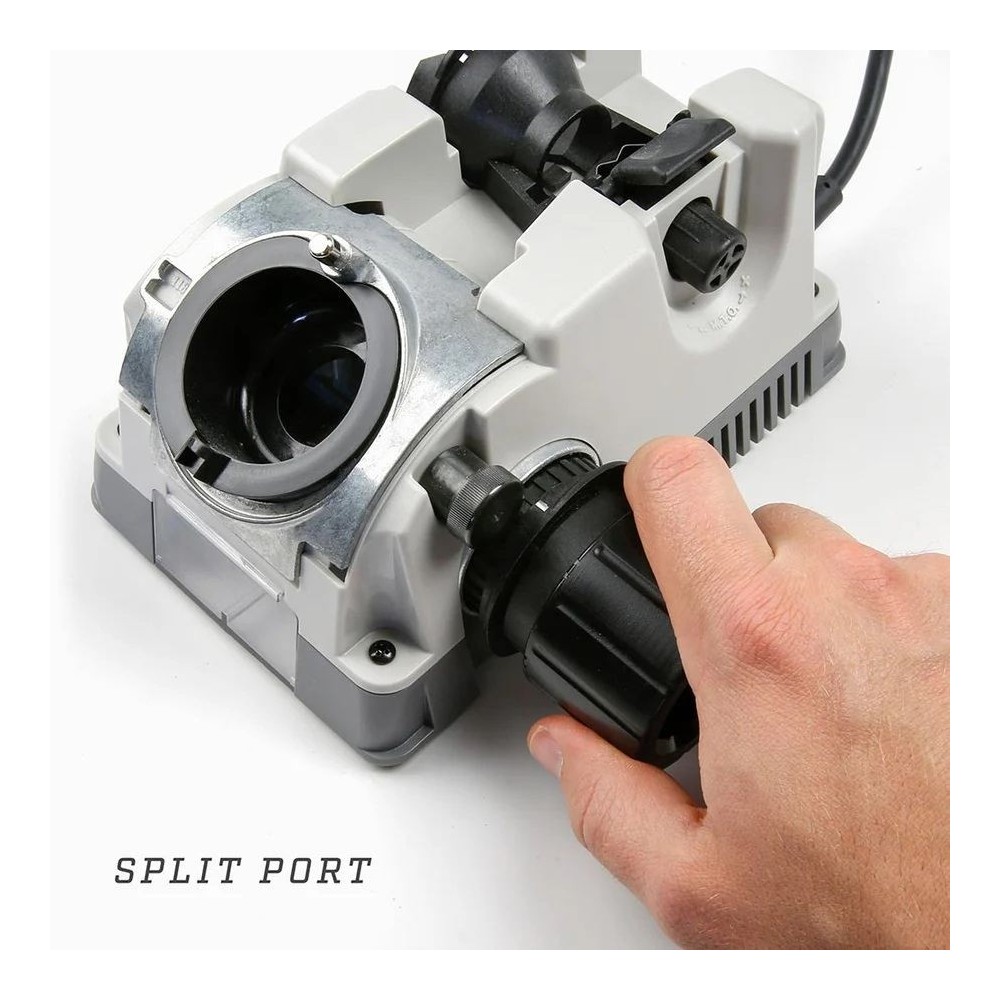

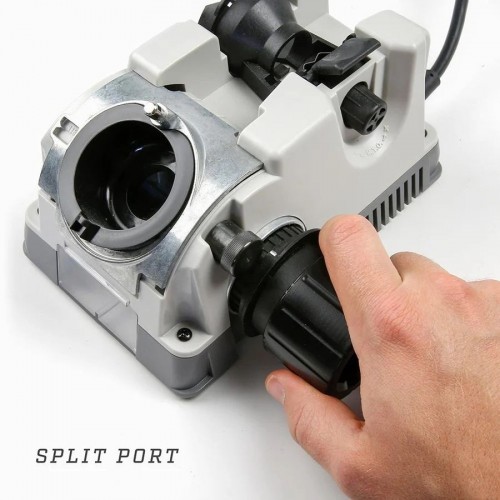

  • “Push to Stop” System: Splitting gate designed to prevent excessive material removal when creating the split point.
  • Variable Alignment: Precisely adjust the rake angle and tip relief for optimal cutting performance.
  • Constant Power: The permanent magnet motor ensures stable rotation speed regardless of the load.

Compatibility and Materials

  • Supported materials: High Speed Steel (HSS), Carbide, Cobalt, TiN-coated, Black Oxide and masonry bits.

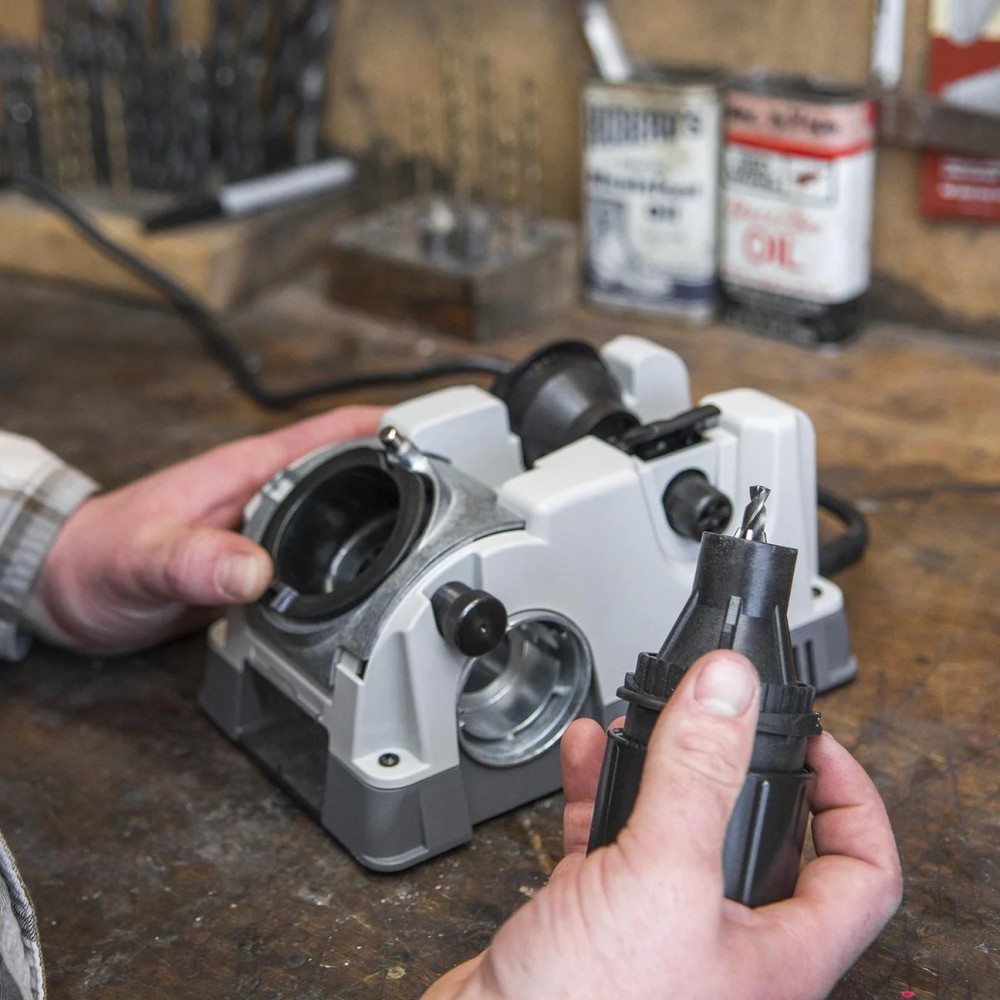

  • Dimensions: Sharpens drill bits from 2mm to 19mm thanks to the two included chucks.
  • Reverse Bits: Compatible with left-hand twist drills (extractors) from 2.5 to 13 mm via optional DA02105PF chuck.

Product Specifications

  • Grinding wheel: Pre-installed 180 grit diamond (easily replaceable).
  • Cable: Power supply with 1.8 meter cable.
  • Warranty: 3 years against manufacturing or design defects.

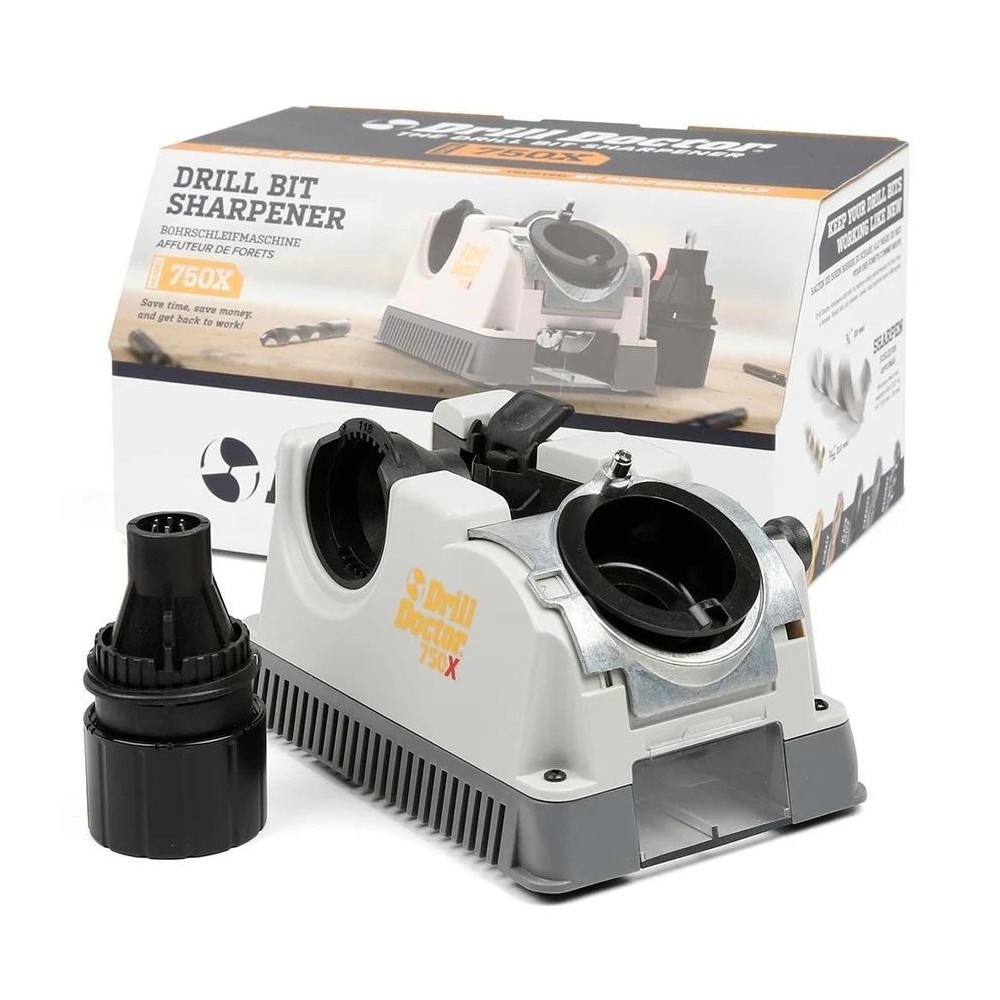

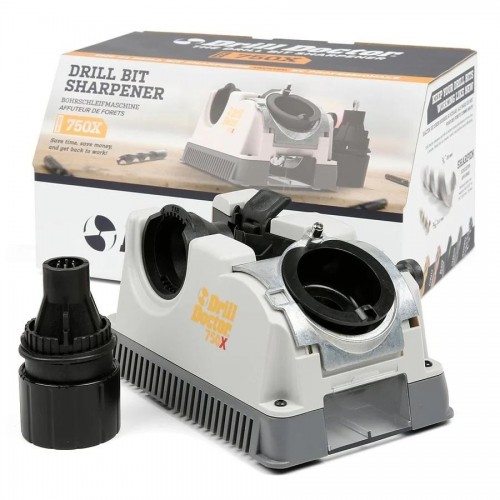

Package Contents

  • Drill Doctor 750X Drill Bit Sharpener
  • Standard chuck (up to 13 mm)
  • Chuck for large drills (up to 19 mm)
  • 180 grit diamond wheel (pre-installed)
  • Professional bag for transport and storage
  • Grinding wheel replacement key and user guide

Spare Parts and Optional Accessories

Maximize the potential of your Drill Doctor with original accessories, designed to extend the versatility of your machine and ensure maximum efficiency over time.

  • Standard Diamond Grinding Wheel (180 Grit) - Item DA31320GF: Fine-grained precision wheel, ideal for daily sharpening on HSS, Cobalt and Carbide.
  • Chuck for large drill bits (up to 19 mm) - Art. DA70100PF: Accessory included as standard in the 750X, allows you to sharpen drill bits from 13 to 19 mm.
  • Aggressive diamond wheel (Grain 100) - Art. DA31325GF: Ideal for heavy-duty restoration of very blunt or chipped tips.
  • Left-hand chuck for reverse drill bits - Item DA02105PF: For sharpening left-hand twist drill bits from 2.5 to 13 mm.


750X

Accessories

DRILL DOCTOR DA31320GF MOLA ABRASIVA DIAMANTATA STANDARD GRANA 180 Dinamitek 1

DA31320GF STANDARD DIAMOND ABRASIVE WHEEL 180 GRIT...

Maintain peak performance on your Drill Doctor drill sharpener with the DA31320GF standard diamond grinding wheel . The fine 180 grit ensures clean, precise, and consistent sharpening over time. It's the essential original replacement for quickly regenerating drill bits, ensuring a professional finish on a wide range of materials.
Price €46.36
Available product, order it now.
DRILL DOCTOR DA70100PF MANDRINO PER PUNTE GROSSE FINO A 19 MM Dinamitek 1

DA70100PF CHUCK FOR LARGE BITS UP TO 19 MM DRILL DOCTOR

Expand the capacity of your Drill Doctor drill sharpener with the DA70100PF large drill chuck . This original accessory allows you to sharpen drill bits with diameters between 13 mm and 19 mm , ensuring stable clamping and precise alignment even on large tools.
Price €90.28
Available product, order it now.
DRILL DOCTOR DA31325GF MOLA ABRASIVA DIAMANTATA AGGRESSIVA GRANA 100 Dinamitek 1

DA31325GF AGGRESSIVE DIAMOND ABRASIVE WHEEL 100 GRIT...

The DA31325GF aggressive diamond wheel is designed for the most demanding restoration work with the Drill Doctor drill sharpener. The 100 grit ensures high stock removal, ideal for recovering severely damaged, chipped, or broken drill bits before finishing with the standard wheel.
Price €40.26
Available product, order it now.
DRILL DOCTOR DA02105PF MANDRINO SINISTRO PER AFFILARE PUNTE INVERSE Dinamitek 1

DA02105PF LEFT CHUCK FOR SHARPENING REVERSE DRILL BITS

Continue to use your extractors with maximum efficiency: the DA02105PF left-hand chuck allows you to precisely resharpen all reverse helix drill bits . Designed for diameters from 2.5 mm to 13 mm, it is the original Drill Doctor accessory, essential for those who work with broken bolts and require consistently sharp and high-performance tools.
Price €90.28
Available product, order it now.
