M032 MALE AND FEMALE SERIES FERVI

Technical Features and Advantages of the Fervi Taps and Dies Series Art. M032

The Fervi Art. M032 series of taps and dies represents the essential set of hand cutting tools for mechanics, car repairers, carpentry shops and industrial workbenches Designed for threading from scratch or restoring damaged threads on metals and alloys, it ensures precise metric threads and effective chip evacuation thanks to the ground profile of the cutting edges. .

HSS Steel, Versatility of Materials and Complete Kit

• Multi-Metal Machining: Suitable for use on steel, aluminum, cast iron and non-ferrous alloys with oil lubrication .
• Integrated Thread Gauge and Screwdriver: The thread gauge allows you to instantly identify the thread pitch, while the 3.5 x 50 mm screwdriver makes it easy to lock and adjust the dies in the die holder. .
• Safe Manual Use: The operating levers of the tap wrench and die cutter offer an excellent grip and ideal balance to maintain axiality during cutting. .

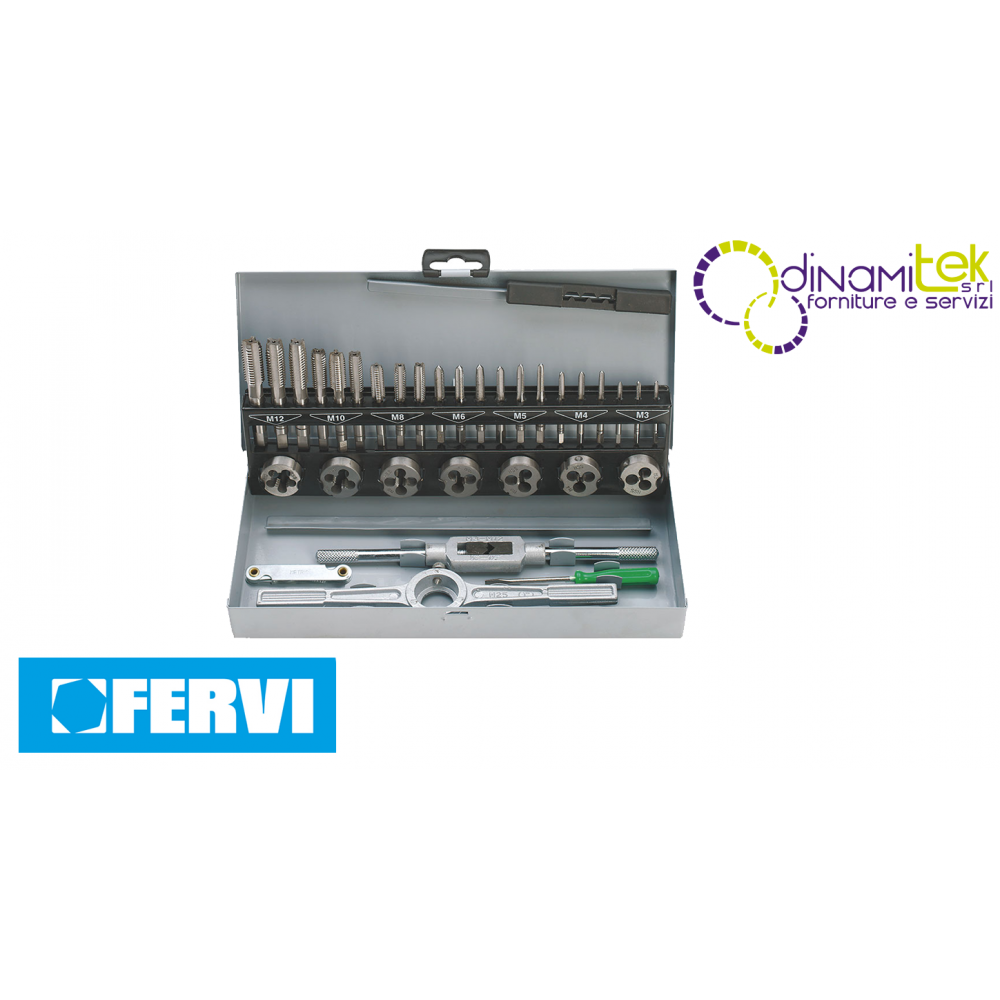

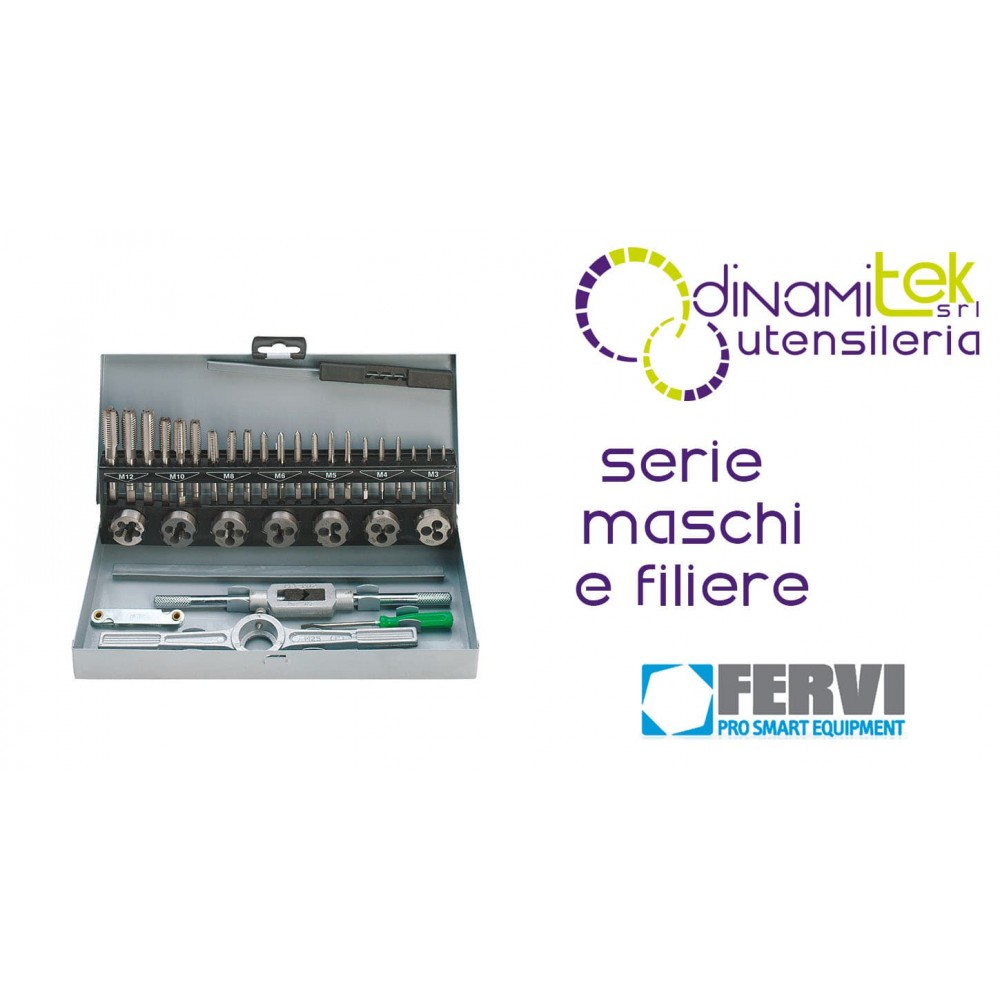

Kit Composition (32 Pieces)

• Internal thread taps (M3 to M12 series):
  • M3 x 0.5 mm
  • M4 x 0.7 mm
  • M5 x 0.8 mm
  • M6 x 1.0 mm
  • M8 x 1.25 mm
  • M10 x 1.5 mm
  • M12 x 1.75 mm
• External thread dies (M3 to M12 series):
  • M3 x 0.5 mm
  • M4 x 0.7 mm
  • M5 x 0.8 mm
  • M6 x 1.0 mm
  • M8 x 1.25 mm
  • M10 x 1.5 mm
  • M12 x 1.75 mm
• Accessories supplied: 1 Tap wrench, 1 Die cutter, 1 Thread counter, 1 Screwdriver (3.5 x 50 mm) and metal case

Detailed Technical Data Sheet

• Item Code (SKU): M032
• Manufacturer / Brand: Fervi
• Product type: Series of taps and dies in series
• Total quantity: 32 Pcs
• Tool material: HSS (High Speed Steel)
• Machinable materials: Steel, aluminum, non-ferrous alloys, cast iron
• Type of use / Recommended lubricant: Manual / Cutting oil
• Package dimensions (L x W x H): 265 x 120 x 40 mm
• Gross weight: 1.29 kg
• EAN Code: 8012667181147
