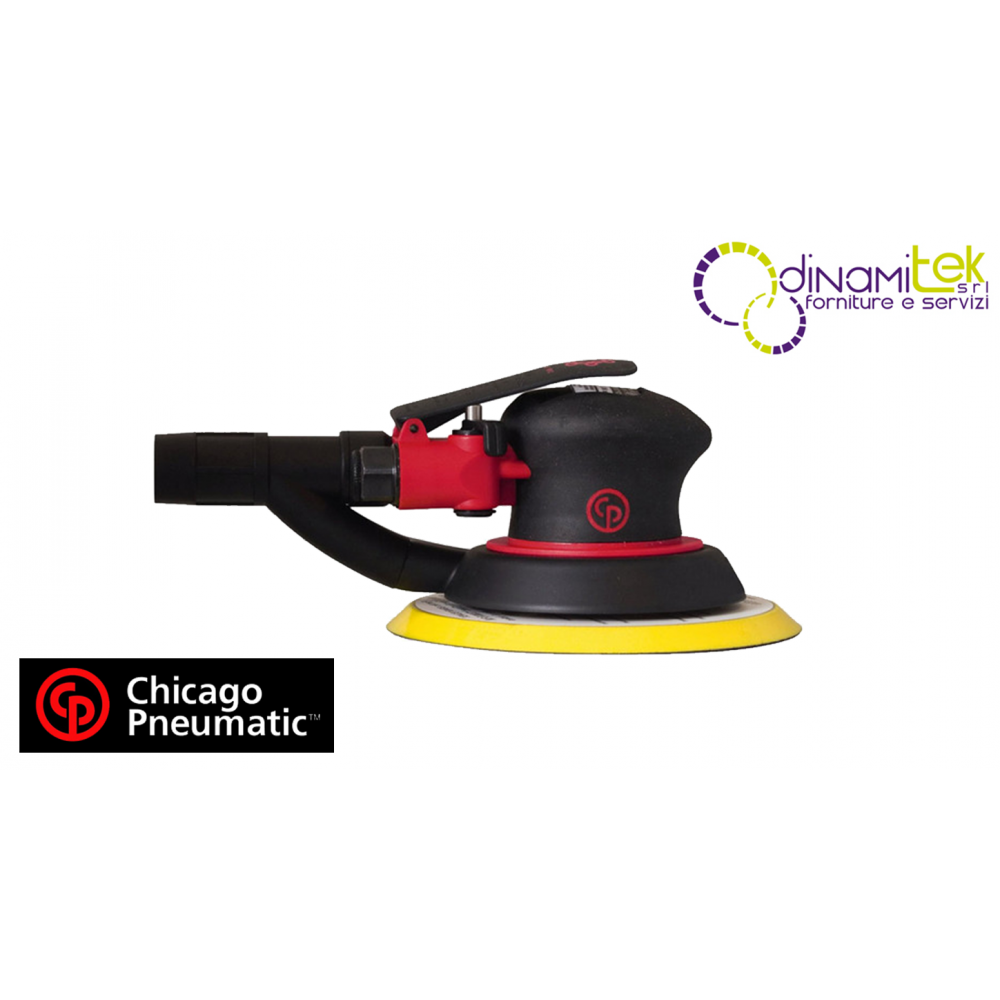

XCP7225SVE - 8941 2722 52 - CHICAGO PNEUMATIC RANDOM ORBITAL SANDER
Operator comfort thanks to the ergonomic shape of the palm,
Increased productivity with low vibration levels.
Powerful, ergonomic palm shape for vertical and horizontal applications 3/32" (2.5 mm)
Used for final sanding, finishing and pre-polishing processes.
6" (150 mm) Palm Random Orbital Sander 3/32" (2.5 mm) orbit.
Powerful 0.3 hp (210 W) motor. Soft grip, teardrop design for perfect control.
Low noise level.
Reduced vibrations.
Off switch and speed control.
Self Vacuum (SV) Model in Hook & Loop Mat
Model CP7225SVE
Code 8941272252
Actual air consumption 453 l/min 16 cfm
Air inlet thread size 1/4"
Average air consumption 227 l/min 8 cfm
European Directives 2006/42/EC (17/05/2006)
European sound standard ISO 15744
European Standards UNI EN ISO 11148-8: 2012
Free speed 12000 rpm
Air consumption at free speed 8 l/sec 18 cfm
Height 105mm 4.1"
Height on spindle 105 mm 4.1 "
Length 232mm 9.1"
min. pipe size 10mm 3/8"
Net weight 0.82 kg 1.84 lbs
Orbit diameter 2 1/2 mm 3/32"
Pad diameter 150 mm 6 "
Number of pad holes 6
H&L swab type
Pad Type Hook & Loop Yes
PSA Swab Type No
Sheet size 150mm 6"
Power 210 W 0.3 HP
Self-emptying yes
Sound power 92 dB(A)
Sound pressure 81 dB(A)
Spindle thread 5/16-24
Self-empty vacuum
Vibration 3.7 m/s²
Vibration ISO ISO-28927-3
Vibration uncertainty (K) 2.08 m²/s²
Width 150 mm 6 "
