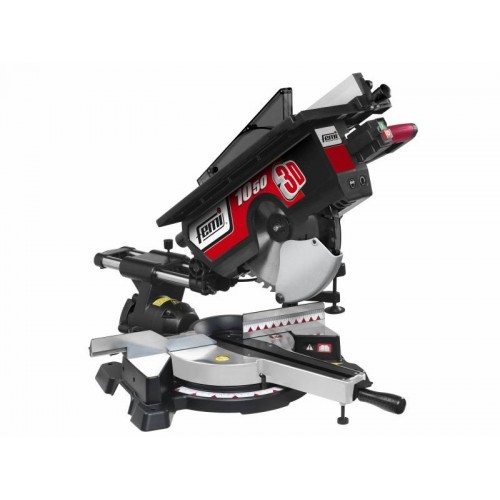

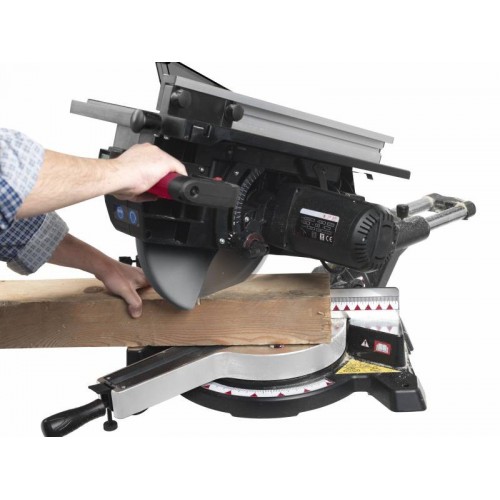

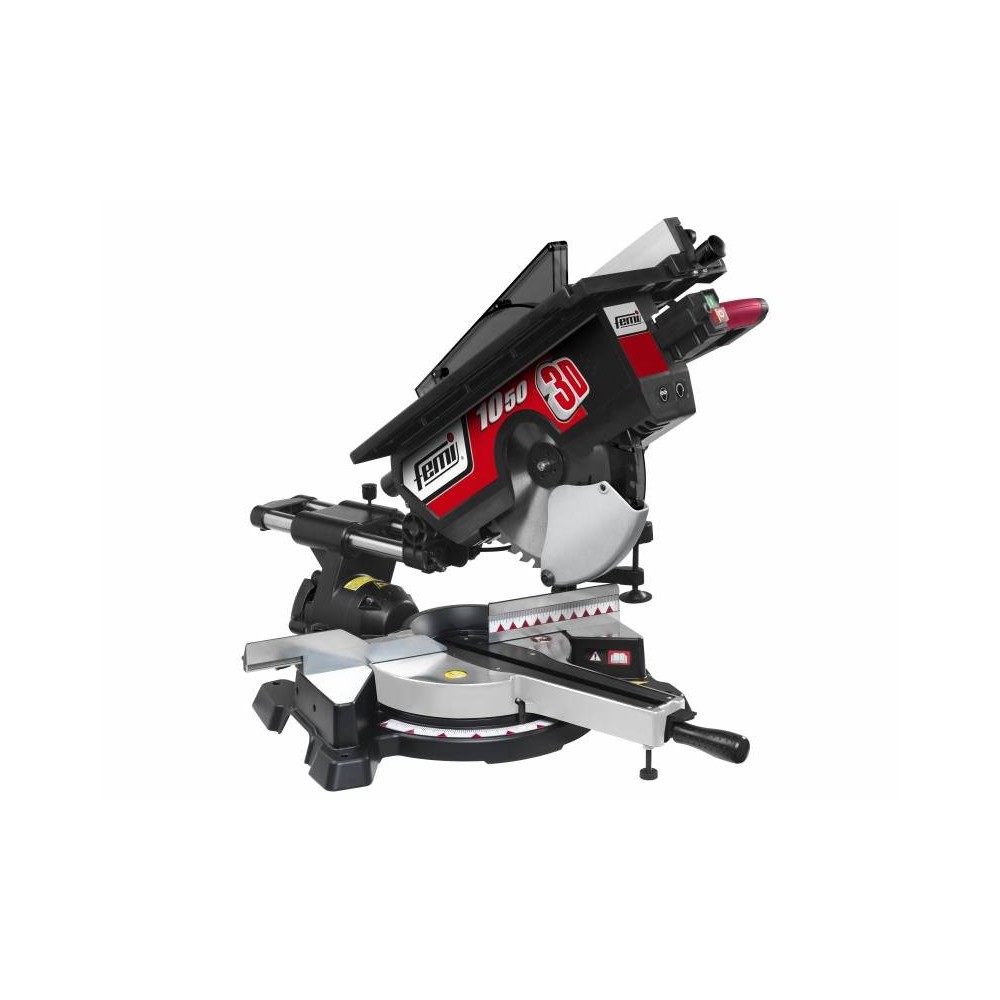

WOOD MITER SAW model 10503D FEMI equipped with a patented function change system: two machines in one, miter saw and circular saw, for three combined functions, Miter saw with upper plane, Radial sliding miter saw, Table circular saw
HEIGHT OF CUT ON THE UPPER PLAN : 60 MM
POWERFUL UNIVERSAL MOTOR 1800 WATT
RADIAL SLIDING BARS diameter 30 MM
FRONT SHEET METAL BLADE COVER
CUTTING ANGLE
0 degrees 50 degrees LEFT
0 degrees 60 degrees RIGHT
TECHNICAL FEATURES
Function change system from miter saw to circular saw (patented).

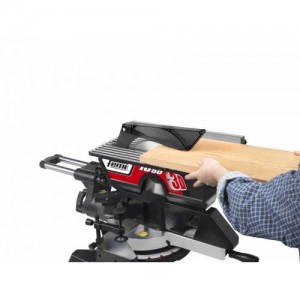

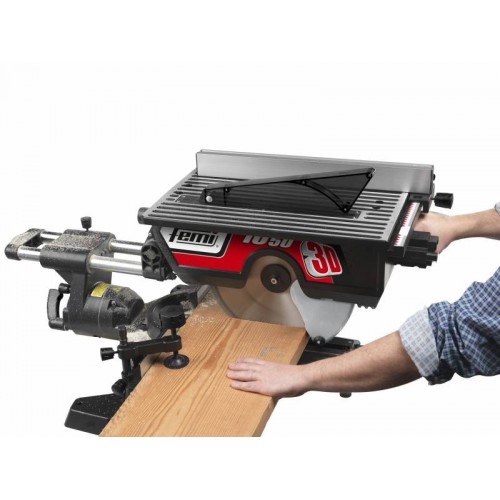

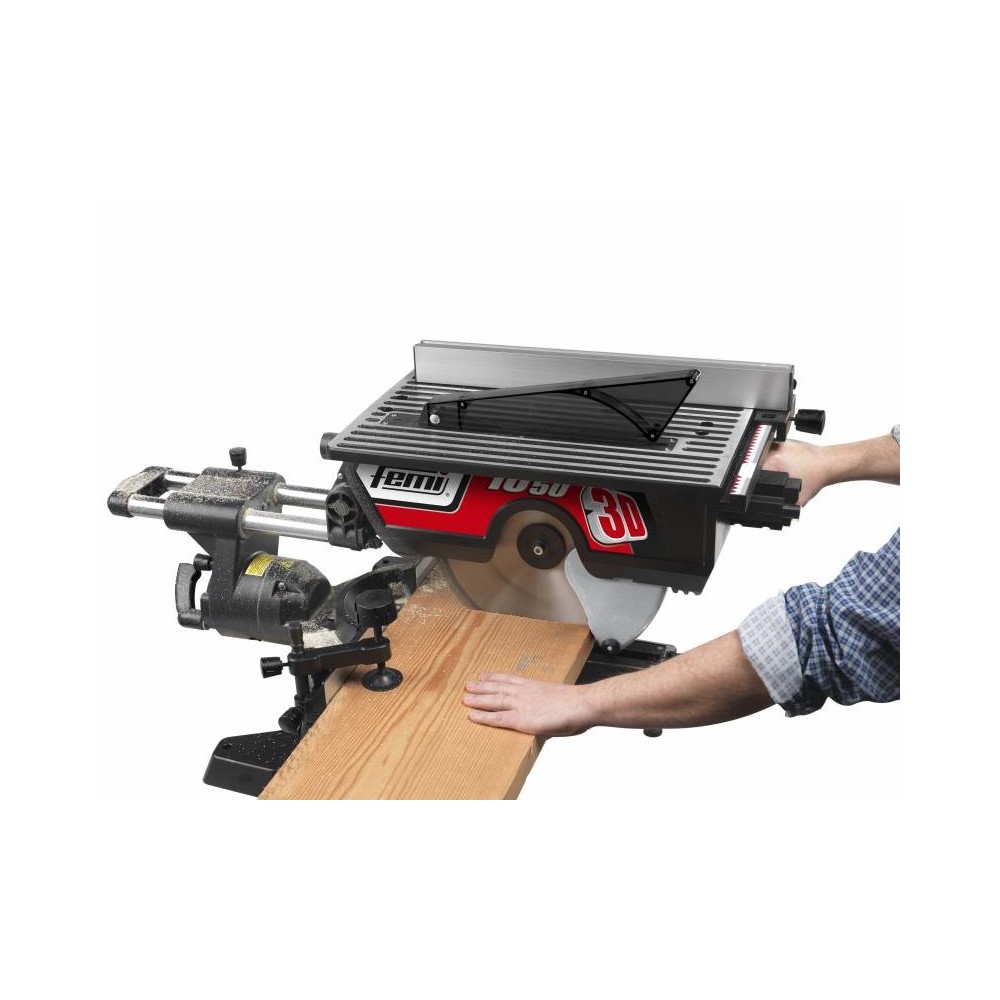

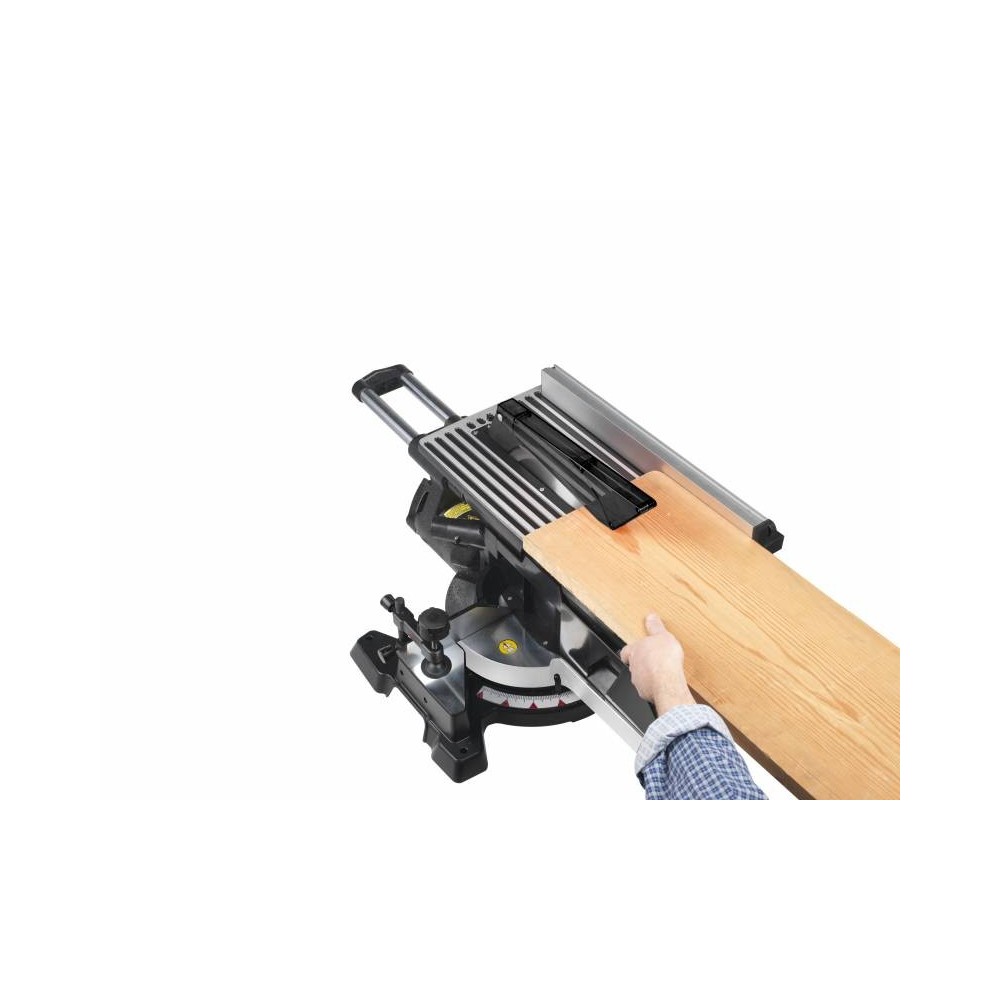

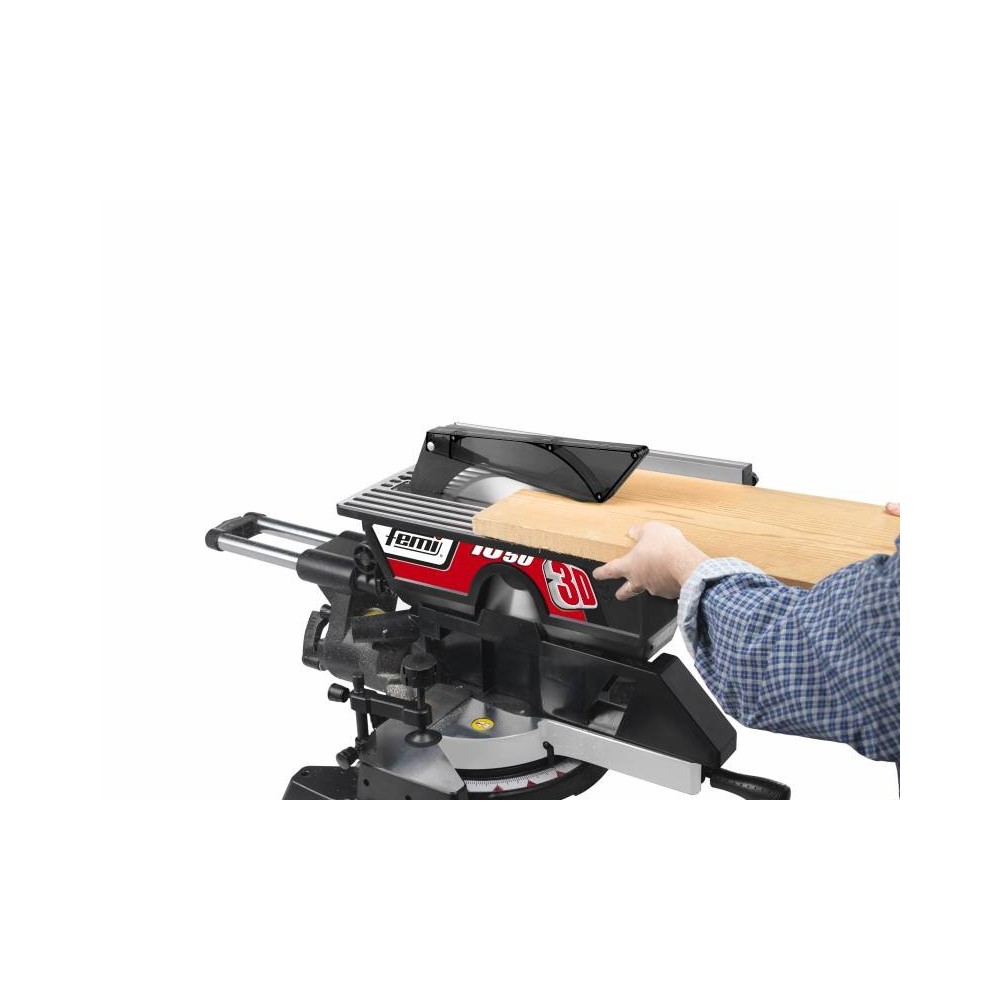

Circular saw on the upper deck with 60 mm cutting height
Extraordinary cutting capacity 305x90 mm.
Maximum cut on the upper floor for the 60 mm category!
Large upper top 310x480 mm with micrometric height adjustment.
Cutting angles 60 degrees right and 50 degrees left with auto lock 0 degrees 15 degrees 22.5 degrees 30 degrees 45 degrees.
Patented system for changing function from miter saw to simple and quick circular saw.
Laser pointer for maximum cutting precision.

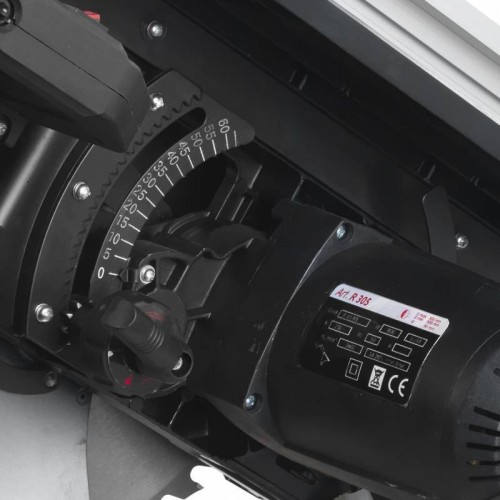

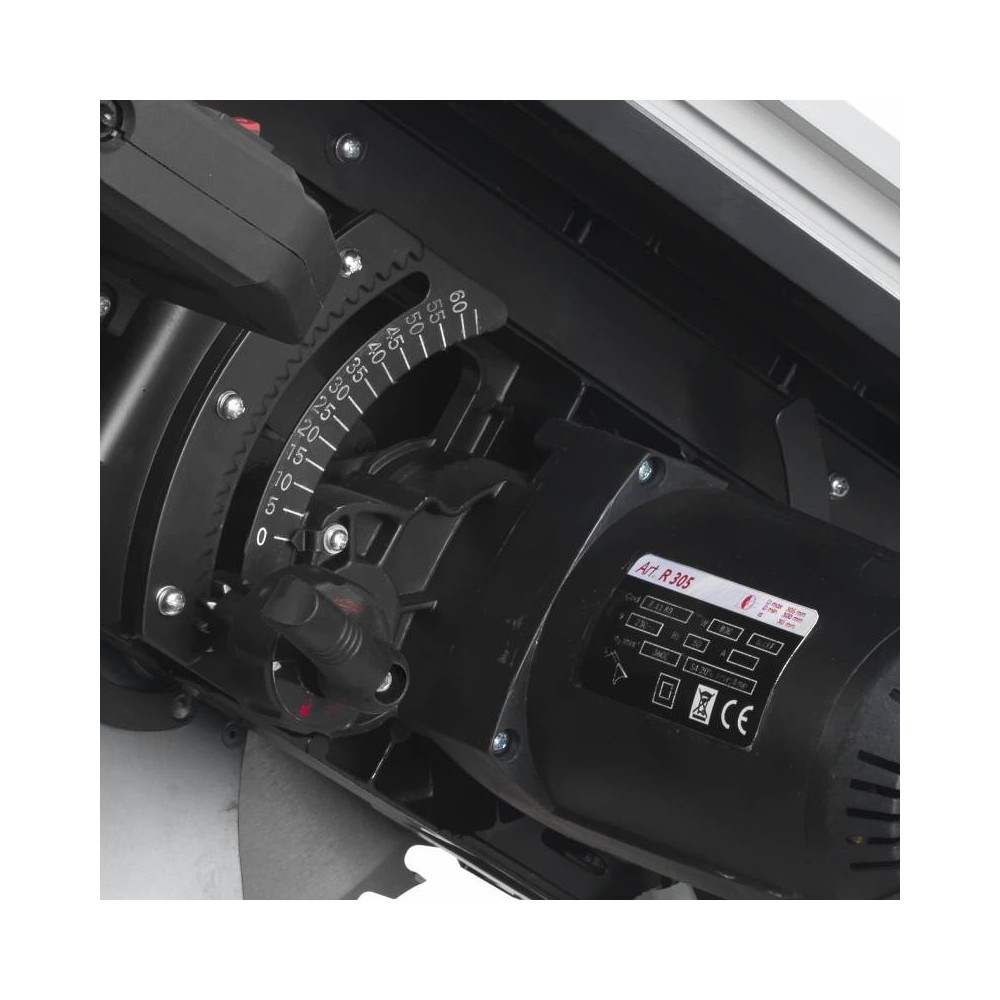

Head tilt 45 degrees left.
Radial sliding bars with a diameter of 30 mm.
Possibility of locking the radial sliding.
Powerful 1800 watt universal motor.
Soft start system.
Thermal safety protection.
Cutting guide on the upper table adjustable in two positions.
Extensible lateral support base.
Rear anti-tip system.
STANDARD EQUIPMENT
Side extensions for large cuts.
Vertical clamp for clamping the piece.
Blade protection for cuts on the upper surface.
Kit keys.
Push wood.
Data sheet
MOTOR POWER Watt 1800
Single-phase motor 230 Volt Hz 50
BLADE D305 d30
RPM 3600
DIMENSIONS mm (Depth x Base x Height) 990mm x650mm x460mm
Weight 28 kg
