Band saw with innovative NG SYSTEM to optimize cutting speed to the maximum. The NG160 band saw is also equipped with the electronic Constant Speed regulator.

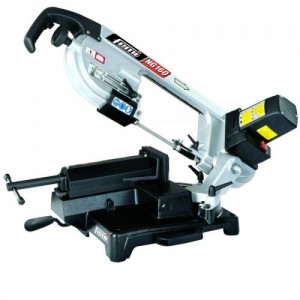

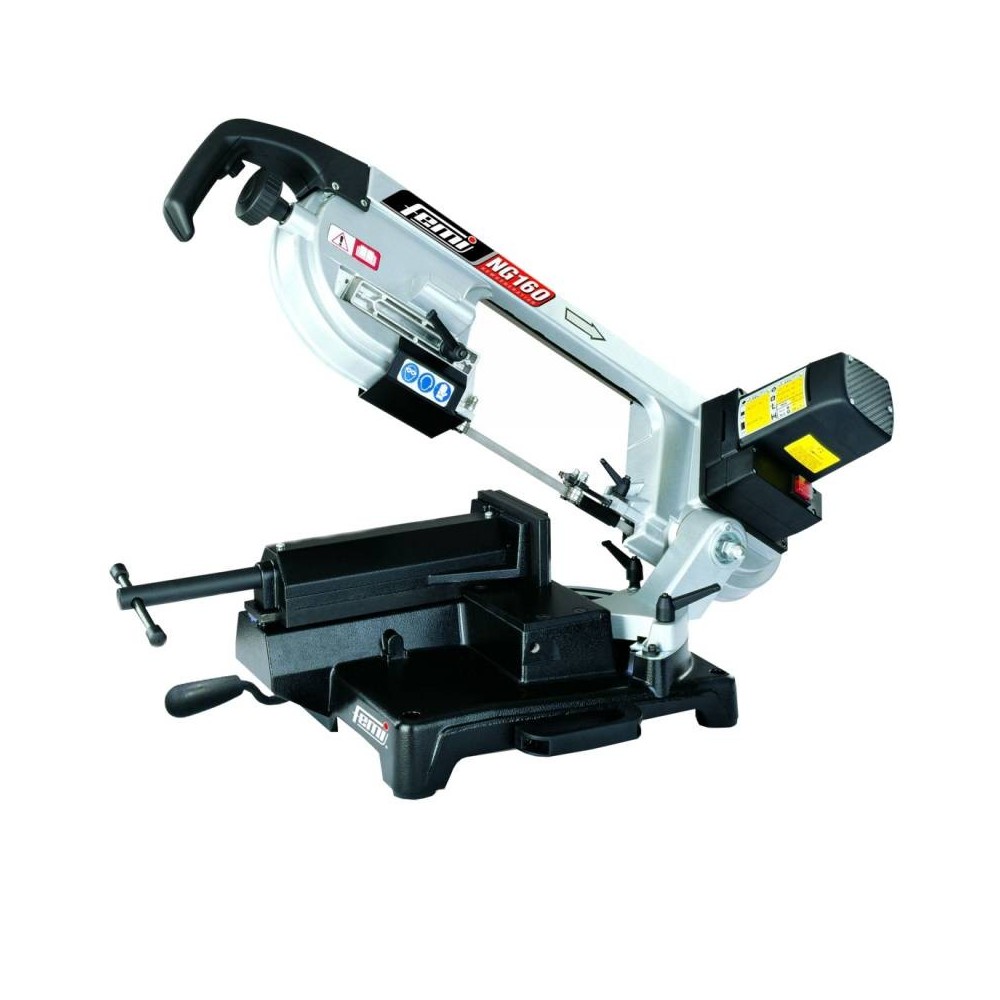

BAND SAW model NG160 FEMI equipped with the exclusive NG SYSTEM thanks to which the blade rotates in reverse making the cutting operations faster, you save half the time! Another technologically advanced feature is the "CONSTANT SPEED" electronic speed regulator.

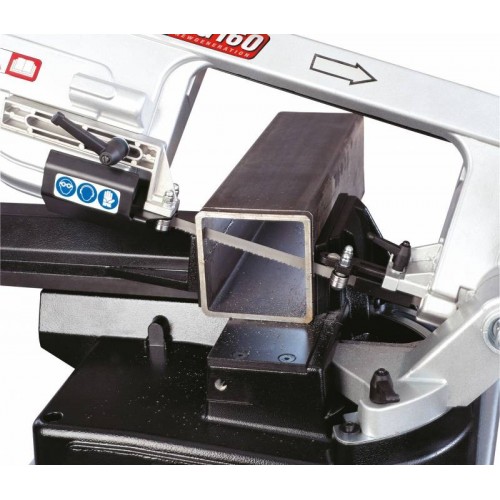

Cutting capacity
0 degrees SCAT. RECTANGULAR 160 X 140 mm SCAT. ROUND 150 mm SCAT. SQUARE 150X150 mm
45 degrees SCAT. RECTANGULAR 105 X 120 mm SCAT. ROUND 100 mm SCAT. SQUARE 100x100 mm
TECHNICAL FEATURES
Base with integrated quick-slide vice
Powerful single-phase motor (2000 Watt) equipped with "Constant Speed" digital electronic speed regulator with amperometric limiter and thermal protection
Blade protection carter with safety microswitch
Data sheet
MOTOR POWER Watt 2000 single-phase motor 230 Volt Hz 50
BLADE 1735x13x0.9
BLADE TOOTHING 6/10 Cobalt bimetallic blade as standard
REVOLUTIONS PER MINUTE DOUBLE Speed 35/80
Dimensions (depth x base x height) 1000 mm x390 mm x570 mm
Weight 35 kg
