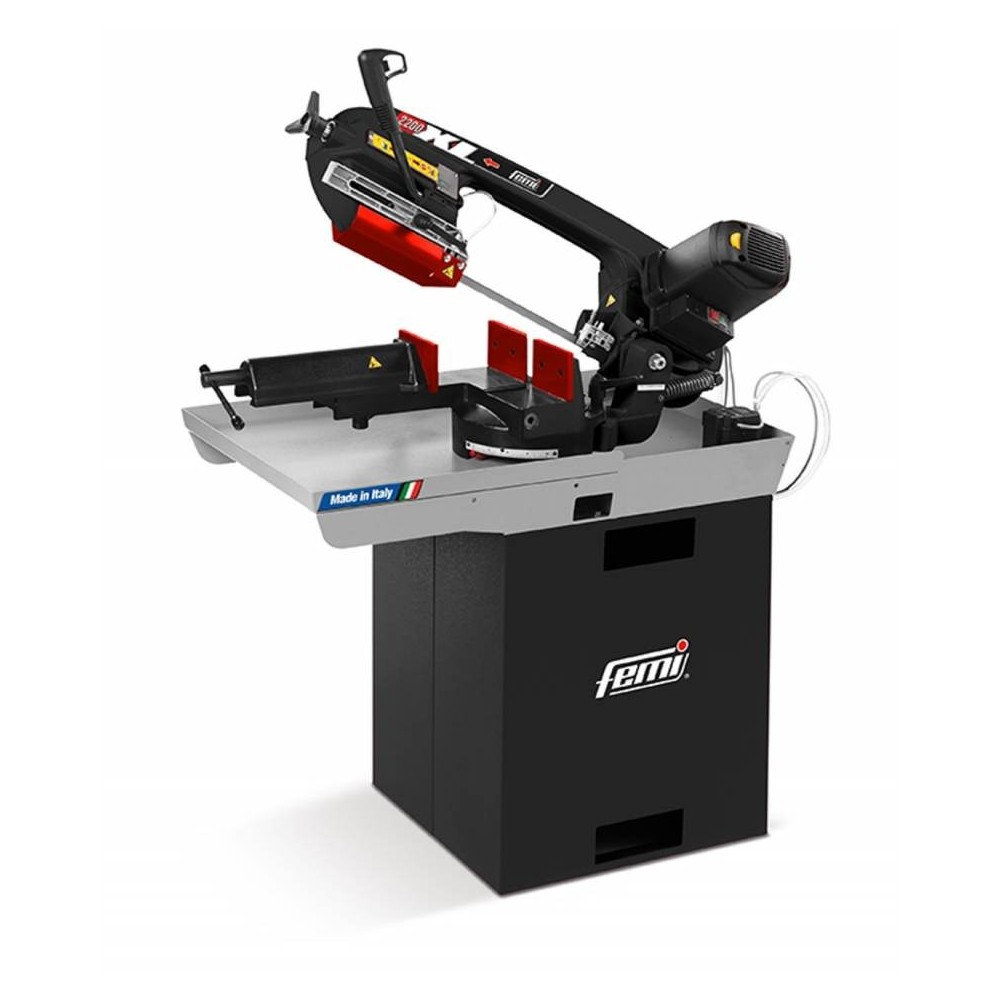

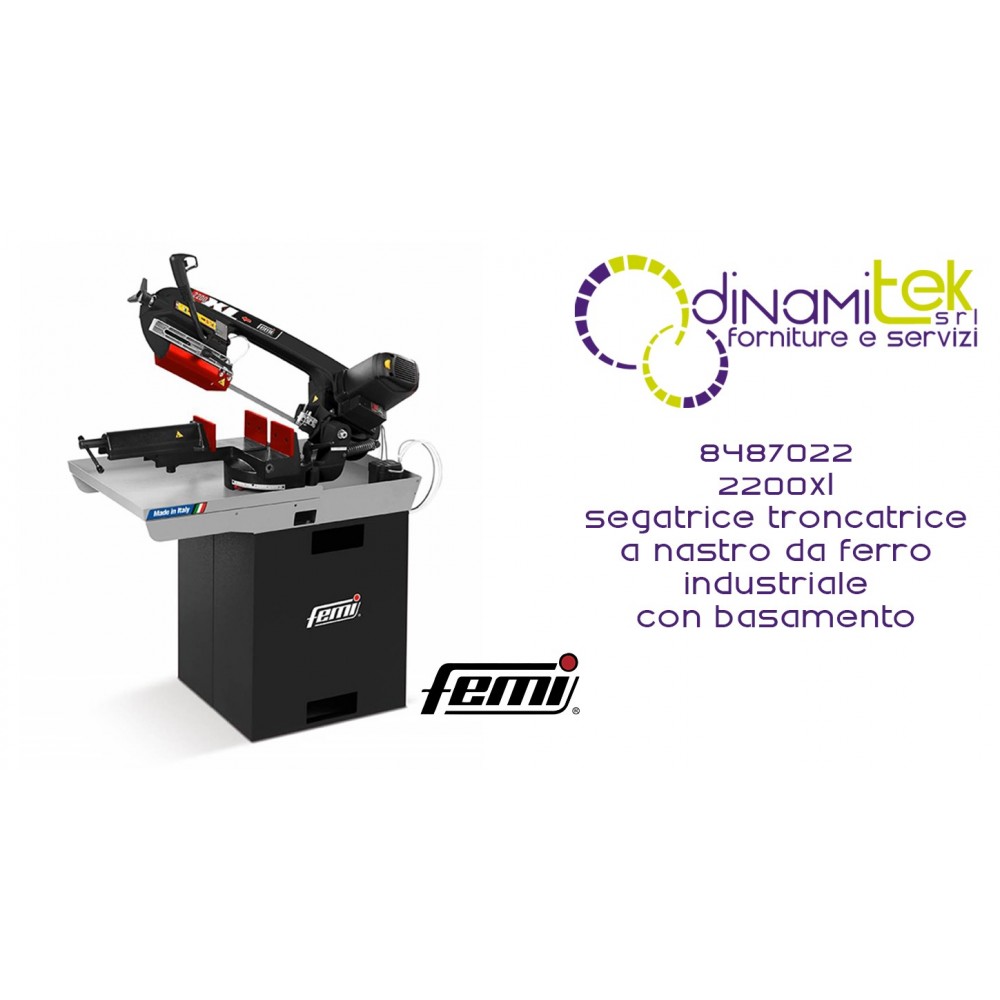

Large BAND SAW 2200 XL FEMI with powerful 2000 watt motor and sturdy die-cast aluminum structure. Bandsaw equipped with "CONSTANT SPEED" electronic speed regulator and blade tensioner with light indicator. The cut takes place with lubrication
MAXIMUM CUT 200 mm; MAX SECTION 175 mm
Cutting capacity:
0 degrees SCAT. RECTANGULAR 200x75 190x135 mm SCAT. ROUND 175 mm SCAT. SQUARE 175x175 mm
45 degrees SCAT. RECTANGULAR 150x110 mm SCAT. ROUND 110 mm SCAT. SQUARE 110x110 mm
60 degrees SCAT. RECTANGULAR 100x70 mm SCAT. ROUND 75 mm SCAT. SQUARE 75x75 mm
TECHNICAL FEATURES
Quick locking cast iron vice complete with fast sliding system and front graduated scale
Low voltage (24 V) control panel with undervoltage coil and motor magnetothermic protection
Blade tensioner with indicator light and safety micro-switch for blade integrity control
Arm balancing system protected with anti-fall compression spring
Front sliding blade guide
STANDARD EQUIPMENT
Integrated and protected cooling lubrication system.
Filter for the abatement of electromagnetic disturbances in compliance with current regulations.
Base in assembly kit.
DATA SHEET
MOTOR POWER: Watt 2000 single-phase motor 230 Volt Hz 50
BLADE 2140x19x0,9
BLADE TOOTHING 6/10 Cobalt bimetallic blade as standard
REVOLUTIONS PER MINUTE 35/80
Dimensions (depth x base x height) 780 mm x1240 mm x1080 mm
Weight 140 kg
