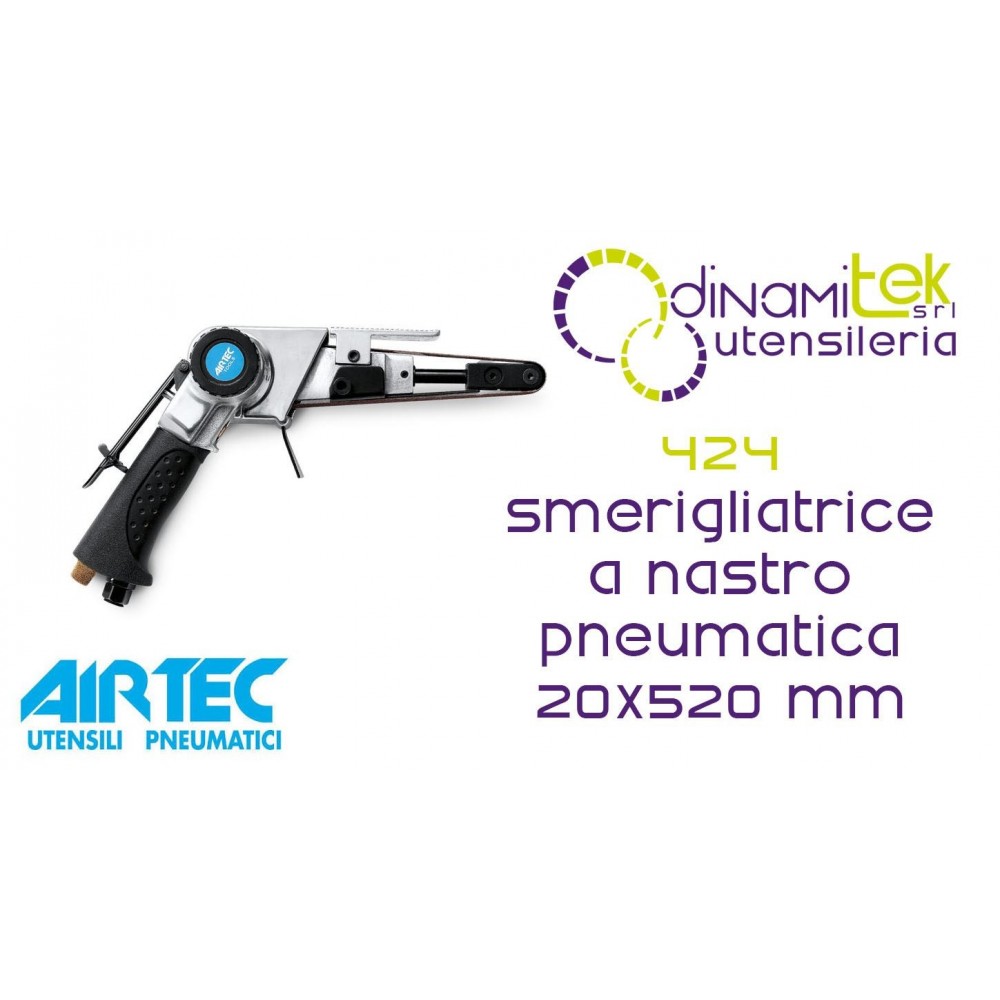

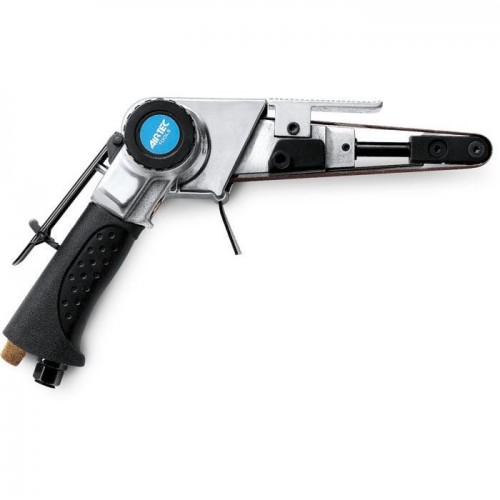

424 PNEUMATIC BELT SANDER 20X520 MM AIRTEC

Pneumatic belt grinder for 20 mm abrasive belts Airtec Model 424 (Code 13118100).

The Airtec Mod. 424 pneumatic belt grinder is a compact, easy-to-handle and powerful compressed air tool, designed by Airtec Srl for professional levelling, deburring, filing and satin finishing operations on metal surfaces, welds and composite materials.

  • 20 x 520 mm Sanding Belt Capacity: Uses 20 mm wide belts for wider work coverage and higher stock removal capacity than 10 mm models.
  • 0.52 kW 16,000 rpm pneumatic motor: develops a high no-load rotation speed of 16,000 rpm at 6.2 bar operating pressure for fast and uniform processing.
  • Swivel Arm with Position Lock: allows you to orient and firmly lock the tilt of the head in the position best suited to the geometry of the piece.
  • Ergonomic Structure with Rear Exhaust (1.40 kg): overall length of 395 mm and balanced body with air exhaust conveyed to the rear so as not to disturb the work area.
Shipping cost: €15.00 for
€261.69
229,97 € Save €31.72
Tax included

188,50 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Airtec Mod. 424 Grinder

The Airtec Mod. 424 compressed air belt grinder (Code 13118100) is the ideal professional tool for metalwork shops, body shops, and mechanical workshops that need to quickly remove material from hard-to-reach areas. The use of high-volume belts (20 x 520 mm) ensures excellent heat dissipation and longer life of the abrasive consumables.

Powered by a 1/4" BSPT threaded connection and a recommended 10mm internal diameter hose, the sander consumes an average of 12 litres of air per second. The arm lock mechanism and stable belt travel allow for precise control of sanding pressure on both sharp edges and complex curves.

Detailed Technical Data Sheet

  • Product Code / SKU: Cod. 13118100 / Mod. 424
  • Manufacturer / Brand: Airtec Srl
  • Product Type: 20mm Pneumatic Belt Grinder / Sander
  • Sanding Belt Size: 20 x 520 mm
  • Power Output: 0.52 kW
  • No-load speed: 16,000 rpm
  • Recommended Air Pressure: 6.2 bar
  • Average Air Consumption: 12.0 l/sec
  • Air Connection: 1/4" BSPT
  • Recommended Air Hose Internal Diameter: 10 mm
  • Structural Features:
    • Adjustable and lockable tape support arm in the desired position
    • Air exhaust ducted to the rear of the handle
  • Noise and Vibration Levels:
    • Sound pressure: 84 ± 3 dB(A)
    • Sound power: 92 ± 3 dB(A)
    • Vibration level: < 2.5 m/s²
  • Dimensions and Weight:
    • Total length: 395 mm
    • Net weight: 1.40 kg
  • Accessories and Related Spare Parts:
    • 20 mm sanding belt, grain P40 (Mod. AC 19/5 - Cod. 10702220)
    • 20 mm sanding belt, grain P80 (Mod. AC 19/2 - Cod. 10702200)
    • 20 mm sanding belt, grain P120 (Mod. AC 19/3 - Cod. 10702210)
    • 20 mm ceramic belts P40 / P60 / P80 (Mod. AC 120 / AC 120/1 / AC 120/2)
Wide selection of high-performance professional pneumatic grinders

AIRTEC: PROFESSIONAL PNEUMATIC TOOLS FOR WORKSHOPS AND INDUSTRY

Airtec is a brand specialising in professional pneumatic tools, designed to guarantee high performance, operational continuity and maximum reliability in mechanical, industrial and maintenance work. Airtec solutions are designed for intensive use, with robust, ergonomic tools suited to demanding working conditions.

The range mainly comprises professional pneumatic grinders, available in various configurations for cutting, deburring, finishing and material removal. Each tool stands out for its power, precision, smooth rotation, low vibration and long service life.

Airtec is recognised for reliability, build quality and consistent performance, with tools designed to ensure fast, safe and high-quality work. Professionals choose Airtec for efficiency, robustness and precision, essential elements in everyday pneumatic operations.
