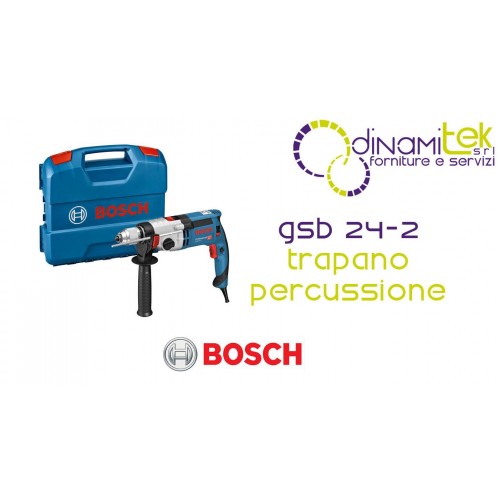

GSB 24-2 0.601.19C.801 HAMMER DRILL BOSCH
GSB 24-2 Professional: Power, Maximum Torque and KickBack Control Safety

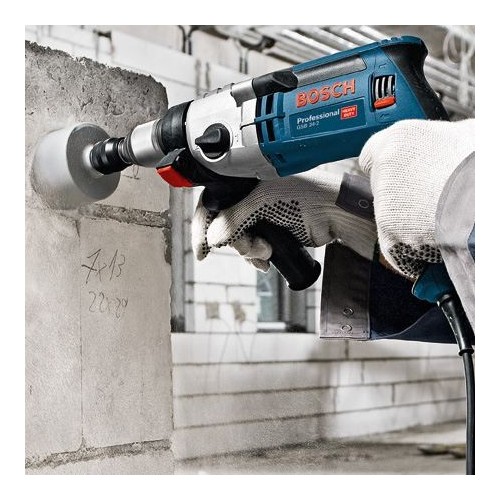

The GSB 24-2 Professional is Bosch's 1,100 Watt corded hammer drill, ideal for the most demanding applications thanks to its high torque and robust design. The machine operates at 2 speeds (up to 3,000 rpm) and is built with a robust metal gear housing that guarantees a long life.
The integration of the KickBack Control function offers greater protection to the user by interrupting rotation in the event of a sudden blockage.
GSB 24-2 Professional – 2-Speed Impact Drill (1,100 W)

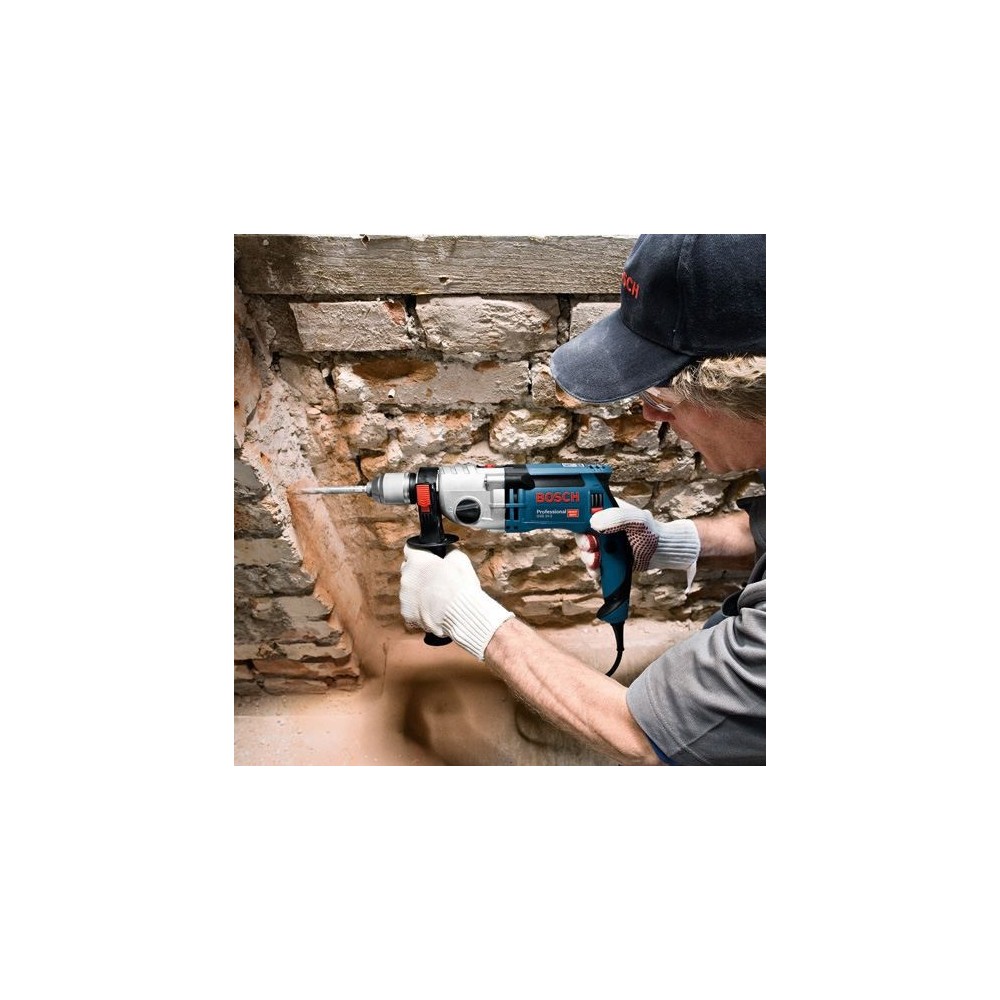

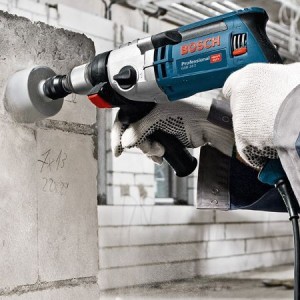

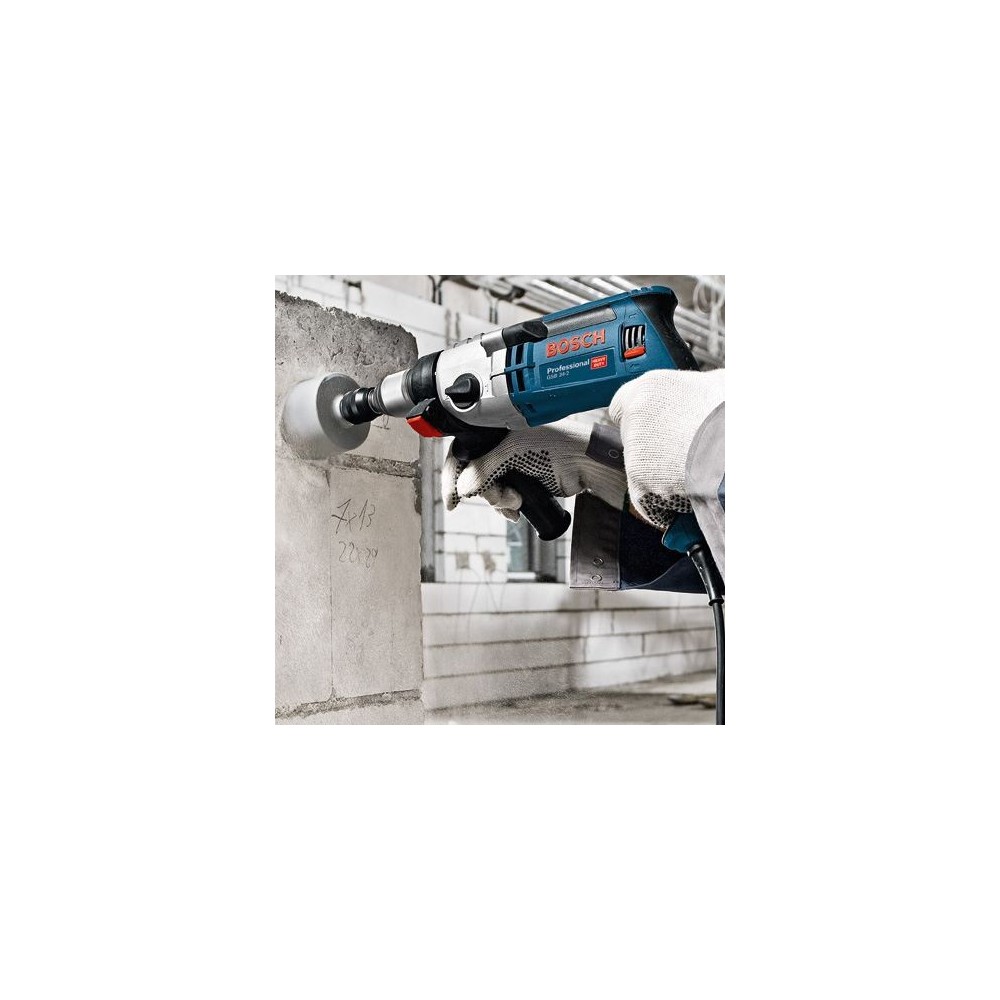

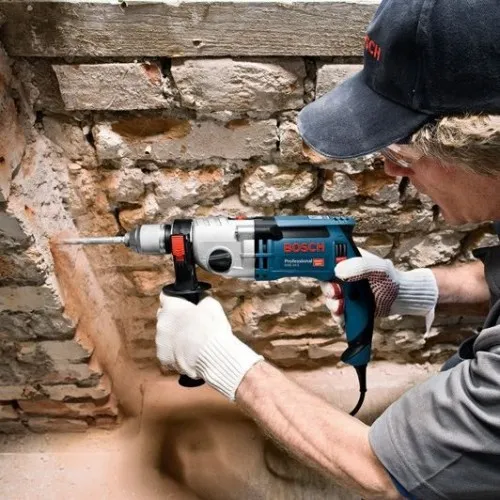

The GSB 24-2 Professional (Order No. 0 601 19C 801) is a 2-speed corded hammer drill, designed for heavy-duty work on masonry, stone, wood and metal.
Product Main Features
- Motor and Power : Equipped with a powerful 1,100 Watt motor and a maximum torque of 40.0 Nm , it is ideal for the most demanding applications.
- Speed : It has two speeds with an idle speed ranging from 0–900 rpm (1st gear) up to 3,000 rpm (2nd gear). The maximum impact rate is 51,000 min⁻¹.
- Safety: The KickBack Control function offers superior protection, together with the safety clutch and protection against accidental restart .
- Durable Construction : The sturdy metal gear housing ensures long tool life.
- Comfort and Functionality : The tool offers additional functions such as Autolock and speed selection.

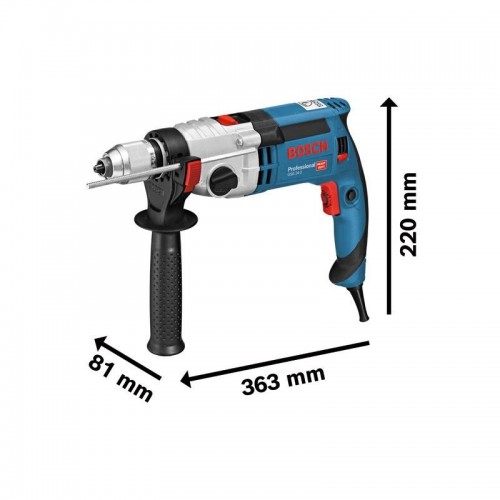

Complete Technical Data
| Identifiers and General Specifications | |
|---|---|
| Ordering code (Variant): | 0 601 19C 801 |
| Product name: | GSB 24-2 Professional |
| Nominal power consumption: | 1,100 W |
| Power output: | 630 W |
| No-load speed, 1st gear: | 0 – 900 rpm |
| No-load speed, 2nd gear: | 3,000 rpm |
| Number of strokes at idle speed: | 0 – 15,300 / 51,000 min⁻¹ |
| Torque, max.: | 40.0 Nm |

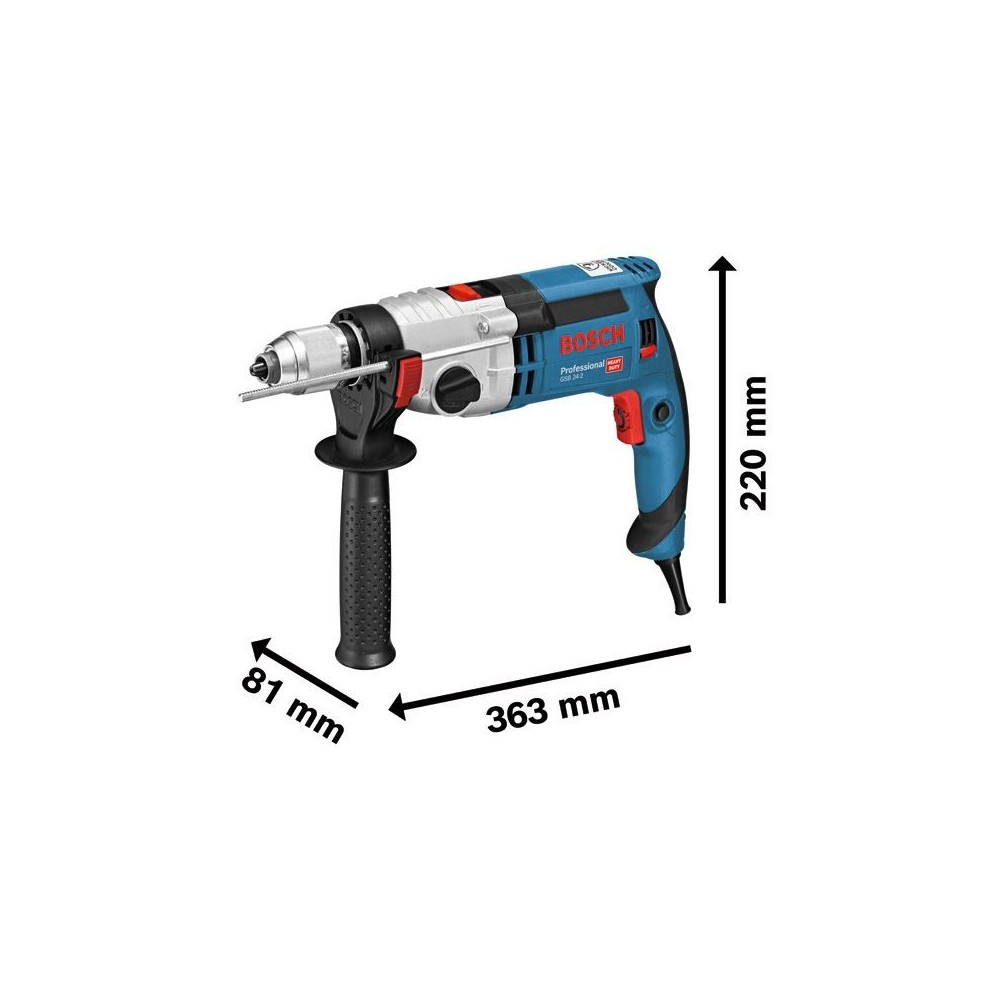

| Weight: | 2.9 kg |
| Chuck clamping range: | 1.5 – 13 mm |
| Maximum Drilling Range | |
|---|---|
| Ø wood hole: | 40 / 25 mm |
| Steel hole Ø: | 16 / 8 mm |
| Ø stone/masonry hole: | 24 / 16 mm |

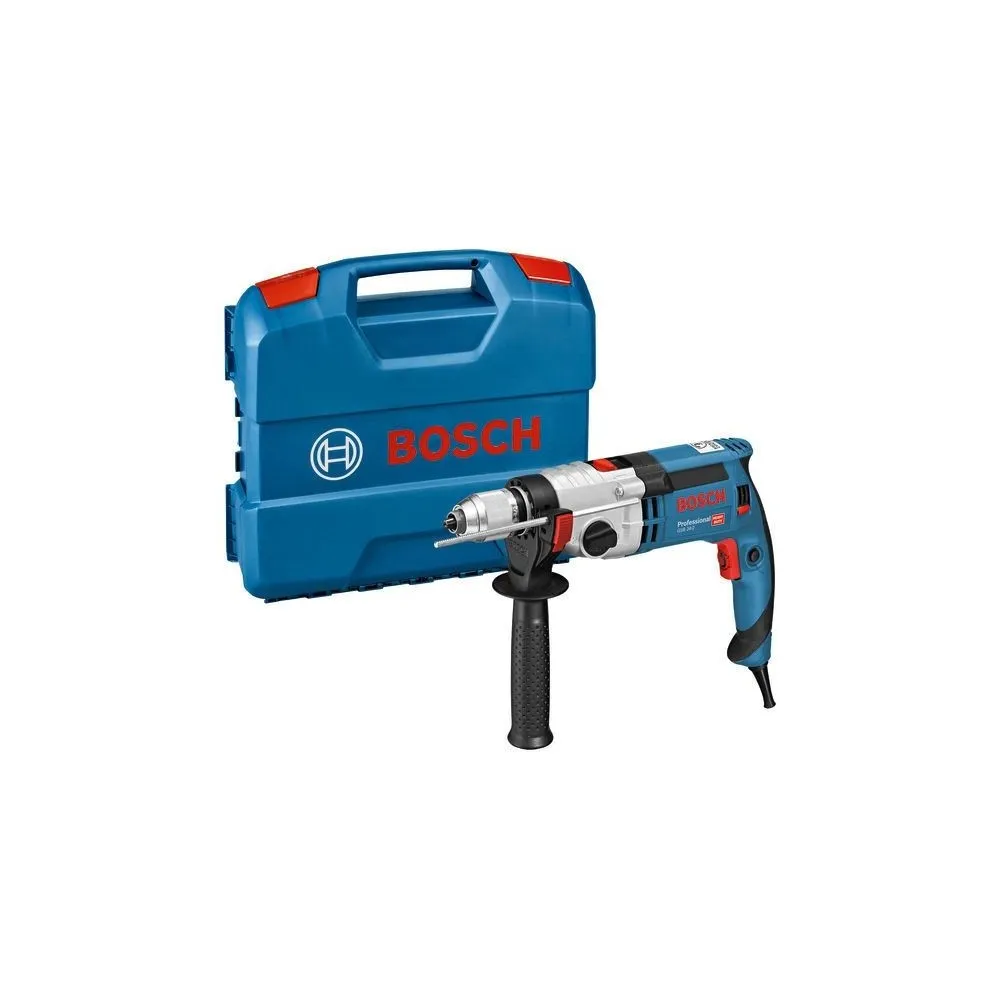

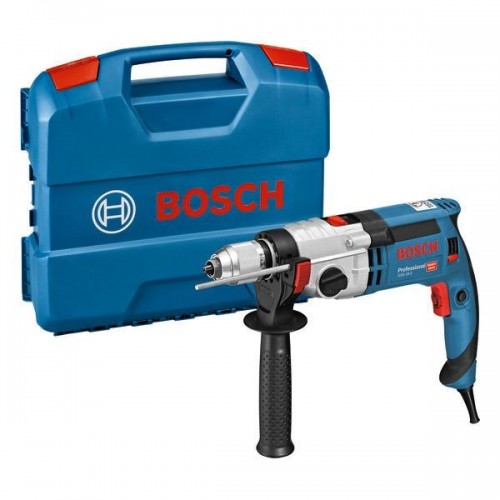

Scope of delivery (Variant 0 601 19C 801)
This variant comes with a chuck and includes:
- Additional handle (Order code: 2 602 025 193).
- Self-tightening chuck 13 mm (Order code: 2 608 572 150).
- L-Case (Order code: 1 600 A00 M7X).
- Depth limiter 210 mm (Order code: 1 613 001 010).
It is compatible with the GDE 16 Cyl Professional suction accessory, contact us if you want to order it together with your new drill info@dinamitek.com
