All-in-One Complete Painting Solution

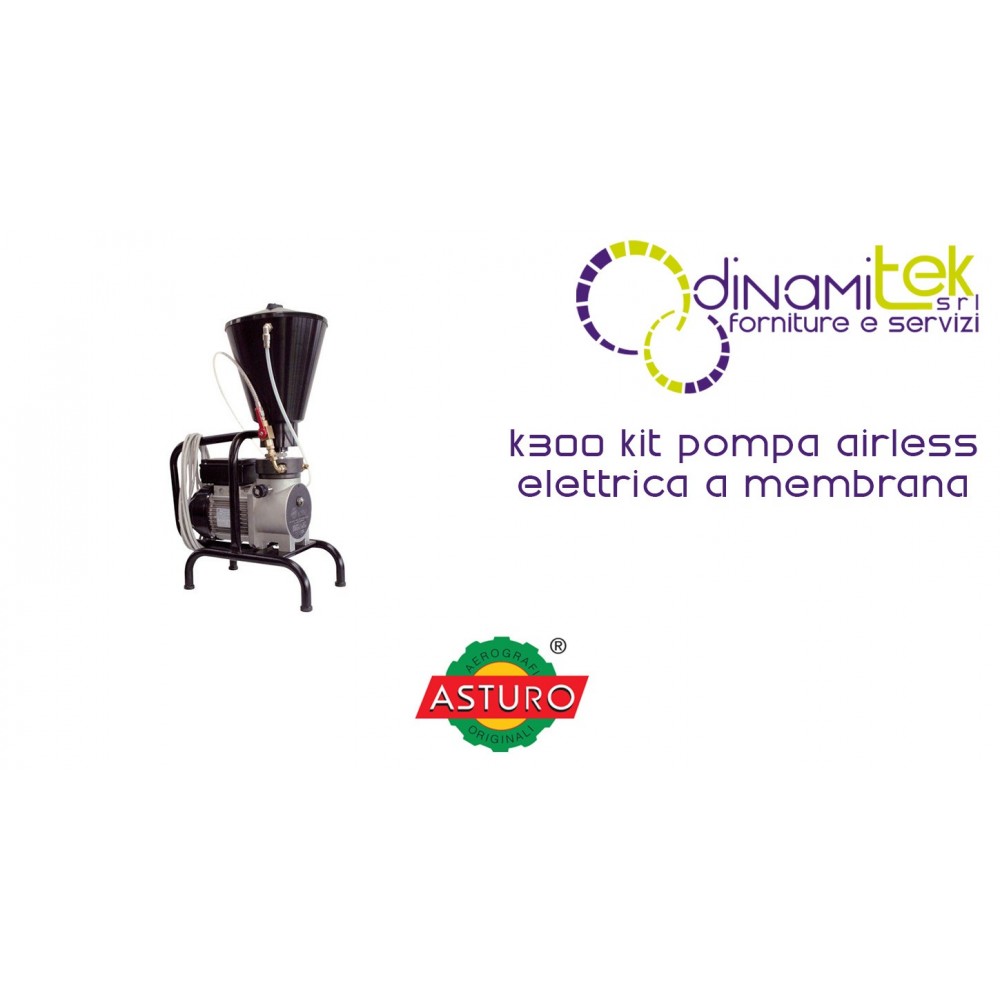

The astute K300 Pump (Code AST073003K) is offered in a complete configuration that includes all the components needed to begin painting operations immediately. This diaphragm system combines the power of a 0.75 kW motor with the convenience of a fixed, wheeled structure, ensuring reliability and precision in line with LTF's technological vision.
Composition of the Professional Kit
The set is carefully equipped to offer maximum versatility on the field:
- K300 pump: 230 V electric airless version on fixed trolley.
- Gravity tank: 5 litre capacity with F 36x2 connection.
- K90 gun: Equipped with 1/4” M connection for precise jet control.
- HAT hose: Length 10 metres with metal braid (Ø 1/4”) and 1/4” F fittings.
- Control Accessories: 1/4” FM stainless steel pressure gauge connection and MKII Speedy self-cleaner with SP nozzles in various sizes.
Areas of Application and Versatility
Thanks to its balanced configuration, the K300 kit can be used in many technical sectors:
- Construction: Ideal for interior painting and building renovation work such as repairing cracks with fillers.
- Craft: Perfect for finishing small to medium sized objects.
- Agriculture: Can be used effectively for the application of pesticides.
Usable Materials
The system is compatible with a wide range of paint and protective products:
- Synthetic, acrylic and water-based paints.
- Single-component and two-component enamels, polyurethanes and epoxies.
- Water-based paints, washable paints, dispersion paints, impregnating paints and anti-rust paints.
- Primers, fillers and crack sealants.
Technical Reference Data
- Free flow: 2.8 lt./min.
- Power supply: 230 V – 50 Hz (0.75 kW).
- Maximum product pressure: 200 bar.
- Supported nozzle range: 7 ÷ 18 µ/inch.
- Dimensions and Weight: 800x490x230 mm for a total weight of 26 kg.
