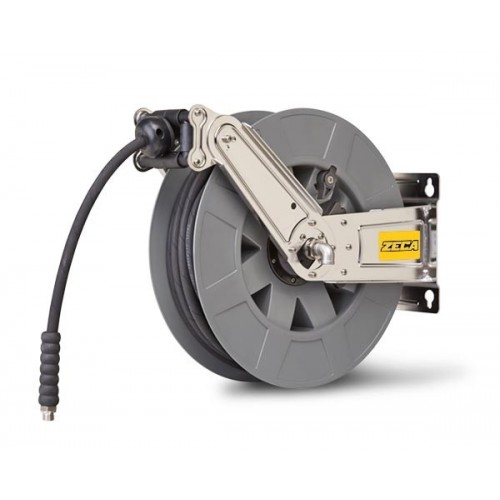

8448/1000 8400 SERIES STAINLESS STEEL LIGHT HOSE REEL FOR OIL AND WATER 180 BAR BLUE HOSE 18 M - INNER TUBE DIAMETER 10 MM ZECA

OIL-WATER HOSE REEL 180 Bar SERIES 8400 LIGHT INOX NEW.

AISI 304 stainless steel bracket.

Standard joint.

Brass outlet fitting.

Stainless steel screws.

Shipping cost: Free for
396,81 €
Tax included

396,81 € Tax excluded

Quantity
Available product, order it now.

8448/1000 LIGHT STAINLESS STEEL HOSE REEL 8400 SERIES FOR OIL AND WATER 180 BAR Zeca BLUE HOSE 18 m - INT. HOSE DIAM. 10 mm
Special 8400 LIGHT INOX series hose reel for high-pressure oil and water delivery. The new 8400 series offers improved performance and durability, making it ideal for use in harsh environments. 8400 LIGHT INOX hose reels are also resistant to corrosive environments.
The hose reel features an ABS reel, an automatic hose stop system, a positionable roller nozzle, and an adjustable hose stopper. It's incredibly easy to use.
They are suitable for a variety of applications, from the food, marine, and chemical industries, to aggressive work environments and corrosive atmospheres. Ideal for industrial cleaning, blowing operations, and the transport of fluids such as air, water, oil, and diesel.
Construction materials

steel coil shaft
FPM (viton) gasket
brass bushing
rotating joint shaft in brass/AISI 304 stainless steel
brass ring
PTFE rod guide ring
brass inlet fitting
AISI 304 stainless steel brackets
AISI 316L stainless steel screws
Steel/brass outlet fitting
Brass inlet fitting
Rotary joint shaft in brass/AISI 304 stainless steel
Steel coil shaft, brass bushings and rings

Technical data sheet

Fluid
oil type – water 200 bar
temperature -15°C / +130°C
Tube
pipe type EN857 1 SC Blue Non Marking
tube diameter 10 mm 3/8”
tube length 18 m
Connections
3/8”F inlet
3/8”M swivel outlet
Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8448/1000

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
