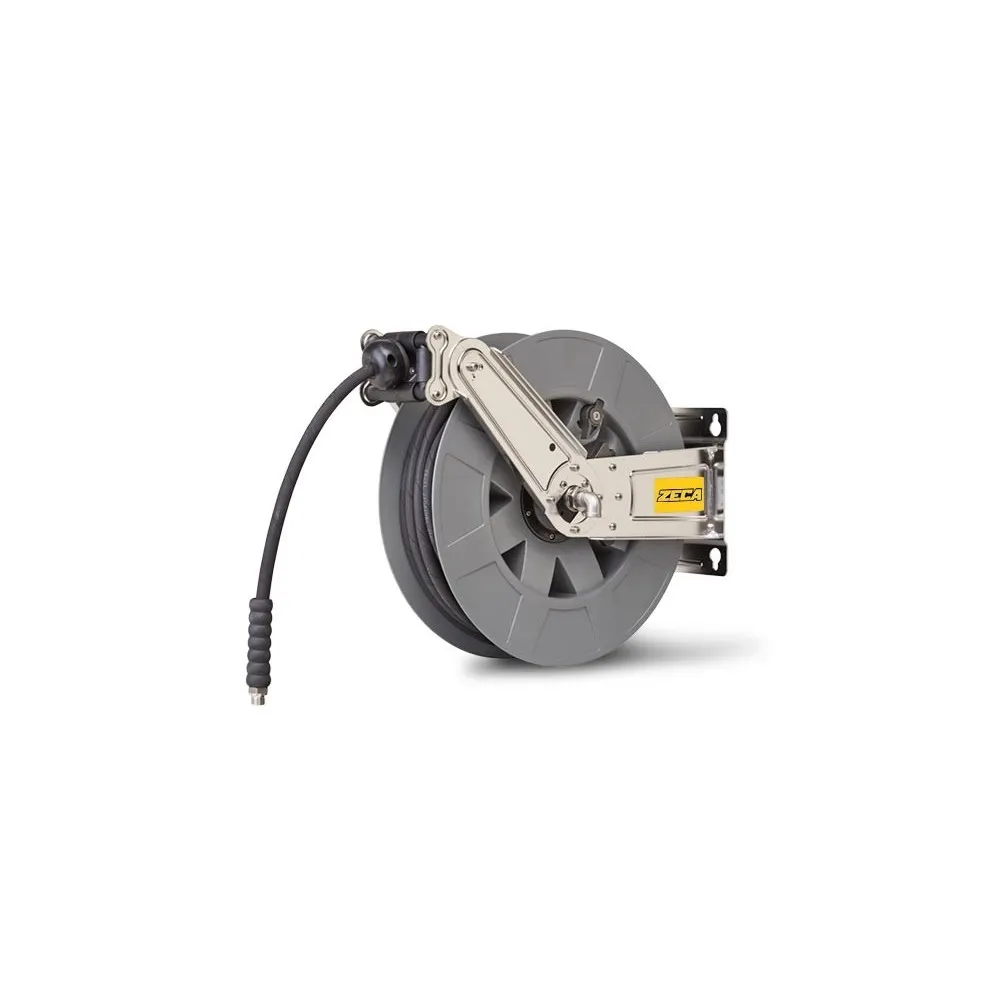

8432/1001 HOSE REEL LIGHT STAINLESS STEEL SERIES 8400 FOR WATER 15 BAR ZECA PIPE M 12 - DIAM INT PIPE 12.5 MM

HOSE reel WATER the 15-Bar SERIES 8400 LIGHT STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

The standard coupling.

Connector in brass.

STAINLESS steel bolts and screws.

Shipping cost: Free for
375,13 €
Tax included

307,48 € Tax excluded

Quantity
Available product, order it now.

8432/1001 HOSE reel LIGHT STAINLESS steel SERIES 8400 FOR WATER-FOOD INDUSTRY 15 BAR ZECA PIPE m 12 - DIAM INT PIPE 12.5 mm
Technical improvements and the materials of the realisation of value are the features that make this series powerful, suited to the needs of industrial production, where it is necessary to use equipment that can withstand aggressive environments and corrosive atmospheres. The model 8432 is used in the food industry and in kitchens.
The hose reel 8432 is made with the coil in the ABS. The use is facilitated by three systems that have the task to follow the movement of the pipe both in input and output:

automatic stop system of the tube
the mouth of the rollers can be positioned in different configurations
buffer wraps adjustable
Materials of construction of the hose reel:
Fitting inlet:
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft rotary joint in brass/STAINLESS steel AISI 304
ring brass
Ring rod guide, PTFE
the fitting on the inlet side in brass
Brackets in STAINLESS steel AISI 304
Screws in STAINLESS steel AISI 316L
Connector stainless steel/brass
Data sheet
Fluid
type water 15 bar
temperature -10°C / +60°C
Tube
tube type PU – FOOD QUALITY
tube diameter 12,5 mm 1/2”
pipe length 20 m
Fittings
inlet 1/2”F
outlet 1/2”M

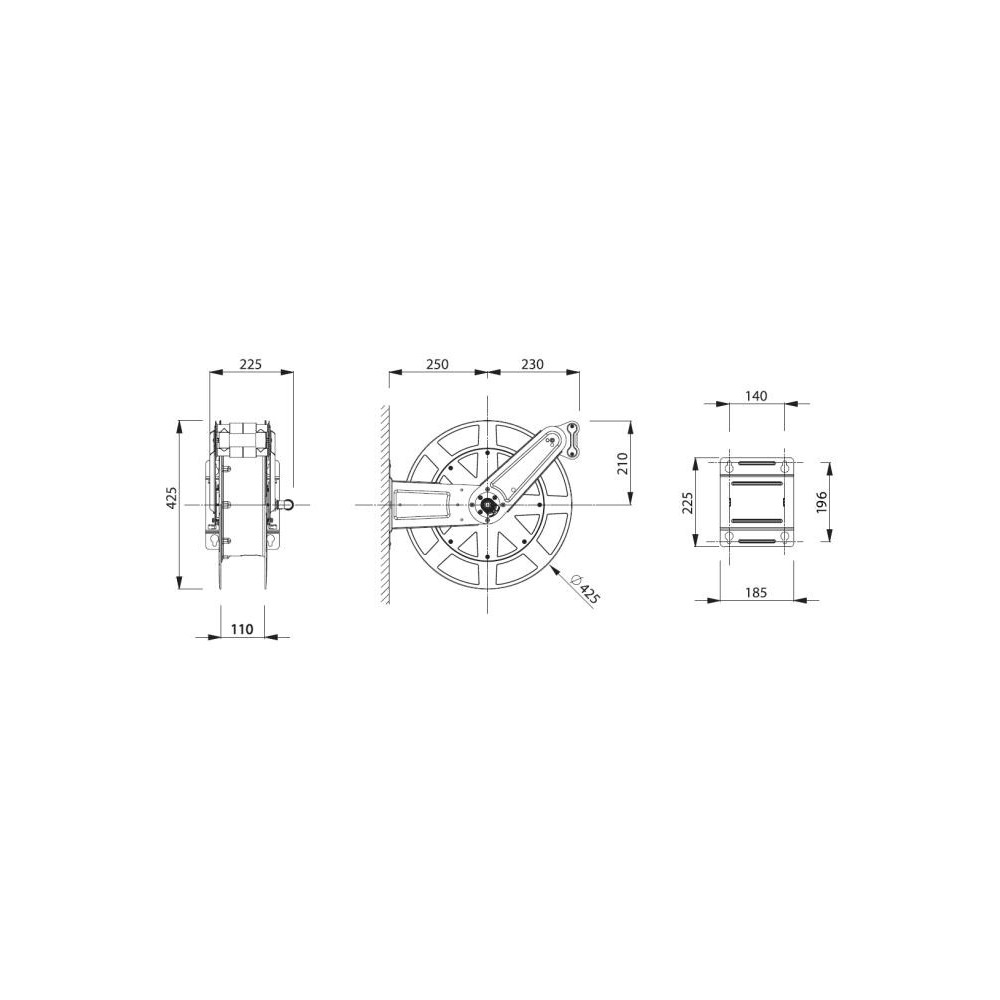

Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC
Tube PU – FOOD QUALITY is certified (according to EU Regulation 1935/2004 and regulation EU 10/2011) suitable for contact with food. It is not suitable to the passage of liquid food.
The hose reel 8432/1001 is used in large kitchens and in the food industry
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8432/1001

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
