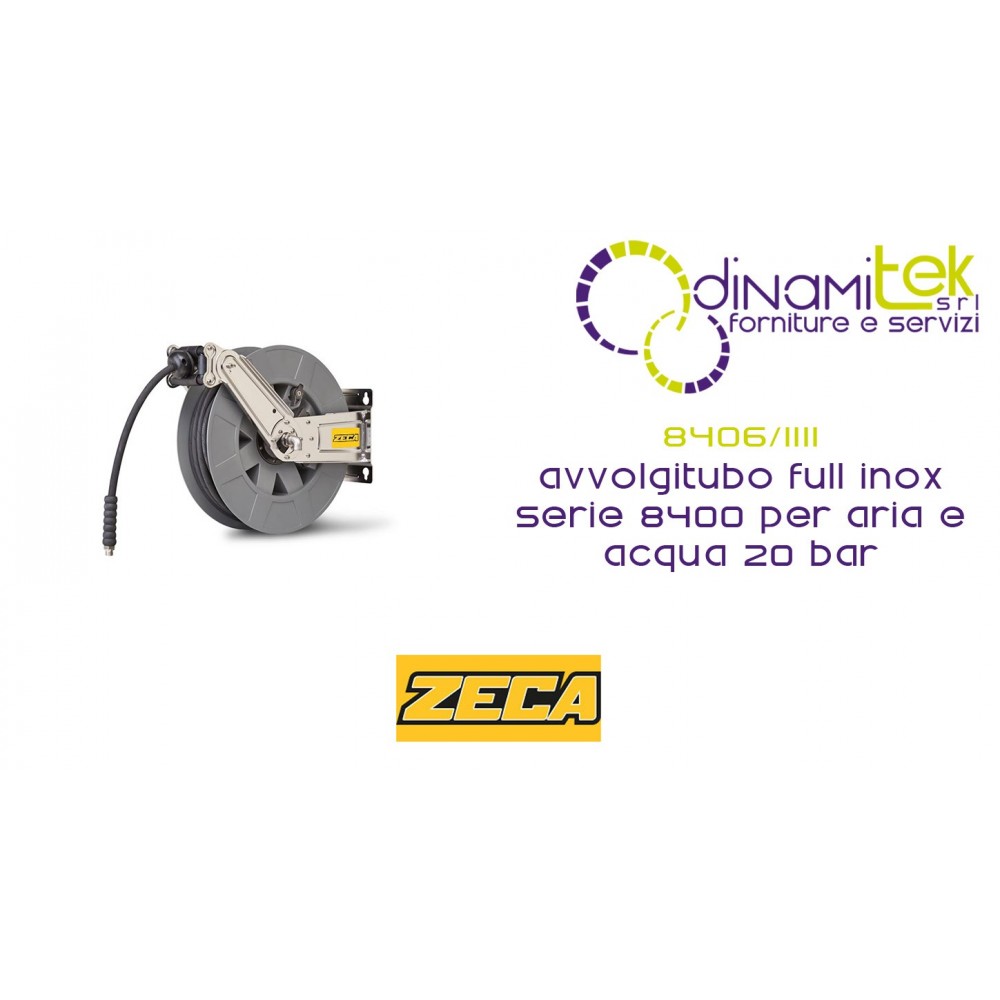

8406/1111 HOSE REEL FULL STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE M 18 - DIAM INT PIPE 10 MM

HOSE AIR -WATER 20 Bar SERIES 8400 FULL STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

Rotary coupling and hose inlet of STAINLESS steel.

Connection output STAINLESS steel.

STAINLESS steel bolts and screws.

Shipping cost: Free for
479,18 €
Tax included

392,77 € Tax excluded

Quantity
Available product, order it now.

8406/1111 HOSE reel FULL STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE m 18 - DIAM INT
The hose reel 8400 in the new special edition FULL STAINLESS steel, are suitable in different field of application: marine, chemical industry, work environments, aggressive and corrosive atmospheres, industrial cleaning operations, blowing and transport of fluids
The special hose reel zeca has the coil in durable ABS plastic.
Every detail is done with care, using only quality materials.
For example, the coupling input is formed by:
tree coil in STAINLESS steel AISI 304
seal in FPM (Viton)
bushing AISI 304 STAINLESS
shaft coupling the rotating STAINLESS steel AISI 304
ring in STAINLESS steel AISI 304
In addition, the special 8400 FULL INOX is equipped with:
Brackets in STAINLESS steel AISI 304
Rotary coupling and hose inlet of STAINLESS steel
Screws in STAINLESS steel AISI 316L
Coupling output and coupling input in STAINLESS steel AISI 316L
Tree, coil, bushings, locknuts and shaft coupling the rotating STAINLESS steel AISI 30

In addition to the high-quality materials, the hose reel is also distinguished for its excellent functionality. The automatic stop system of the tube allows you to lock the performance to the desired length. The mouth of the rollers is instead positionable in various configurations to facilitate the movement of the pipe both in input and output. The pad bracket is adjustable.

Data sheet
Fluid
type air – water 20 bar
temperature -15°C / +50°C
Tube
tube type SAE 100R6
tube diameter 10 mm 3/8”
tube length 18 m
Fittings
inlet 1/2”F
outlet 3/8”M
Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8406/1111

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
