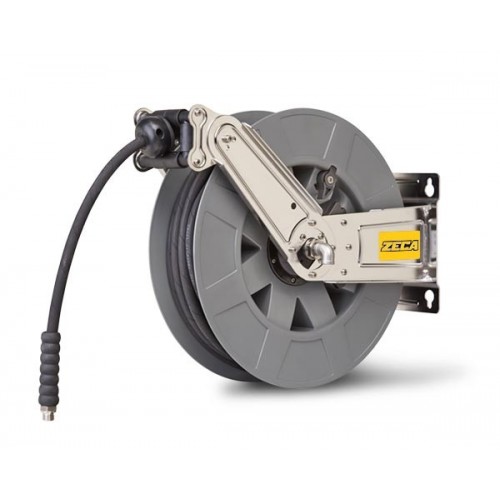

8404/1000 HOSE REEL LIGHT STAINLESS STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE M 12 - DIAM INT PIPE 10 MM

HOSE AIR -WATER 20 Bar SERIES 8400 LIGHT STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

The standard coupling.

Connector in brass.

STAINLESS steel bolts and screws.

Shipping cost: Free for
334,05 €
Tax included

273,81 € Tax excluded

Quantity
Available product, order it now.

8404/1000 HOSE reel LIGHT STAINLESS steel SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE m 12 - DIAM INT
The hose reel 8400 in an innovative series of stainless steels are still the best performing
Suitable to be used in work environments with aggressive and corrosive atmospheres, are used in the chemical industry, in the marine and in the industrial sector. They are ideal for the transport of fluids for industrial cleaning and for the operations of blow molding.
The hose reel 8404/1000 has the coil in ABS. STAINLESS steel brackets and screws. The connector is made of steel/brass, the fitting inlet is made of brass, in the datasheet are specified all the materials of construction of the individual components.
To facilitate the operation, the hose reel is equipped with automatic stop system of the tube, to work convenient to the desired length. The mouth of the rollers is positionable in a variety of configurations. The tube unfolds and rewinds always so easy and simple. The pad bracket is adjustable.
Data sheet
Fluid
type air – water 20 bar
temperature -15°C / +50°C
Tube
tube type SAE 100R6
tube diameter 10 mm 3/8”
tube length 12 m
Fittings
inlet 1/2”F
outlet 3/8”M
Detail of the fitting in the entrance
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft rotary joint in brass/STAINLESS steel AISI 304
ring brass
Ring rod guide, PTFE
the fitting on the inlet side in brass

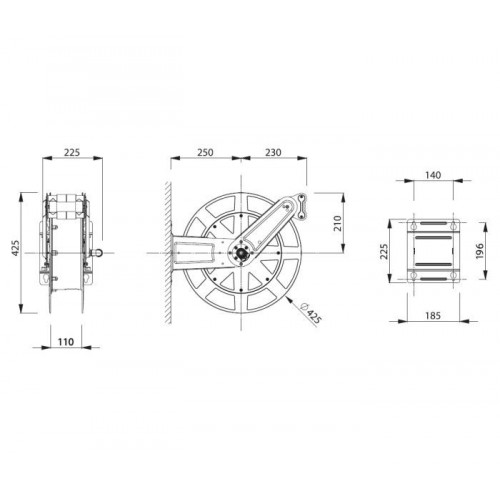

Size 550X505X270 mm

ISO EN 12100 EC 2006/42/EC
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8404/1000

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
