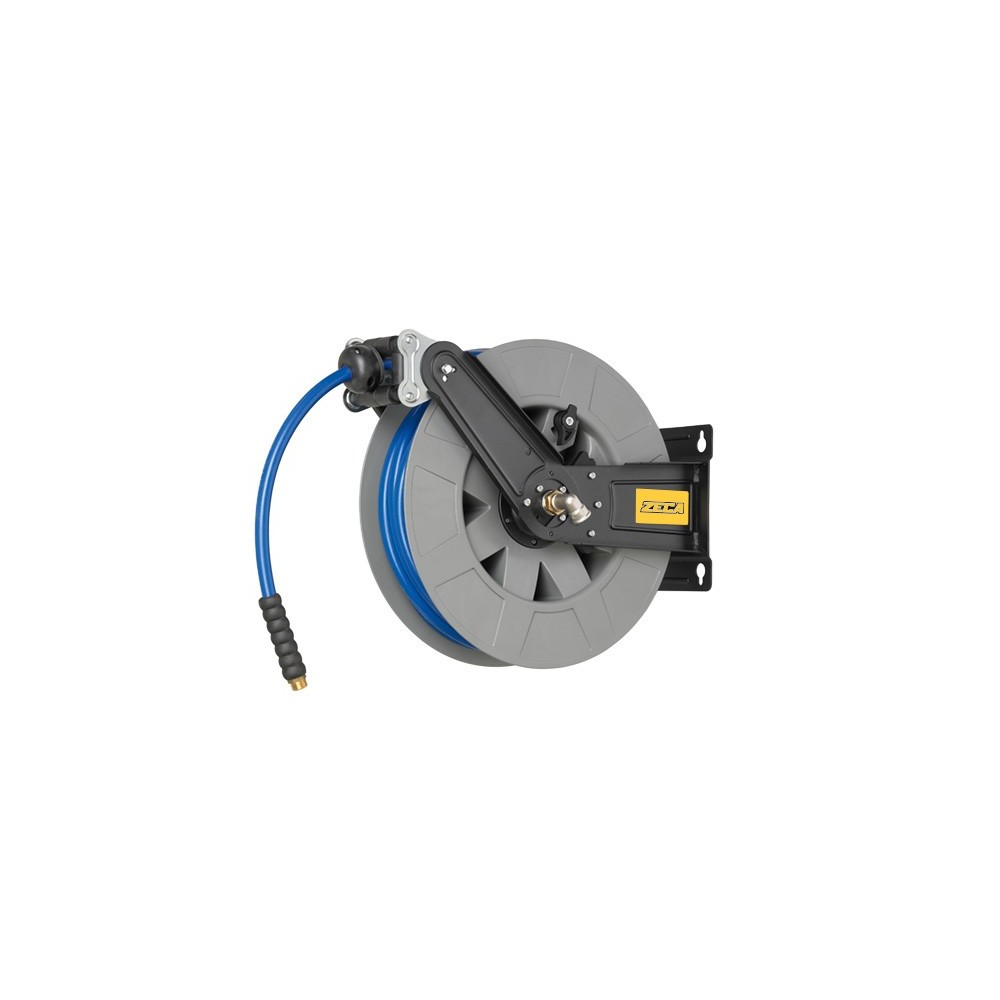

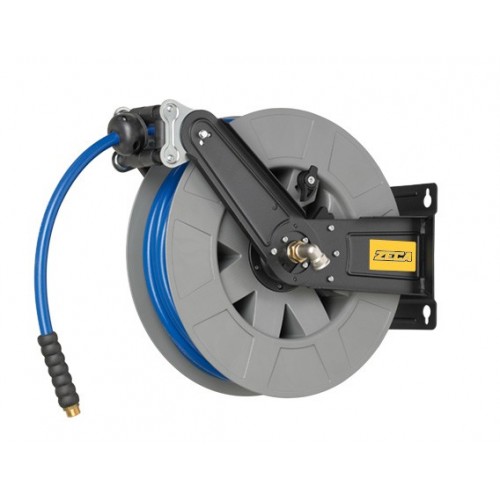

8462 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE 12 M - DIAM INT PIPE 6 MM Dinamitek 1
  • 8462 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE 12 M - DIAM INT PIPE 6 MM Dinamitek 1
  • 8462 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE 12 M - DIAM INT PIPE 6 MM Dinamitek 2
  • 8462 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE 12 M - DIAM INT PIPE 6 MM Dinamitek 3

8462 HOSE REELS SERIES 8400 FOR OIL AND GREASE 400 BAR ZECA PIPE M 12 - DIAM INT PIPE 6 MM

HOSE reel, OIL GREASE 400 Bar SERIES 8400.

Bracket in steel painted with epoxy powders.

The standard coupling. Connector in brass.

Steel bolts and screws.

Shipping cost: Free for
251,37 €
Tax included

251,37 € Tax excluded

Quantity
Available product, order it now.

8462 HOSE reels SERIES 8400 FOR OIL AND GREASE 400 BAR ZECA PIPE m 12 - DIAM INT PIPE 6 mm
The HOSE reel 8462 SERVES for THE PASSAGE OF OIL AND GREASE 400 BAR
Avvolgitubp high pressure for aviation, military, marine, mining, construction, chemical, car workshop, industry
Technological development and choice of the best materials in the production of hose reel evenings 8400 the best hose reel in the same category
reels hose guiding self-lubricated, mouth-to-reel adjustable
automatic stop system, the buffer wraps adjustable and removable, spring-loaded stop technology with maximo process
coil ABS,
the rotary joint without bottlenecks and with a low coefficient of friction
bushings supporting the rolls in the material self-lubricating
fixing brackets in steel, epoxy powder coated, spherical
the joint is of the standard type
connector is made of brass/steel
steel bolts and screws
Data sheet

Hose reel:
maximum pressure Bar 400
using fat oil
fluid temperature -20°C/+120°C

Tube:
diameter mm 6 ¼ ”
length m 12
type EN 857 2SC

Fittings:
inlet 3/8” F
output ¼ ” M

Detail fitting of entry:
shaft steel coil
seal in FPM (Viton)
Bushing brass
Shaft rotary joint of AISI 304 STAINLESS steel or brass for the models in the range which operate at low pressure
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass

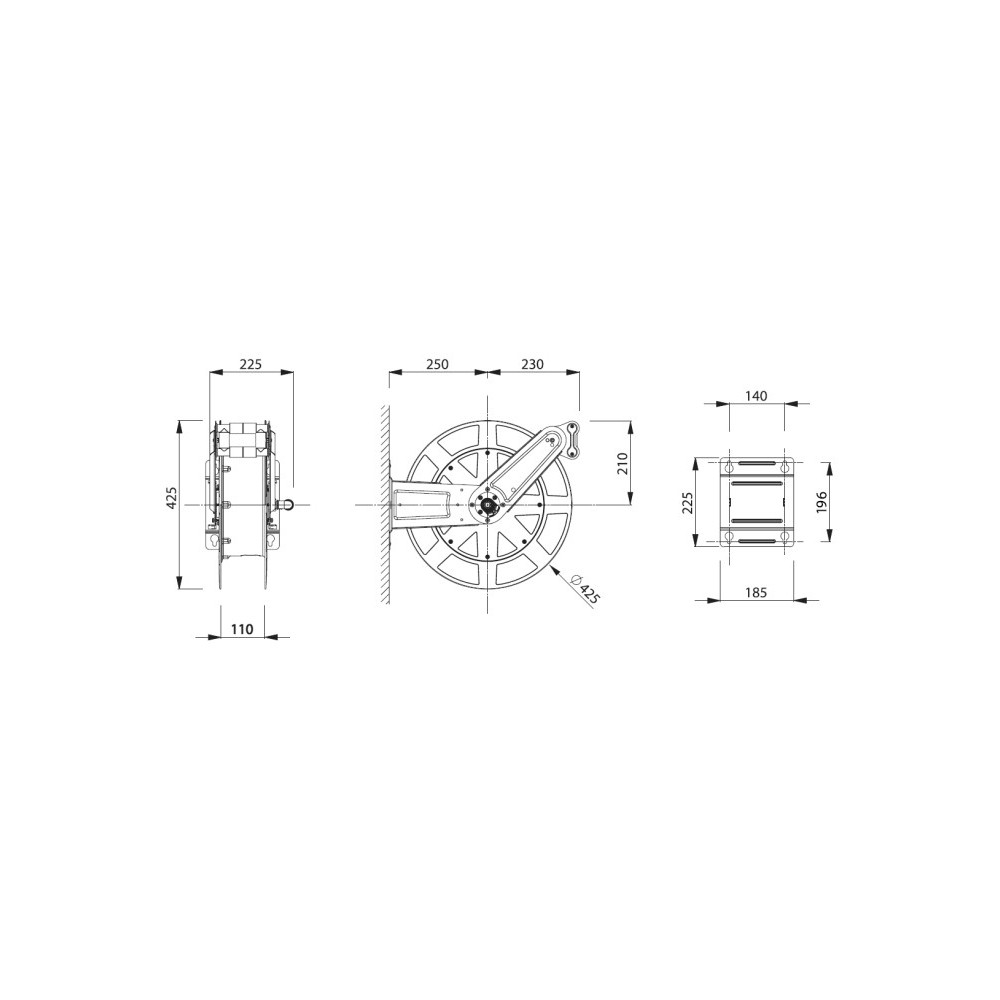

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8462

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
