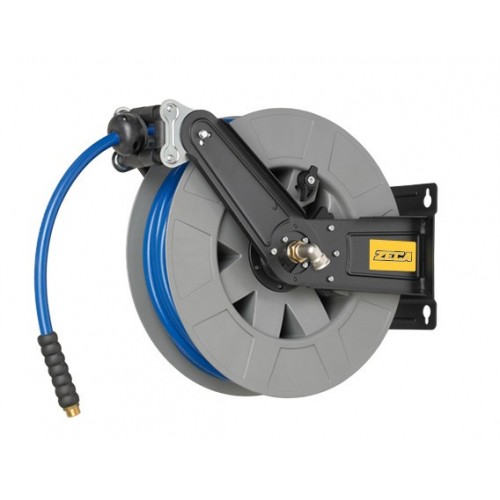

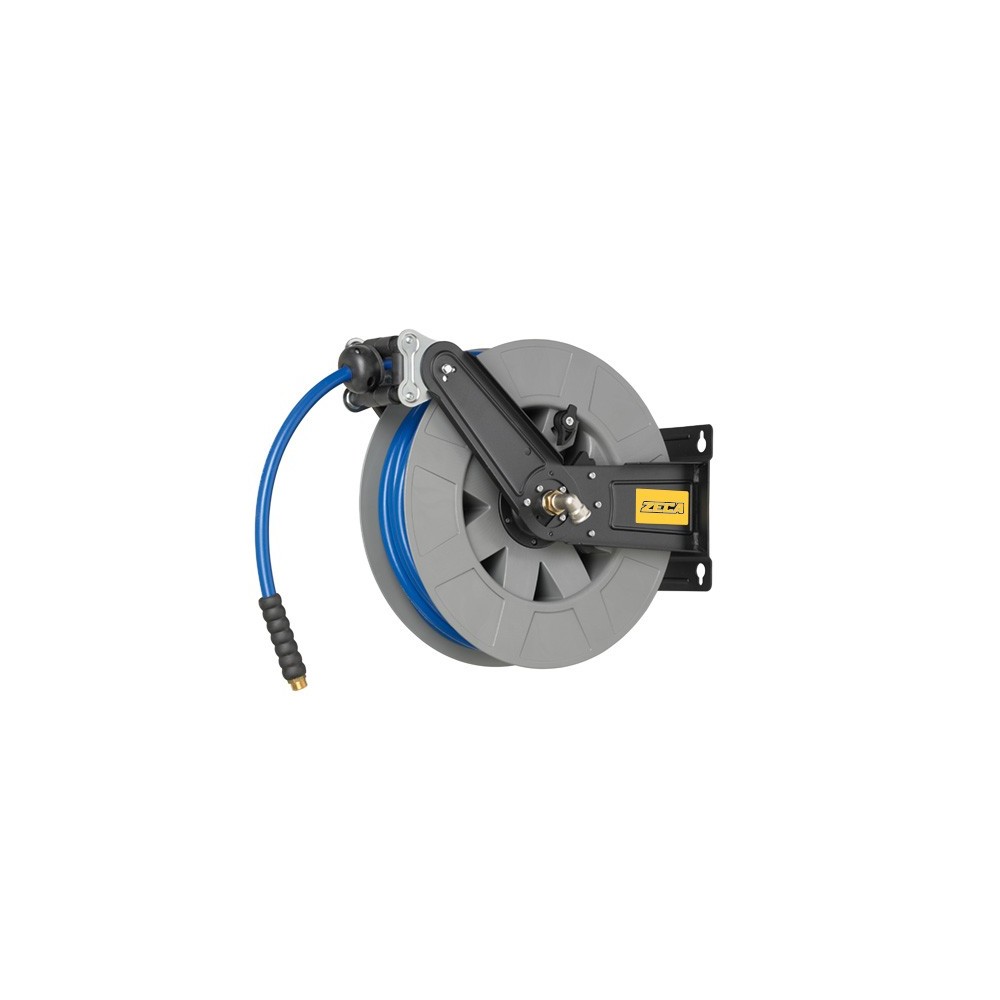

8432 HOSE REEL ZECA SERIES 8400 FOR WATER-FOOD INDUSTRY-15 BAR-HOSE 12 M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8432 HOSE REEL ZECA SERIES 8400 FOR WATER-FOOD INDUSTRY-15 BAR-HOSE 12 M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8432 HOSE REEL ZECA SERIES 8400 FOR WATER-FOOD INDUSTRY-15 BAR-HOSE 12 M - DIAM INT PIPE 12.5 MM Dinamitek 2
  • 8432 HOSE REEL ZECA SERIES 8400 FOR WATER-FOOD INDUSTRY-15 BAR-HOSE 12 M - DIAM INT PIPE 12.5 MM Dinamitek 3

8432 8400 SERIES HOSE REEL FOR WATER, FOOD INDUSTRY, 15 BAR, 12 M HOSE - 12.5 MM INNER DIAMETER HOSE ZECA

WATER HOSE REEL 15 Bar SERIES 8400 special for the food industry and large kitchens.

Epoxy powder coated steel bracket.

Standard joint.

Brass outlet fitting.

Steel screws.

Shipping cost: Free for
367,46 €
Tax included

301,20 € Tax excluded

Quantity
Available product, order it now.

8432 HOSE REEL SERIES 8400 FOR WATER 15 BAR Zeca HOSE m 12 - INT DIAM. HOSE 12.5 mm
Special model, PU-FOOD QUALITY type, certified according to EU Regulation 1935/2004 and EU Regulation 10/2011, suitable for contact with food. WARNING: This hose is not suitable for carrying food-grade liquids.

The 8432 hose reel is used in the food industry and in large kitchens
THE 8432 HOSE REEL IS FOR THE PASSAGE OF WATER AT 15 BAR
Technological development at your service
- ABS coil,
- coil support bushings made of self-lubricating material
- automatic tube stop system
- removable and adjustable hose stopper
- roller mouth positionable in different configurations
- self-lubricated pipe guide rollers
- Maximo process technology rewinding spring
- rotary joint without constriction and with low friction coefficient
- hose reel fixing brackets in epoxy powder coated steel
- swivel bracket
- standard joint
- brass/steel outlet fitting
- real steel screws

The 8432 cable reel is made with the finest materials. The output connector features:
steel coil shaft
FPM (Viton) gasket
brass bushing
rotating joint shaft in AISI 304 stainless steel or brass for the models in the range that work at low pressure
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting

Technical data sheet

Hose reel:
maximum pressure Bar 15
air usage
fluid temperature -10°C/+60°C

Tube:
diameter mm 12.5 ½”
length 12 m
PU-FOOD QUALITY type

Connections:
½” F entry
½” M outlet

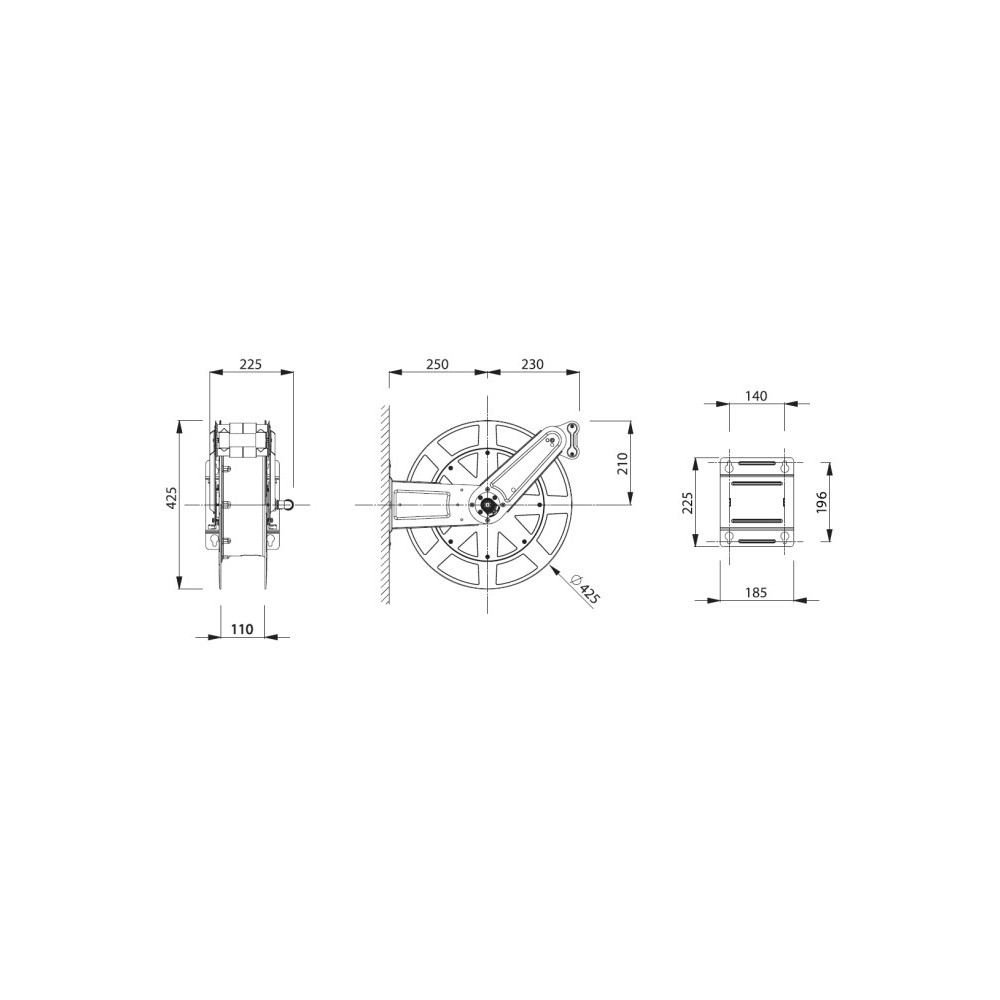

Dimensions and weight 550x505x270 mm, 10 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8432

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
