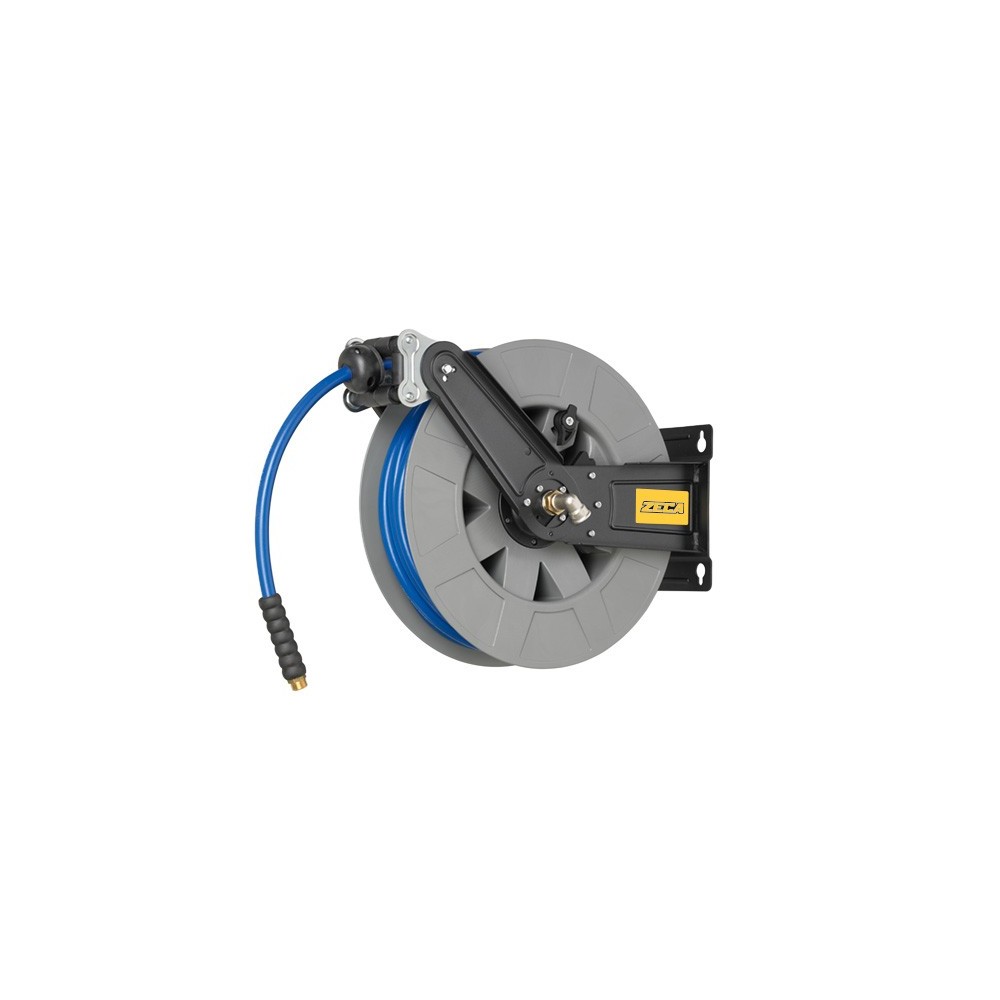

8402 HOSE REEL SERIES 8400 FOR AIR AND WATER 20 BAR Zeca HOSE m 20 - INT DIAM. HOSE 8 mm
The 8400 Zeca hose reel series serves a truly wide range of fluids. The fields of application for 8400 series hose reels are truly diverse: refueling, aviation, military, marine, mining, construction, agriculture, chemical, auto repair, industry, car washes, industrial cleaning, food processing, and large kitchens. For each type of fluid, Zeca offers a specific 8400 hose reel, designed to optimize the passage of the fluid itself. Hose reels differ by hose type, inlet and outlet connections, and above all by the type of fluid, pressure, and operating temperature they support.
With the 8400 series hose reels you can transport air, high pressure water, hot water, oil, diesel, Ad Blue. Some models comply with Directive 2014/34/EU II 2GD c IIB T4/T135°CX. Type Examination Certificate Number IMQ 14 ATEX 009 X. Compliant with the EN 13463-1:2009; EN 13463-5:2011 standards. You can recognize them by the yellow hexagonal label with the Ex acronym inside.
THE 8402 HOSE REEL IS FOR THE PASSAGE OF AIR AND WATER AT 20 BAR
The 8400 hose reels are technically advanced and crafted with the utmost attention to detail. A small but useful detail will improve your hose reel operation and your entire workday: the Zeca automatic hose stop system allows you to keep the hose at the desired length. The hose stopper is removable, as needed.
The roller mouth can be positioned in various configurations, facilitating both infeed and outfeed movement: you'll never be hindered either during unwinding or rewinding. The hose stopper is also adjustable. The 8400 hose reel offers numerous options for customizing and adapting its use to the specific needs of your workshop. The rewind spring is made with Maximo Process technology.
The hose reel mounting brackets are made of epoxy powder-coated steel, making them much more durable. They can also be adjusted to suit any installation. The joint is standard. The outlet fitting is made of brass/steel, and the screws are made of real steel.
Development and Technology:
self-lubricated pipe guide rollers
ABS coil,
rotary joint without constriction and with low friction coefficient
coil support bushings in self-lubricating material
Entrance connection detail:
steel coil shaft
FPM (Viton) gasket
Brass bushing
Rotating joint shaft in AISI 304 stainless steel or brass for models in the range that work at low pressure
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting
Technical data sheet
Hose reel:
maximum pressure Bar 20
use of air and water
fluid temperature -15°C/+50°C
Tube:
diameter 8 5/16” mm
length 20 m
SAE 100R6 type
Connections:
½” F entry
¼” M outlet
ISO EN 12100 CE 2006/42/CE regulation
Dimensions and weight 550x505x270 mm, 10 kg
