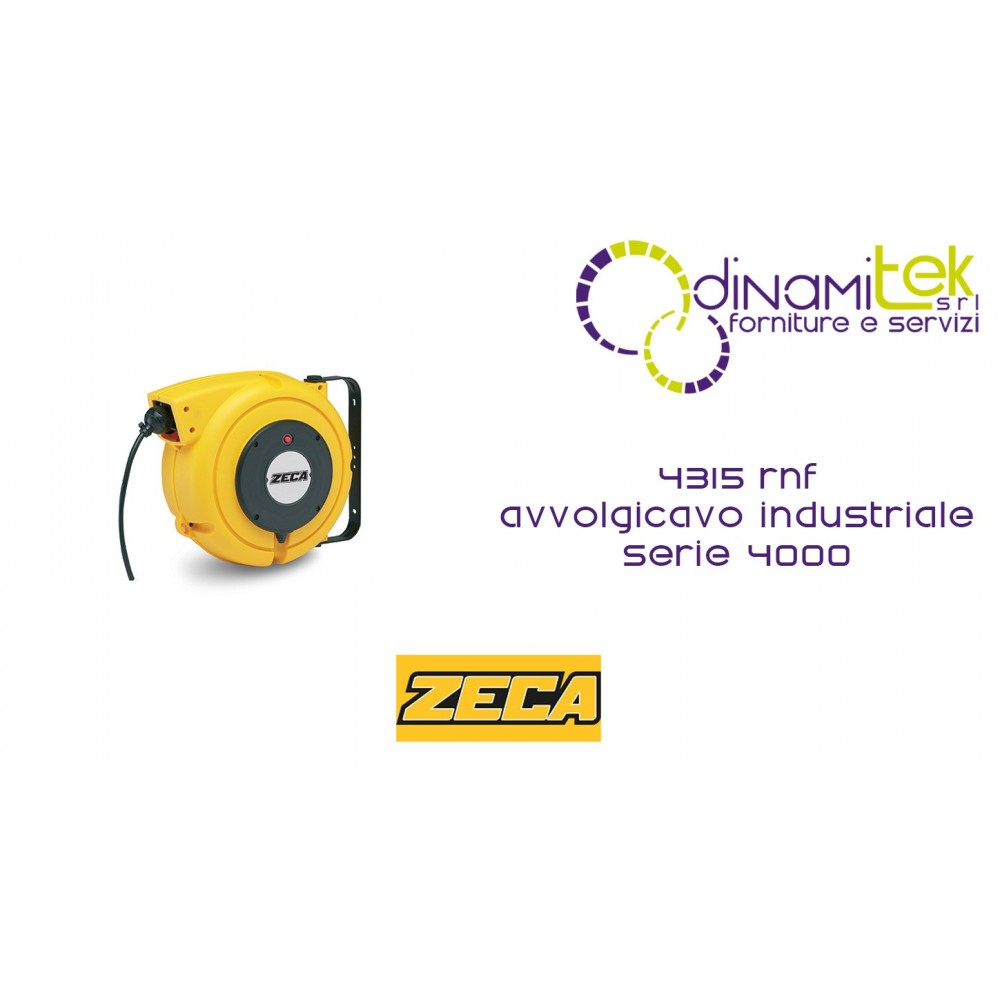

4315 RNF 4000 SERIES INDUSTRIAL CABLE REEL, 9+1 M, 1.5 MM² CABLE SECTION ZECA

Automatic spring-loaded industrial cable reel with 10 m of highly flexible H07 RN-F 3G1.5 mm² rubber cable and thermal protector Zeca Series 4000 Art. 4315 RNF.

The Zeca Art. 4315 RNF industrial cable reel (belonging to the 4000 Industrial Series) is the professional version equipped with an oil- and wear-resistant H07 RN-F neoprene rubber cable, designed for the safe distribution of electrical energy in workshops, construction sites and industrial environments exposed to mechanical stress.

  • 10 metres of H07 RN-F Neoprene Rubber Cable (3G1.5 mm²): flexible and highly resistant three-wire cable with a cross-section of 1.5 mm² (9 m wound on a reel + 1 m of free section) with an external diameter of 9.5 mm and a maximum insulated voltage of up to 750V.
  • Electrical rating up to 1.8 kW with thermal circuit breaker: delivers a power of 1.2 kW (5.21 A) with the cable wound and 1.8 kW (7.82 A) with the cable fully unwound at 230V, equipped with an integrated thermal protector against overloads.
  • Shockproof Structure with Rack Stop: high mechanical resistance plastic case with roller cable guide mouth and stop device that can be disengaged every 50 cm.
  • IP42 Protection Rating and 2.5 kV Insulation: patented Zeca collector with sliding brushes and double earth contact for optimal conduction continuity.
Shipping cost: Free for
174,69 €
Tax included

143,19 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Industrial Cable Reel Art. 4315 RNF

The Zeca Art. 4315 RNF automatic cable reel is the ideal solution for those requiring an industrial retractable extension cord with a neoprene rubber cable highly resistant to oils, hydrocarbons, and mechanical abrasion. Developed on the proven chassis of the 4000 Zeca Series, it guarantees maximum efficiency and protection of internal electrical contacts.

Compared to PVC versions, the H07 RN-F rubber sheath ensures flexibility and superior electrical insulation (max 750V). The internal spring-loaded retraction system is supported by a roller cable guide and a rack-type cable arrester, which can be disengaged if continuous cable tension is required. The built-in thermal circuit breaker ensures system and user protection by interrupting the power supply in the event of overheating.

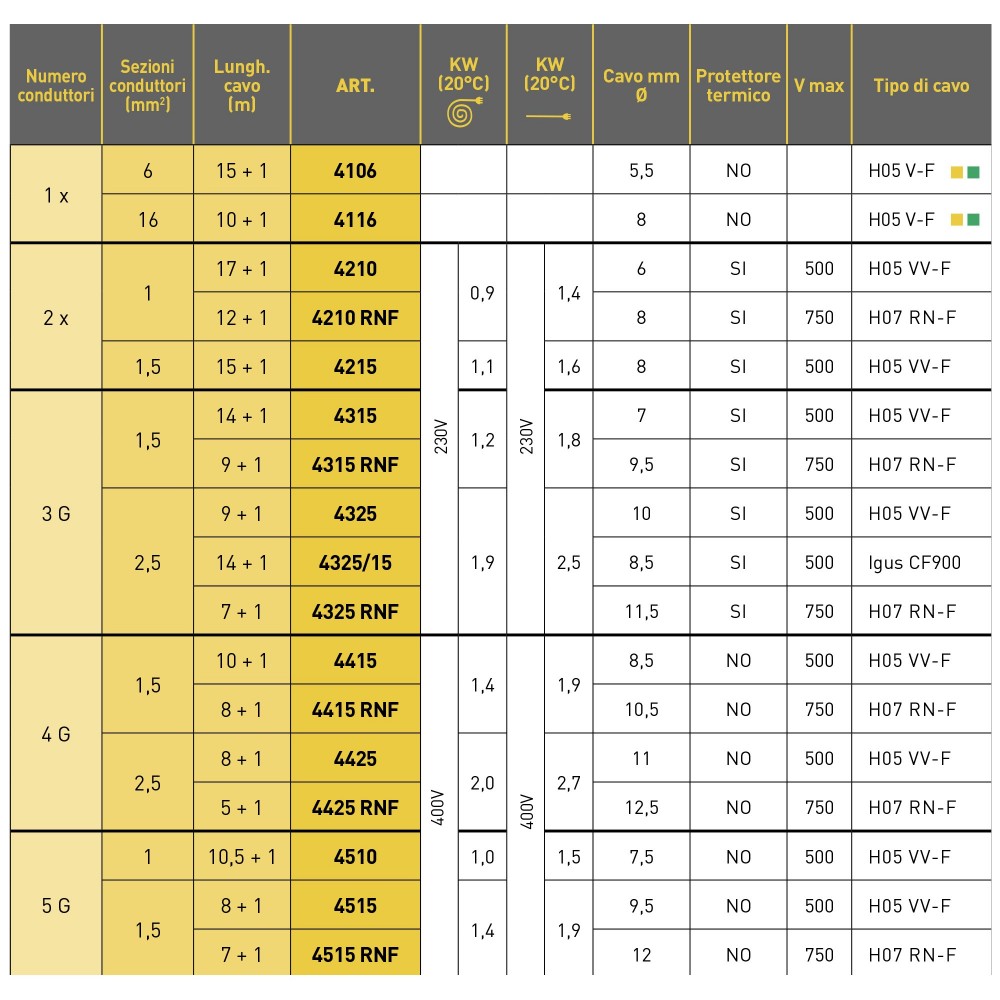

Detailed Technical Data Sheet

  • Product Code / Article: Art. 4315 RNF
  • Manufacturer / Brand: Zeca SpA
  • Series: 4000 Series / Industrial
  • Product Type: Automatic spring-loaded industrial cable reel with rubber cable
  • Degree of Protection: IP42
  • Total Cable Length: 10 meters (9 m on reel + 1 m power supply section)
  • Number of Conductors and Cable Section: 3 G x 1.5 mm²
  • Cable Type and Quality: Neoprene Rubber H07 RN-F
  • Cable Outer Diameter: 9.5mm
  • Nominal and Maximum Voltage: 230 V (V max 750 V)
  • Electrical Rating and Power (@20°C):
    • Wrapped cable: 1.2 kW @ 230V (5.21 A)
    • Unwound cable: 1.8 kW @ 230V (7.82 A)
  • Thermal Protector Circuit Breaker: Present (YES)
  • Collector Isolation Voltage: 2.5 kV
  • Construction and Functional Specifications:
    • Shockproof plastic structure
    • Roller cable guide mouth
    • Rack and pinion stop device every 50 cm (disengageable)
    • Double earth contact
    • Sliding contacts with collector ring and brushes
    • Adjustable wall bracket
  • Operating Ambient Temperature: -5 °C / +50 °C

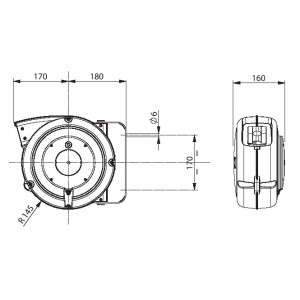

  • Packaging Dimensions and Weight: 335 x 310 x 185 mm / Weight 5.0 kg
  • Conformity and Directives: Directives 2014/35/EU, 2006/42/EC, 2011/65/EU, EN 61242, EN 60335-1, TÜV NORD Baumuster geprüft, CE
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
