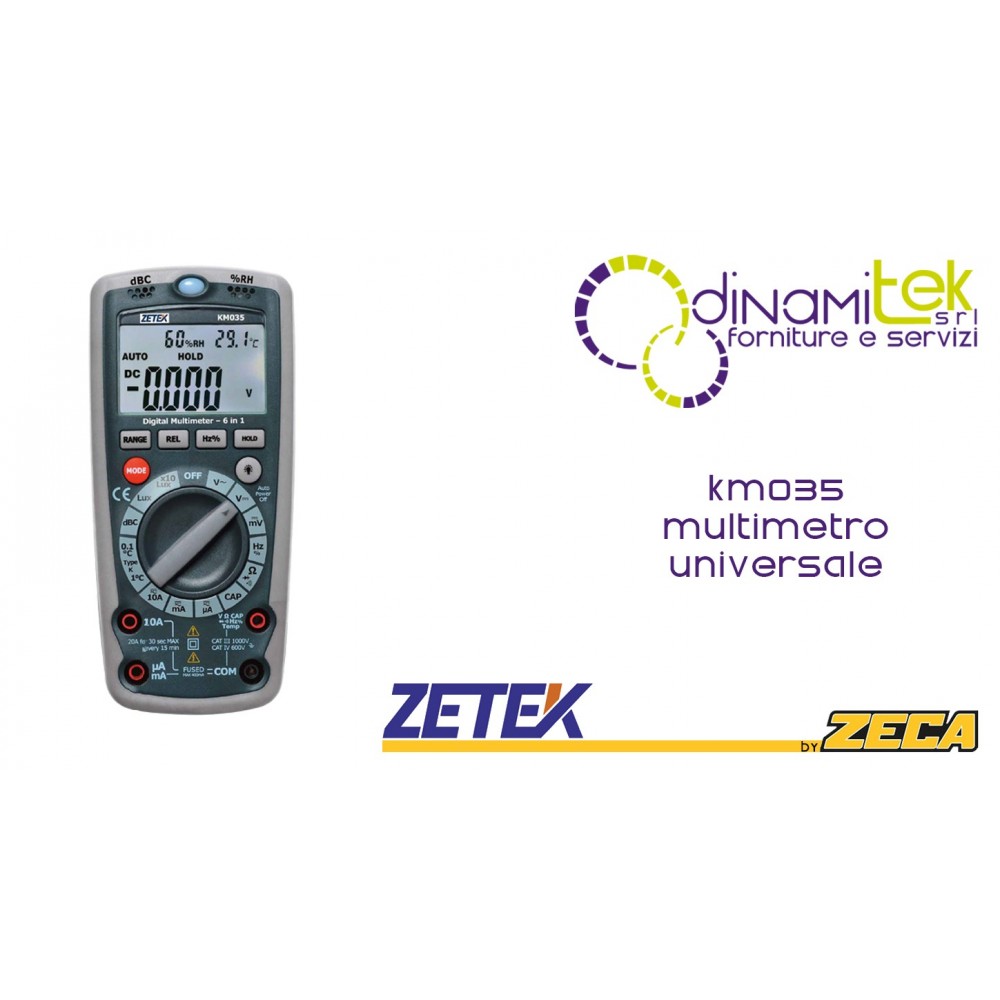

ZETEK KM035 UNIVERSAL MULTIMETER
KM035
UNIVERSAL MULTIMETER
Professional universal multimeter capable of performing many measurements that are not possible with traditional instruments.
Performs the following measurements:
Voltage (AC/DC) up to 250V
Current (AC/DC) up to 10A, suitable for controlling large appliances (up to 2300W at 230V)
Protected by internal fuse.
Resistence
Diode Test
Continuity test with acoustic indication
Temperature (-20°C/+1300°C) with thermocouple
Ambient temperature and humidity with internal sensors
Capacitance (capacitors)
Frequency and Duty cycle
Brightness (lux)
Sound intensity (dB, decibel)-
Autoranging, automatic selection of the measurement scale
Data Hold, locks the value on the display
Auto power off after 15 minutes
Display backlight
TECHNICAL CHARACTERISTICS
DC voltage 400mV, 4V, 40V, 100V, 250V
AC voltage 400mV, 4V, 40V, 100V, 250V
DC Current 400µA, 4mA, 40mA, 400mA,10A
AC Current 400µA, 4mA, 40mA, 400mA,10A
Frequency 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz
Resistor 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Continuity Relt;50Ω
Lux 4000 Lux, 40000 Lux
Capacitance 50nF, 500nF, 5µF, 50µF, 100µF
dB 35 / 100 dB
Humidity RH 33%RH / 99%RH
Diode Test Yes
Temperature -20° / +1300 °C
Value Lock Yes
NCV Yes
Auto power off 15 min
Power supply 1x9V LAMP not supplied
SPARE PARTS
KM030.010 – Tip Kit
KM030.015 – Thermocouple
