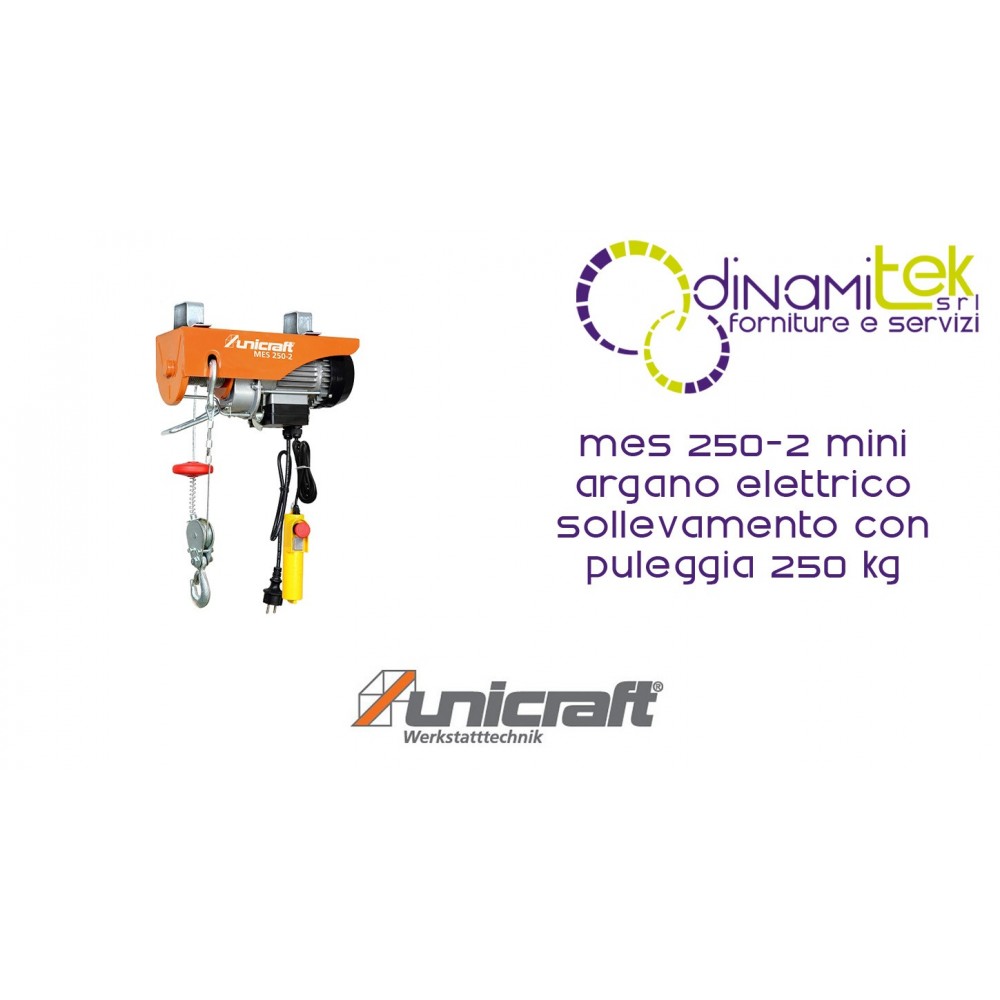

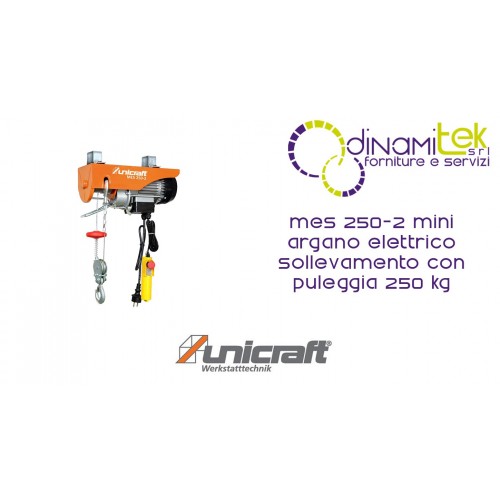

MINI ELECTRIC HOIST LIFTING PULLEY 250 KG MES 250-2 UNICRAFT Dinamitek 1
  • MINI ELECTRIC HOIST LIFTING PULLEY 250 KG MES 250-2 UNICRAFT Dinamitek 1

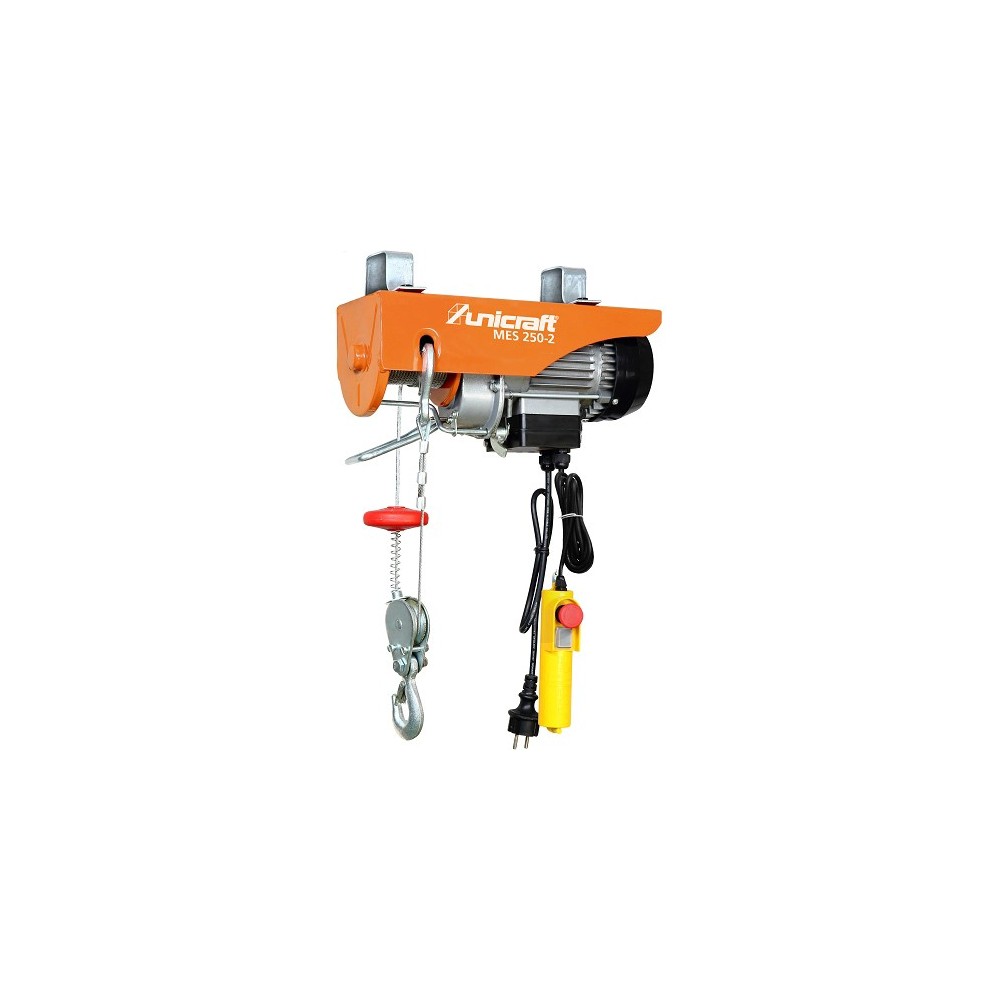

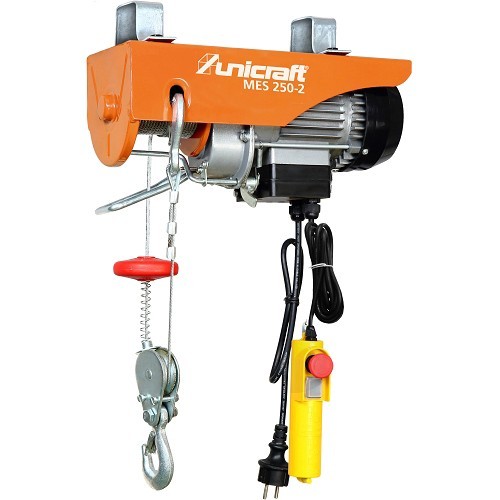

  • MINI ELECTRIC HOIST LIFTING PULLEY 250 KG MES 250-2 UNICRAFT Dinamitek 2

MES 250-2 MINI ELECTRIC WINCH LIFTING WITH PULLEY 250 KG UNICRAFT

The unicraft MES 250-2 mini electric winch (Code 619 8225) is the ideal solution for lifting loads up to 250 kg in domestic and professional environments. Featuring a compact design and a quick-release clamp system, this winch offers maximum versatility thanks to the included additional hook with pulley , which doubles the load capacity. Equipped with advanced safety systems such as an automatic limit switch and emergency switch, it ensures smooth and safe operation.

Shipping cost: €15.00 for
151,23 €
Tax included

123,96 € Tax excluded

Request availability

Practicality and Safety in Vertical Lifting

The unicraft MES 250-2 model is a single-phase electric wire rope hoist designed for reliability in a compact package. It's the perfect tool for moving packages, mechanical components, or equipment between different levels of a building or within a workshop, reducing physical effort and increasing positioning accuracy.

Main Features and Safety Devices

  • Pulley System: The scope of delivery includes an additional hook equipped with a pulley that allows the winch to be configured to lift loads of up to 250 kg , reducing the lifting speed for pinpoint control.
  • Protection and Insulation: The control switch is made with protective insulation compliant with IP 54 standards, making the machine resistant to dust and splashes of water.
  • Safety Limit Switch: Integrates a limit switch mechanism that automatically stops the motor when the rope reaches the maximum up or down limit, preventing damage to the structure or load.
  • Quick Installation: Thanks to the two included fixing clamps , the winch can be easily mounted on round bars or pipes (minimum recommended diameter 48 mm), even using the WSA series flag supports.

Total Control

The control panel is equipped with a clearly visible stop and emergency switch , which ensures immediate interruption of the operation in case of need.

Technical Reference Data

Characteristic Detail
Product Code 619 8225 (UNI6198225)
Lifting power (without/with pulley) 125 kg / 250 kg
Max lifting height (without/with pulley) 12 m / 6 m
Max lifting speed (without/with pulley) 10 m/min / 5 m/min*
Diet 230 V ~ 50 Hz
Rope diameter 3 mm
Degree of protection IP 54
Net weight 11 kg

Standard Equipment Included:

  • Additional hook with return pulley.
  • Kit of two clamps for fixing.
  • High tensile steel wire rope (3 mm).
  • Use and maintenance manual.
The reliability of German production: machine tools and equipment for safe load handling


MES 250-2
